Rev 1.6

Mellanox Technologies

B.3 QSFP Connector Pinout

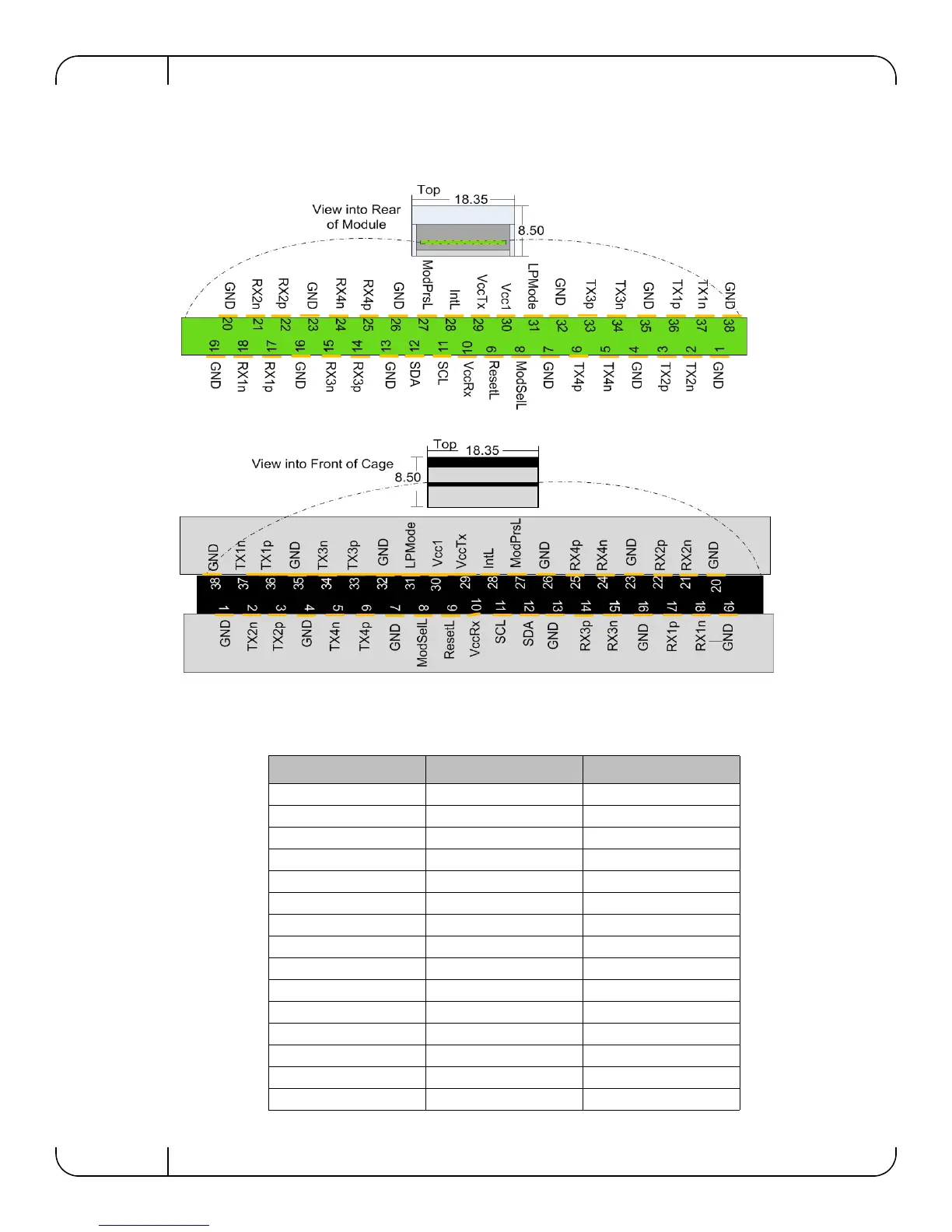

Figure 16: Connector and Cage Views

Table 25 - Connector Pin Name and Number to Signal Name Correspondence

Connector Pin Number Connector Pin Name Port A Signal Name

1 GND GND

2 TXN_2 Tx2n

3 TXP_2 Tx2p

4 GND GND

5 TXN_4 Tx4n

6 TXP_4 Tx4p

7 GND GND

8 ModSelL_Port0 ModSelL

9 ResetL_Port0 ResetL

10 VccRx

11 SCL SCL

12 SDA SDA

13 GND GND

14 RXP_3 Rx3p

15 RXN_3 Rx3n
