CX23
3-WAY CROSSOVER
Memphis Audio built a 50+ year legacy in the audio industry engineering the highest quality products to
produce the best possible listening experience for our fans and loyal supporters. To fully appreciate our
products we recommend taking the time to read and follow the instructions in this manual. As always, we
recommend all installations and service be performed by an authorized Memphis Audio dealer.

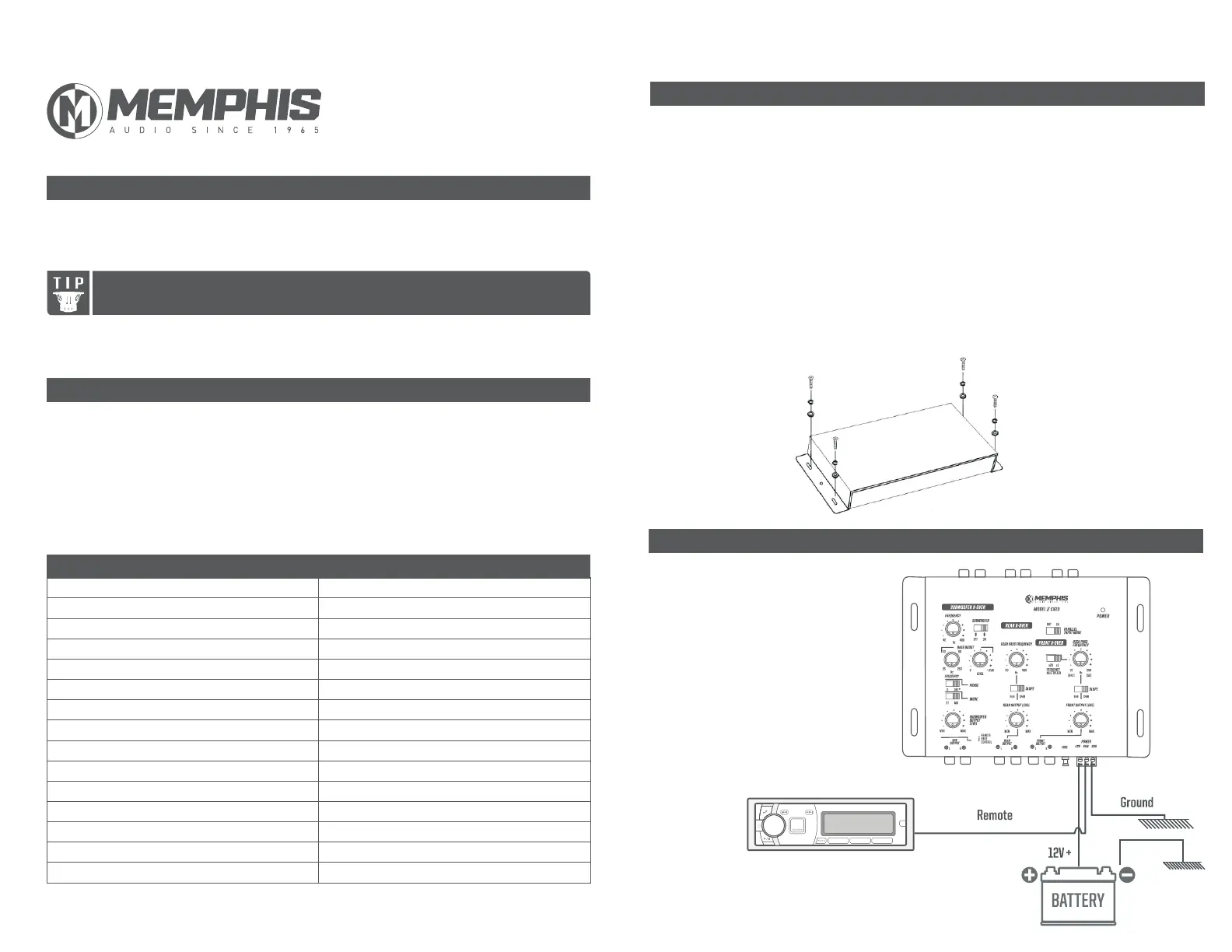

1. Find a mounting location for the CX23 Crossover
2. Be certain you are not bolting into any fuel/electric/hydraulic lines or any other surfaces that may cause damage to
your vehicle
3. Screw the CX23 to the mounting location.
4. Using the screw terminals provided, connect a minimum of 16AWG wire from the 12V+/GND/RMT terminals. The GND
connection should be the shortest amount of wire possible. The 12V+ wire should connect directly to the vehicles
battery and a 3A Fuse should be installed within 18” of the battery terminal. The RMT wire should connect to the turn-on
lead of your source unit.
5. Connect all line level inputs and outputs using high-quality RCA cables. Recheck all connections prior to powering up
Set all level controls to their minimum positions and set all crossover control switches level with your frequency
position.
6. Power on the system and slowly increase the volume to a moderate level.
7. Installation is complete, you can now use the controls on the device to set your systems audio to your desired levels.
For optimal performance, Memphis recommends using only Memphis Connection accessories. Outfitting
your system with properly sized Memphis Connection wire and accessories will dramatically boost your
listening experience and increase the durability of your Memphis Audio products.
Ready to Turn It Up? Read This First!
Installation
4-Channel Stereo Front/Rear and Subwoofer Systems
Features
Specifications
The CX23 crossover allows you to take complete control over your audio system from one convenient device. The
CX23 can process the signal prior to entering your amplifiers making it an ideal solution for multi-amplifier
systems. It also features an on-board line driver for improved signal.
FRONT CHANNEL X-OVER FREQ @ -3dB
REAR CHANNEL X-OVER FREQ @ -3dB
SUB CHANNEL X-OVER FREQ @ -3dB
CROSSOVER SLOPES
OUTPUT (SOURCE) IMPEDANCE
TYPICAL THD @ 1V IN/OUT
INPUT IMPEDANCE LOW LEVEL INPUTS
INPUT VOLTAGE FOR FULL OUTPUT
MAX OUTPUT VOLTAGE AT 1.0% THD+N
SUB CHANNEL PERFORMANCE (Phase/ EQ)
SIGNAL TO NOISE RATIO MAIN INPUT
INTERCHANNEL GAIN TRACKING
CHANNEL SUMMING FUNCTIONS/BLEND
CROSSTALK MAIN INPUTS MAIN
CURRENT DRAW
(x1) 36Hz - 370Hz (x10) 830Hz - 9.2kHz
38Hz - 395Hz
59Hz - 255Hz
Selectable -6 or -12dB
105Ω
0.004%
10K ohms
5.1V
11.1V Font / Rear 7.1V Sub
Phase: 180° Switch / 25Hz - 100Hz + 12dB
-112.8dB
Within 0.3dB
Selectable mono output on sub channel
-52.9dB
0.65A
TAPPING SCREW
SPRING WASHER
PLAIN WASHER
12V+ Connect to car battery or other power source
REMOTE: Connect to remote activating 12V DC Wire
GND: Connect wire to car chassis for ground
connection
FRONT AND REAR CHANNEL
• High Pass Frequency Selector 40Hz to 400Hz
• Frequency Multiplier x 1 or x 20
• Crossover Slope 6dB/Octave or 12dB/Octave
• Signal Gain Control
• Parallel Input Switch
SUBWOOFER CHANNEL
• Subwoofer Input Switch
• +12dB Bass Boost
• Phase Shift Switch
• Stereo/Mono Switch
• Output Level Control
• Exclusive Remote Subwoofer Level Control
• Low Pass Frequency Selector 35Hz to 250Hz
• Bass Boost Frequency Selector 25Hz to 250Hz
