Merax MS199769 - Page 36

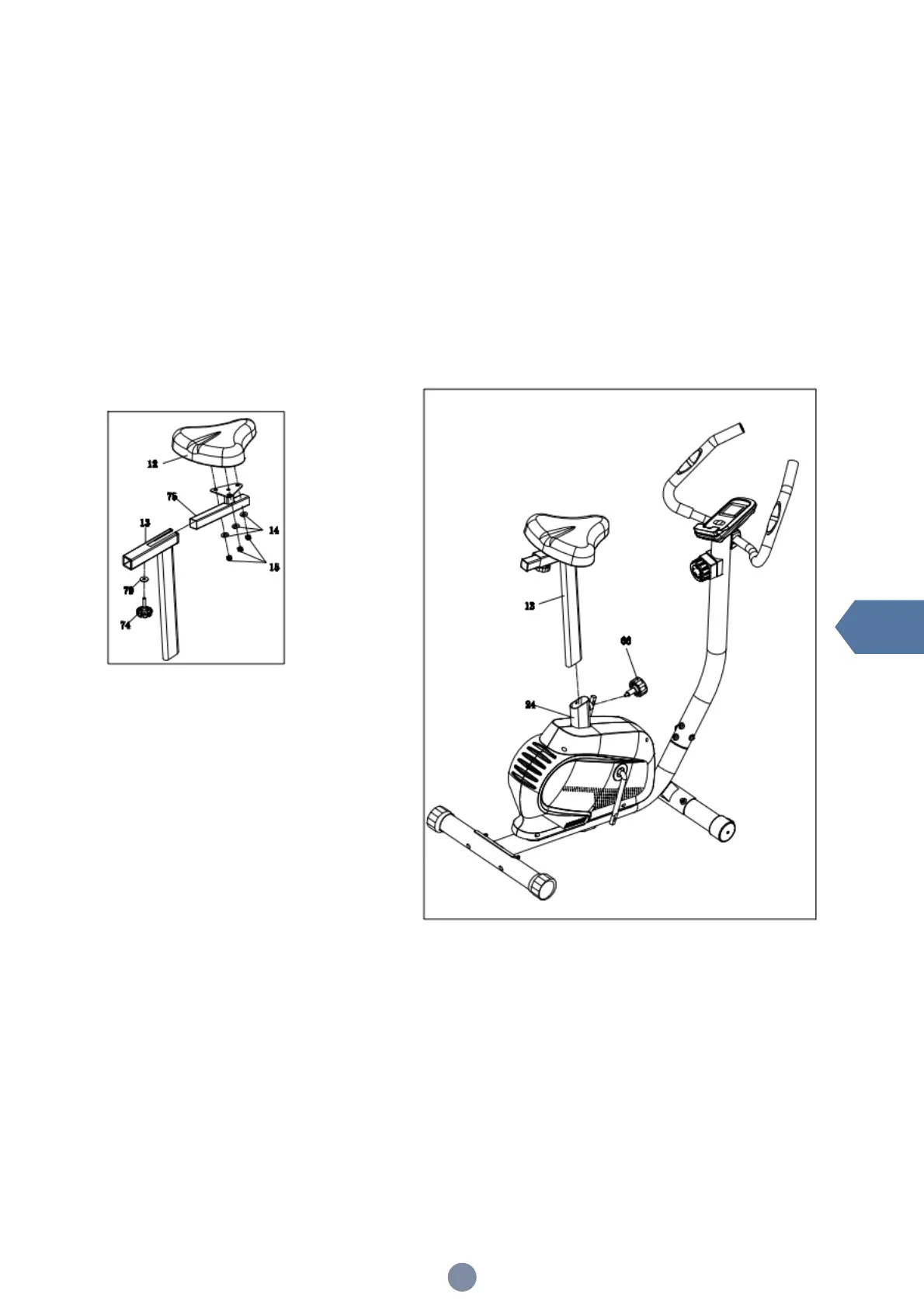

Step 5
1. Lock Saddle (12) into Adjustable Horizontal Tube (75) by using Flat Washer (14) and
Nylon Nut (15), then lock Adjustable Horizontal Tube (75) into Saddle Tube (13) by using
Flat Washer (79) and Pole (75).
2. Insert Saddle Tube (13) into Main Frame (24), then lock it by using Knob (66).
36
EN
