Section 5 - Maintenance
Page 76 90-8M0074347 eng OCTOBER 2012

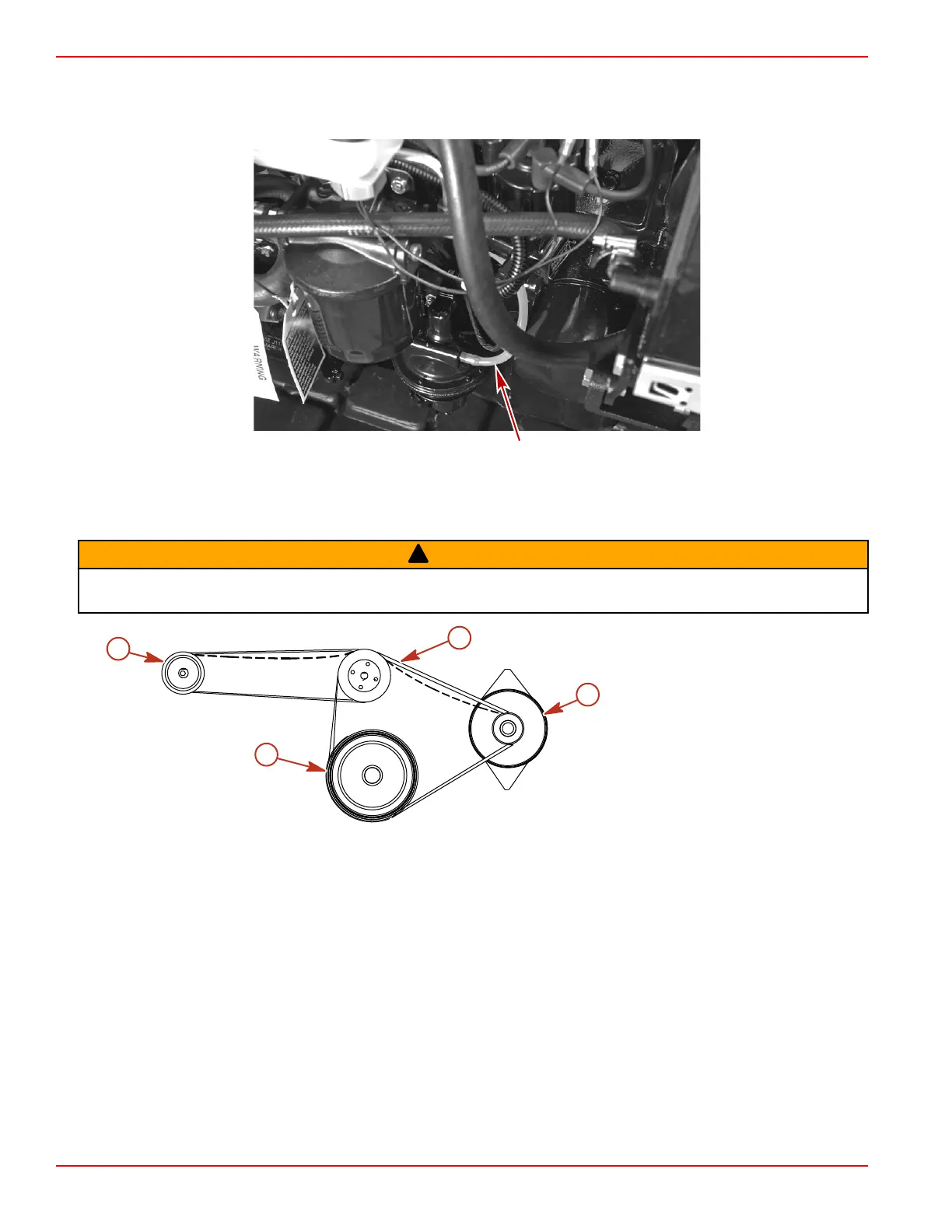

Inspecting the Fuel Pump Sight Tube
The engine fuel pump sight tube gives you visual evidence of a fuel leak in the fuel pump diaphram. If fuel is ever visible in the
tube, see your authorized Mercury MerCruiser dealer to replace the fuel pump.
Fuel pump sight tube
Drive Belts
!
WARNING
Inspecting the belts with the engine running may cause serious injury or death. Turn off the engine and remove the ignition
key before adjusting tension or inspecting belts.
a - Power steering pump pulley
b - Water circulating pump pulley
c - Crankshaft pulley
d - Alternator pulley
Checking
1. Check the drive belt for excessive wear, fraying, glazed surfaces, or cracks.
NOTE: Minor, transverse cracks (across the belt width) may be acceptable. Longitudinal cracks (in the direction of belt
length) that join transverse cracks are not acceptable.
2. Inspect the drive belt for a proper tension of 6 mm (1/4 in.) deflection. Check the belt tension by applying moderate thumb
pressure on the belt at the longest distance between the two pulleys.
b
d
c
a
7170
