224
[RE06400(ALL)02/95]
one third page art:0000392-B

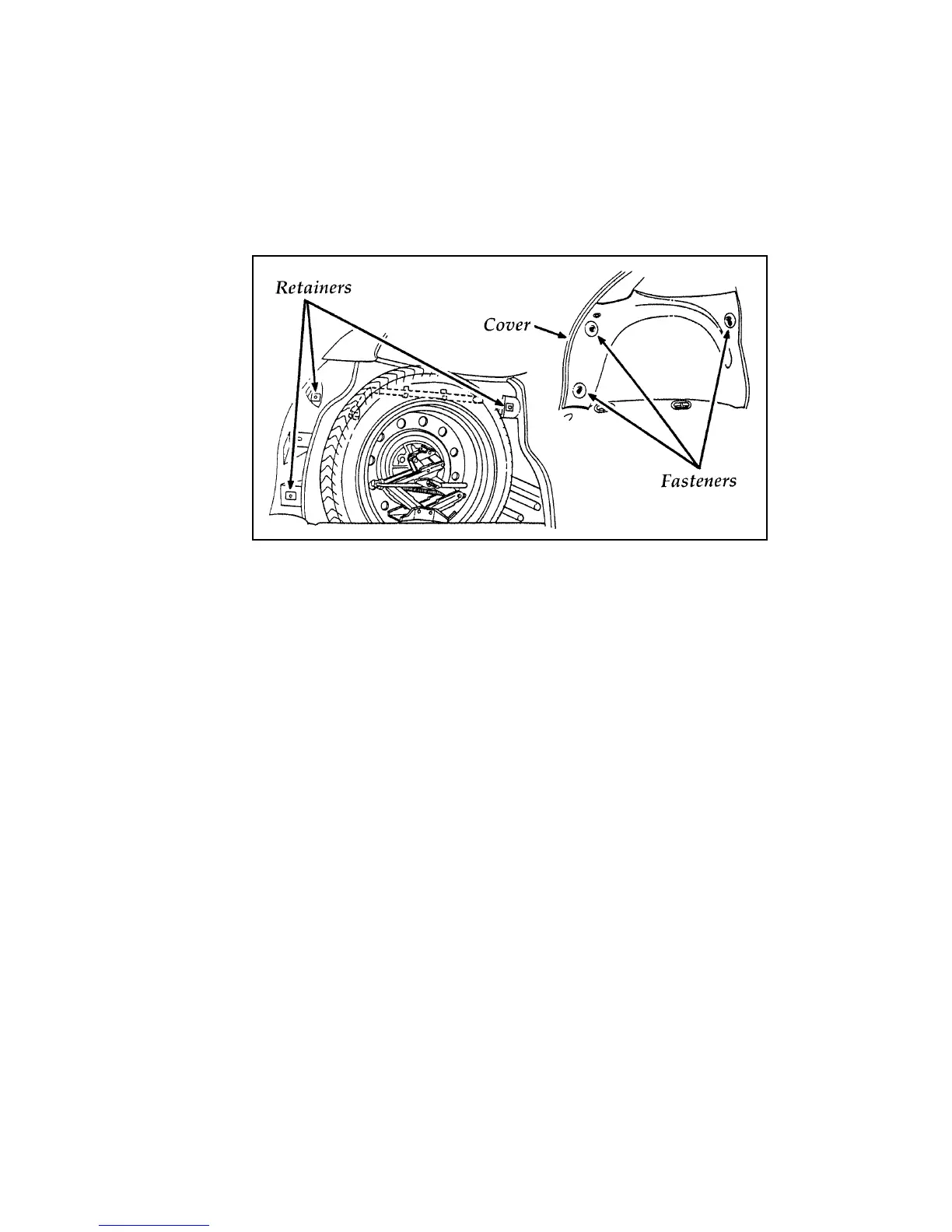

The temporary spare tire in the wagon
[RE06700(ALL)11/94]
To remove the cover for the temporary spare
tire in the wagon:
[RE06800(ALL)04/95]
1. Twist the three fasteners 90 degrees into a
vertical position.
[RE06900(ALL)02/95]
2. Lift the the cover to disengage the three
retainers.
[RE07000(ALL)05/94]
3. Pull the front of the cover out slightly and
remove the cover by sliding it toward the
front of the vehicle.
[RE07100(ALL)01/89]
4. Lift out the spare tire, jack, and lug wrench.
%
*
[RE07400(ALL)03/95]
Preparing to Change the Tire
*
[RE07500(ALL)05/94]
You should only raise your vehicle with a jack
properly placed at the front or rear jacking
points.
*
[RE07600(ALL)03/95]
1. Make sure that your vehicle will not move
or roll. Put the gearshift in P (Park). Set the
parking brake and block the wheel that is
diagonally opposite the tire that you are
changing.
