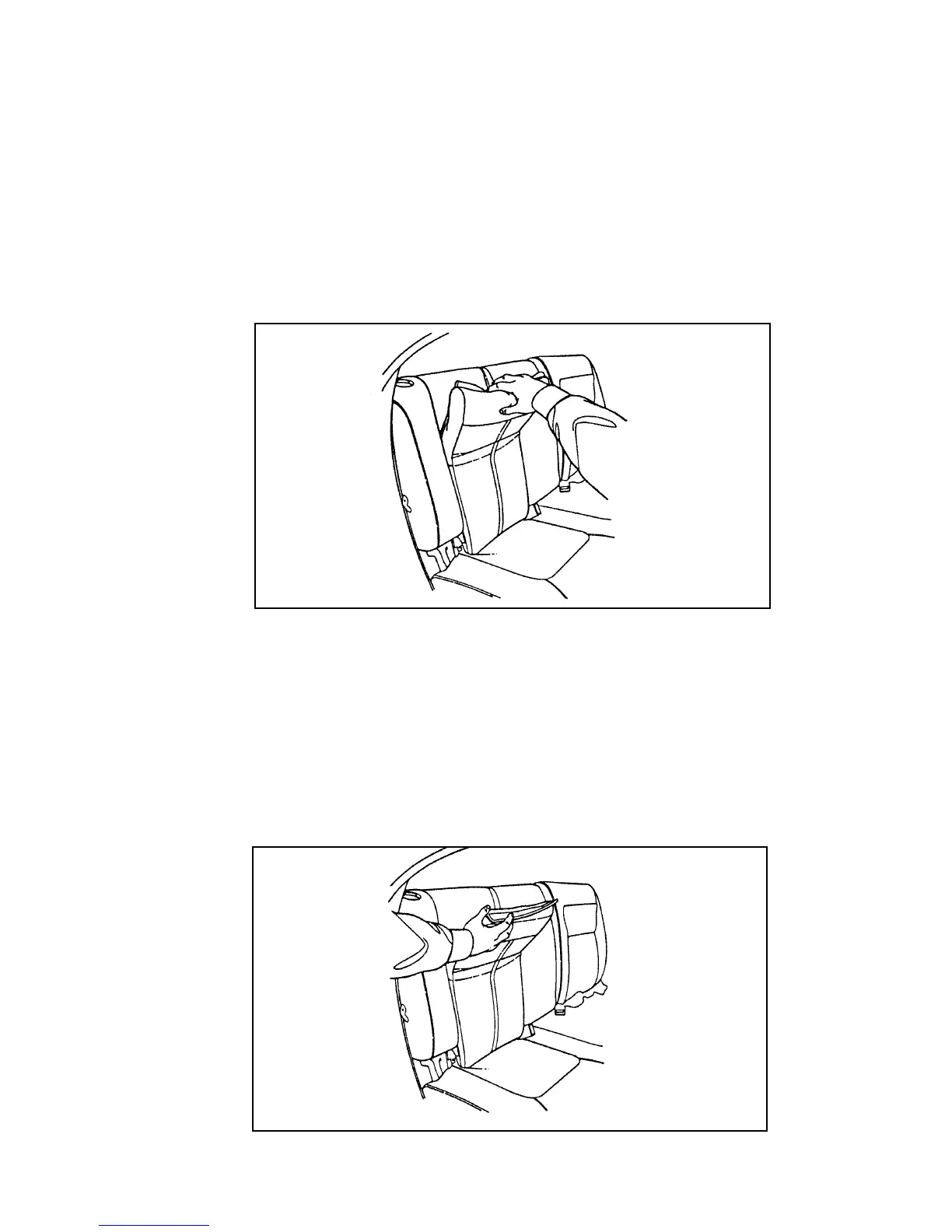

1. Pull and release flap from top of seatback.
See Figure 1.
[SR27630(ALL)12/95]
one third page art:0001500-A
Figure 1: Releasing the flap
[SR27651(ALL)04/95]
2. Grasp the child seat at the top of the
seatback and pull the top forward to release
the latch. See Figure 2.
[SR27620(ALL)04/95]
NOTE: The child seat cannot be opened unless
the seatback is latched in the upright
position.
[SR27700(ALL)03/95]
one third page art:0001452-B
Figure 2: Releasing the latch
[SR27780(ALL)12/95]
3. Continue to unfold the child seat until it
rests on the seat as shown in Figure 3.
