57
[SR28550(ALL)04/95]
9. Pull the shoulder belts out to ensure that the
crotch safety belt buckle is securely fastened
and the retractor is locked. Refer to Figure 8.
[SR28575(ALL)04/95]
half page art:0001455-B

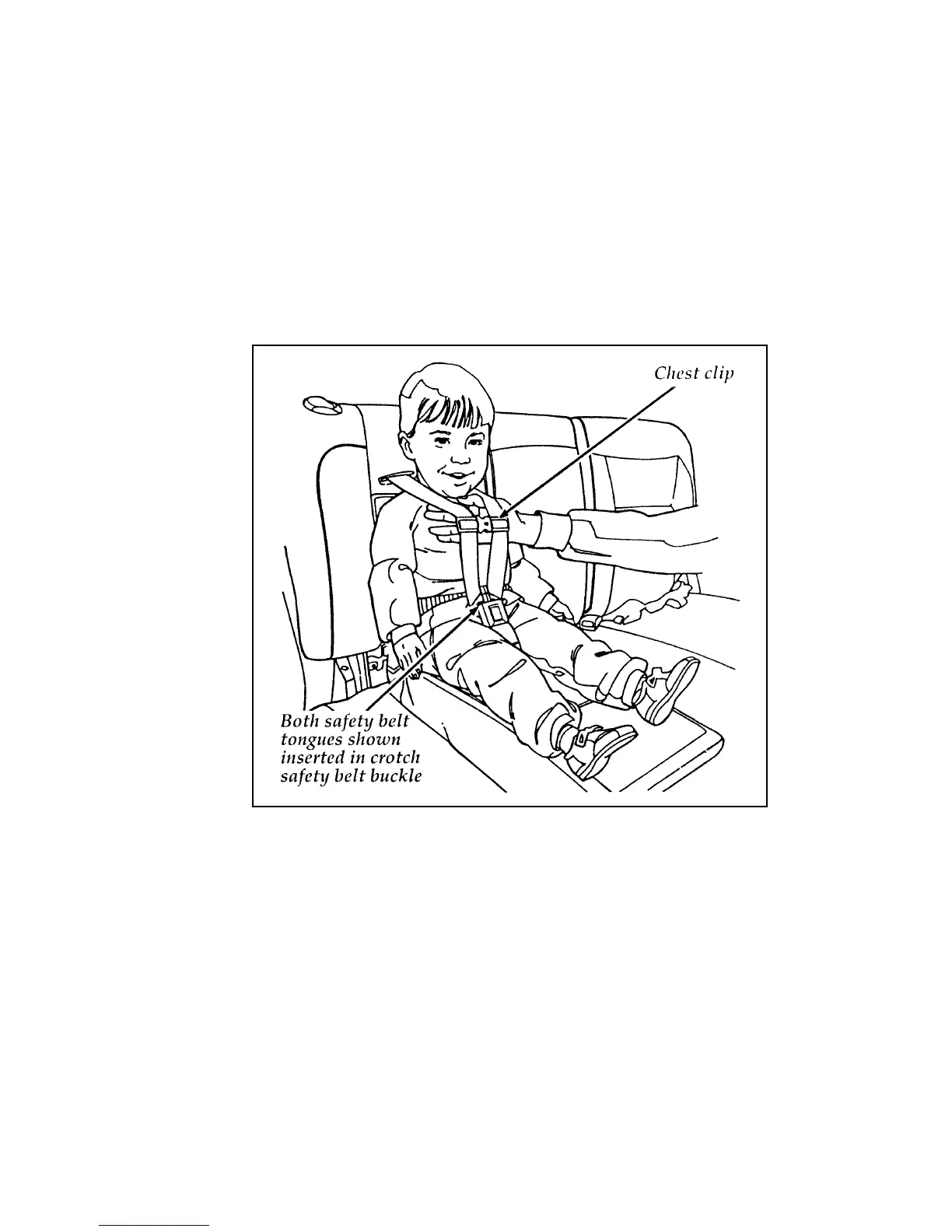

Figure 8: Checking for securely latched buckle and locked
retractor
[SR28600(ALL)04/95]
10. If the belts become too tight, unbuckle the
crotch safety belt buckle allow belts to
retract, then reinsert both belt tongues.
[SR28650(ALL)04/95]
To remove the child from the built-in child
seat:
[SR28700(ALL)04/95]
1. Squeeze the tabs on the top and bottom of
the chest clip and pull the halves apart to
open the chest clip. Refer back to Figure 7.
[SR28750(ALL)04/95]
2. Press the release button on the crotch safety
belt buckle.
[SR28800(ALL)04/95]
3. Slide the shoulder belts off the child’s
shoulders and remove the child. Refer back
to Figure 5.
