98
[IP05525(ALL)02/95]
one third page art:0001286-D
The display window
[IP05625(ALL)02/95]
The display window will indicate the selected
temperature and the operating function you
have chosen: AUTO or one of the six manual
overrides. It will also indicate manual control of
the fan speed with the word FAN,
H
, and dots.

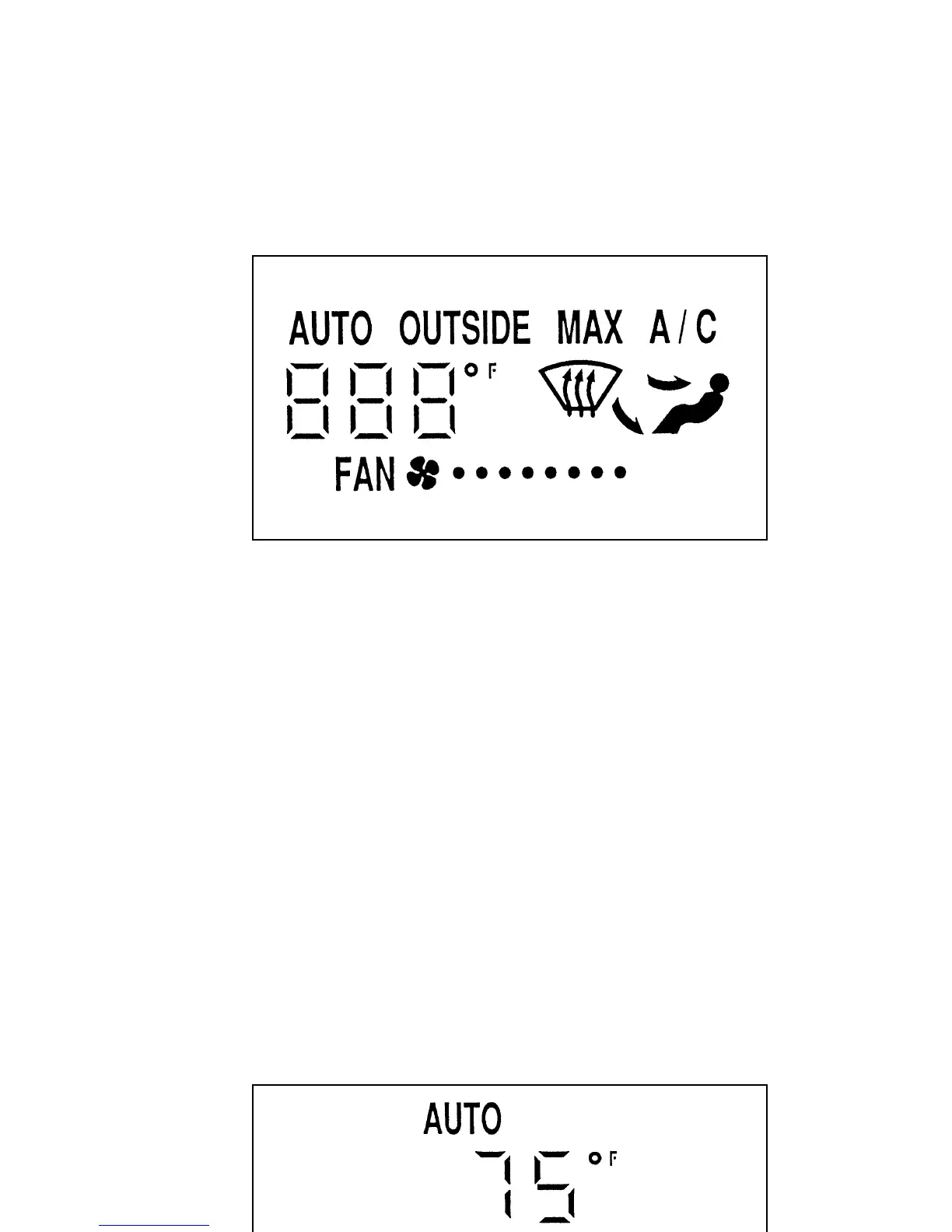

The display window with all possible displays
and their positions are shown here. Normally
not all are shown at the same time but are
included here to familiarize you with the names
and symbols.
*
[IP05725(ALL)01/95]
Automatic operation
[IP05825(ALL)03/95]
Press the AUTO button and select the desired
temperature. The selected temperature and
AUTO will be shown in the Display window.
The EATC will automatically heat or cool to
achieve the set temperature. Under normal
conditions, your EATC will need no additional
attention.
[IP05925(ALL)02/95]
one inch art:0001287-B
The AUTO temperature display
