Roadside emergencies
110
Power distribution box

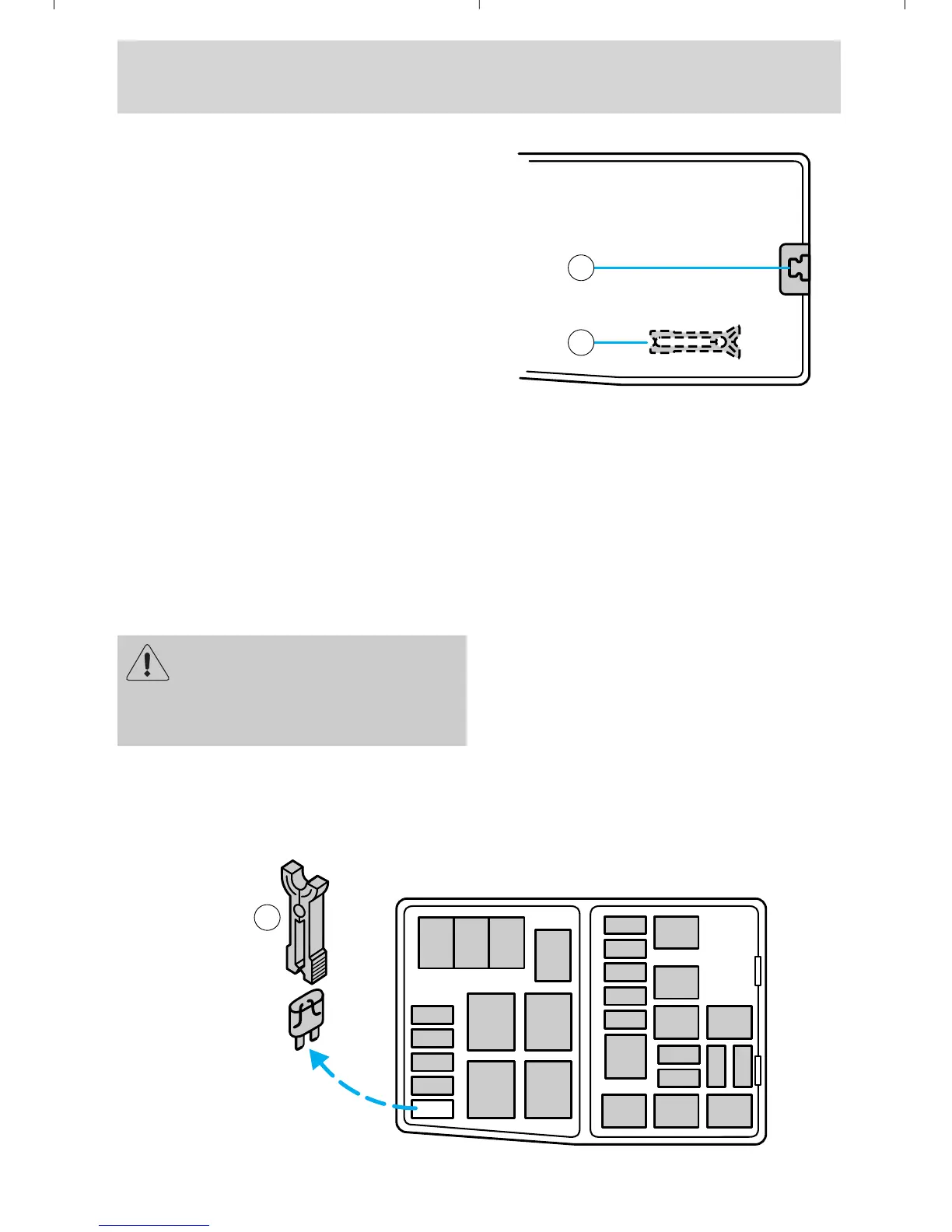

To check or replace a fuse or a
relay, remove the cover of the fuse
box in the engine compartment by
releasing the latch (1) and lifting
up.
A blown fuse can be identified by a
break in the wire. Use the fuse
puller (2) attached to the cover of
the power distribution box to
change a fuse.
All fuses are a push fit.
Five reserve fuses with different
current ratings are attached to the
inside cover of the power
distribution box in case of
emergency fuse replacement.
2
R10
R9
15 16
R11
10
18
17
R8R7
11 12 13 14
R6
R4
R3
3
2
1
R1 R2
R5
D1
4 5 6 7 8
9
Blown fuse
Always replace the cover to
the Power Distribution Box
before reconnecting the battery or
refilling fluid reservoirs.
