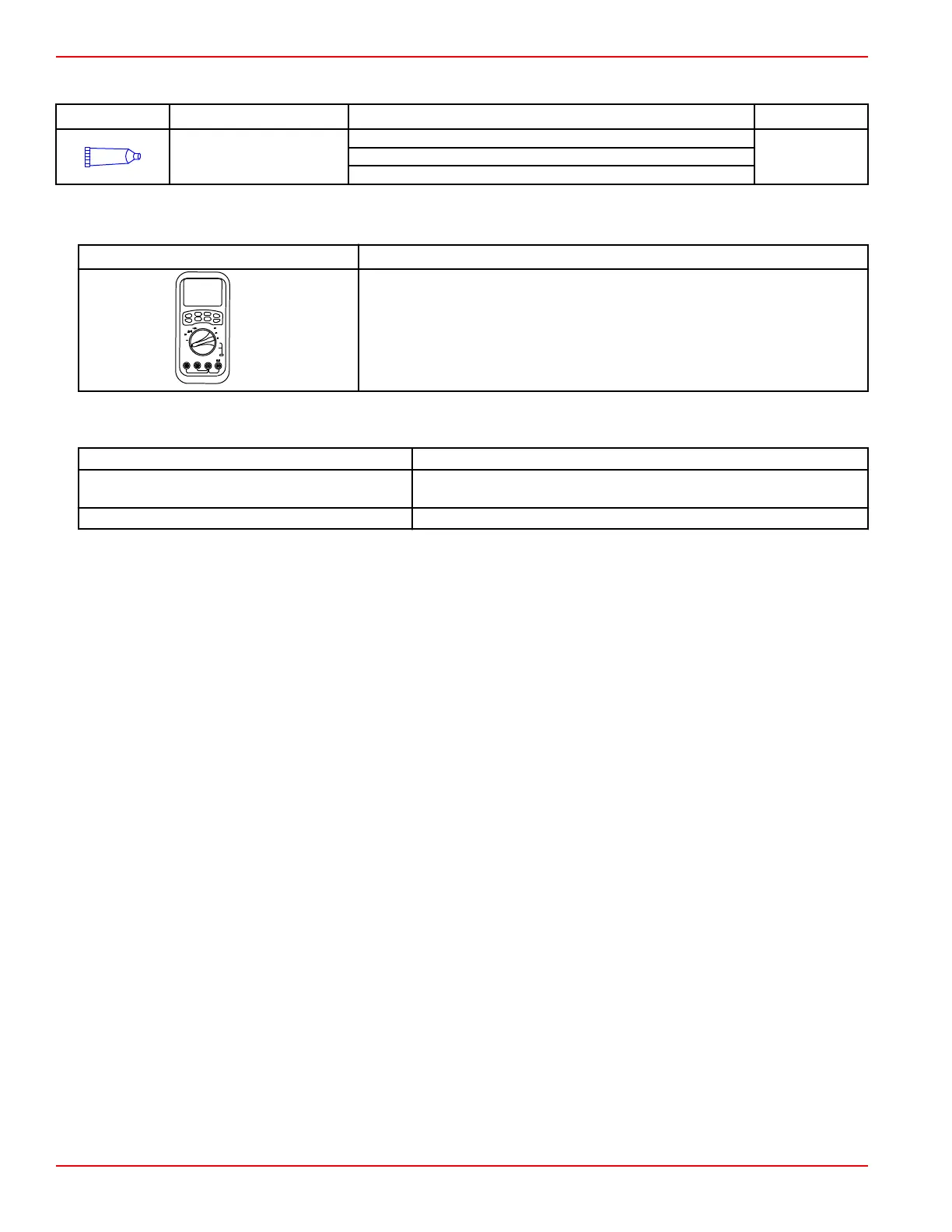

Lubricant, Sealant, Adhesives
Tube Ref No. Description Where Used Part No.
114
Power Trim and Steering
Fluid
Power tilt system
Lubrication of O-rings
Lubrication of power tilt O-rings
92-858074K01
Special Tools
DMT 2004 Digital Multimeter 91‑892647A01
A
C O
M
m
A
V H z
mV
V
H z TEMP
m A
A
IG
IP
OFF
H z
TEMP
4516
Measures RPM on spark ignition (SI) engines, ohms, amperes, AC and DC
voltages; records maximums and minimums simultaneously, and accurately
reads in high RFI environments.
Power Tilt Specifications
Parameter Specification
System fluid
Power Trim and Steering Fluid or
Automatic Transmission Fluid (ATF) (Type Dexron III)
Electric motor ‑ Maximum current draw 35 A
General Troubleshooting
For general troubleshooting information, including connecting and using the CDS G3 diagnostic tool, refer to Section 1E ‑
General T
roubleshooting.
Power Tilt ‑ General Information
• The power tilt system consists of an integral unit which contains an electric motor, hydraulic pump, fluid reservoir, and a tilt
cylinder.
• The remote control (or tiller handle) has a switch that tilts the outboard up for trailering or down for operation.
• At low idle speed, the outboard can also be tilted to permit shallow water operation.
• The outboard cannot be trimmed at speeds above low idle.
Power Tilt
Page 5B-2 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
