Engine Component Identification ‑ Manual Start Model

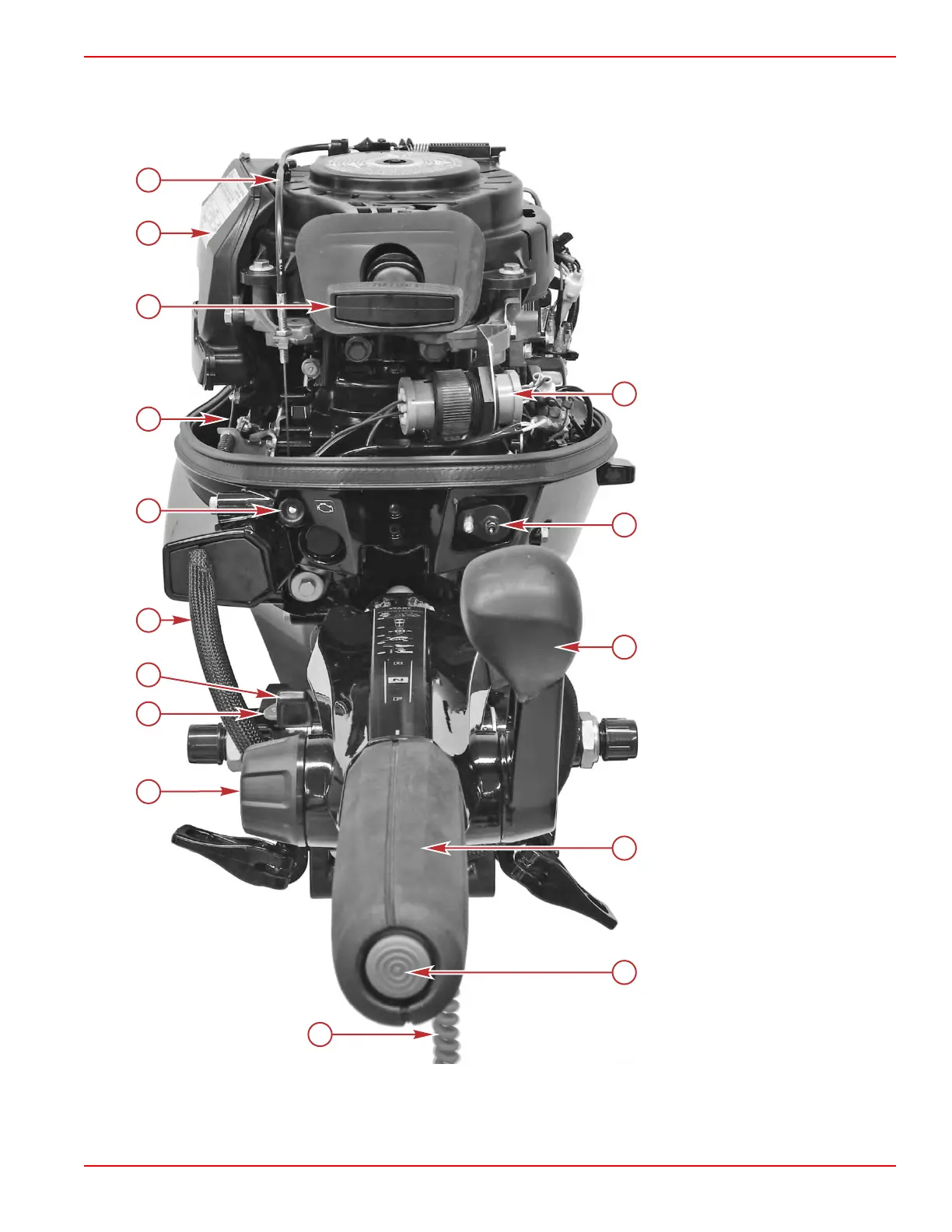

15/20 FourStroke EFI Manual Start Front View
Tiller model shown
a - Warning light
b - Throttle cable (one of two)
c - Recoil handle
d - Air box
e - Recoil interlock cable
f - Engine harness 14‑pin connector
g - Fuel line connector
h - Shift lever
i - Throttle control
j - Stop (engine off) button
k - Lanyard
l - Throttle friction knob
m - Copilot handle
n - Tiller handle tilt lock lever
o - Control cable from tiller handle
General Information
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 1C-3
