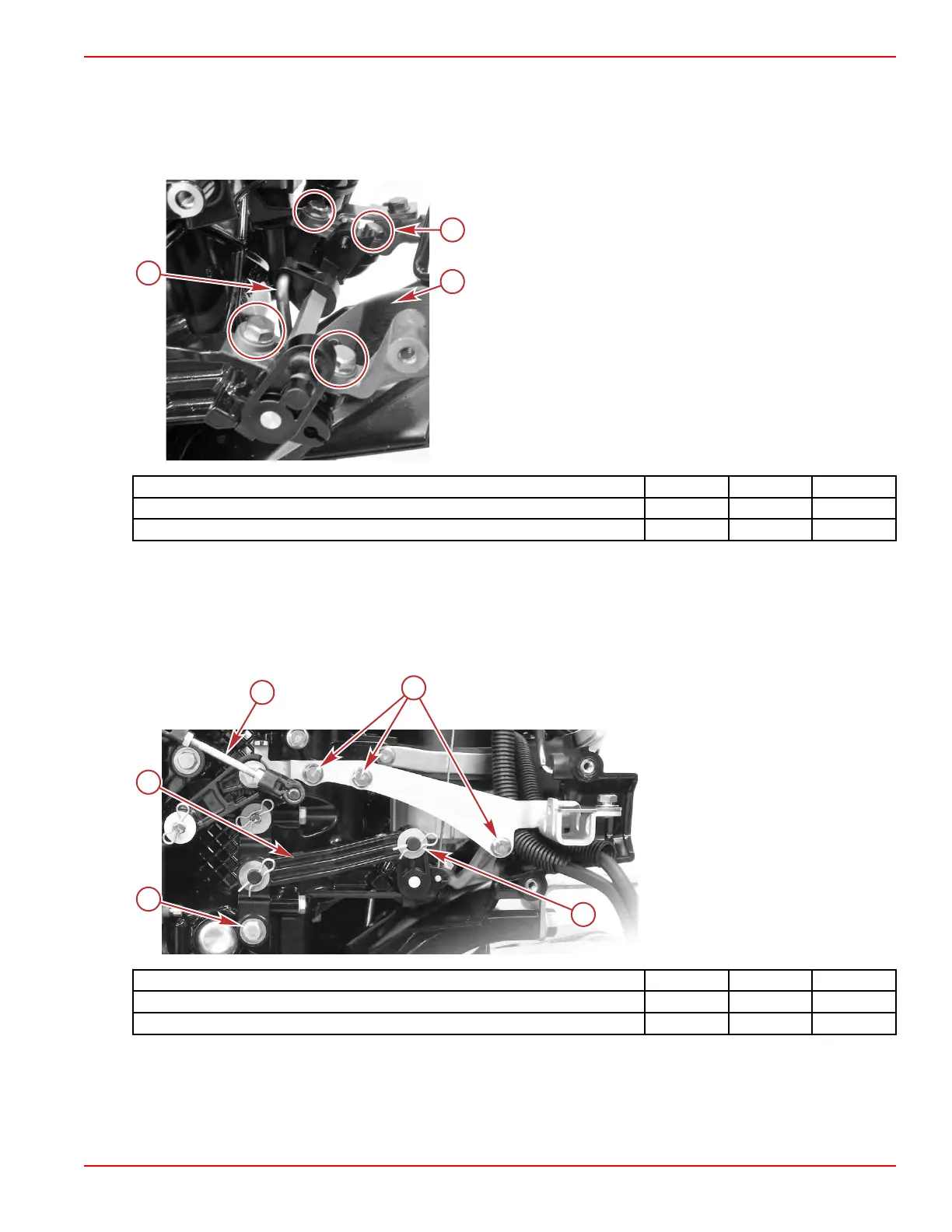

3. Install the shift shaft lever, being certain to engage the vertical shift shaft.
4.
Secure the shift shaft lever with two brackets and four screws.
5. Ensure that the front cowl properly engages the midplate and the vertical shift shaft boot.
NOTE: If the front cowl was removed from the shift lever brackets, install it now.
6. Tighten the four shift shaft lever bracket screws (two per bracket) and the shift detent screw to the specified torque.
a - Shift shaft lever bracket screws (4)
b - Front cowl
c - Vertical shift shaft
Description Nm lb‑in. lb‑ft
Shift shaft lever bracket screws (4) 6.0 53.1 –
Shift detent screw 6.0 53.1 –
7.
Install the starter motor. Refer to Section 2B ‑ Starter Motor Installation.
8. Install the shift link, using one screw, two washers (one each side), and one bushing. Tighten the screw to the specified
torque.
9. Attach the shift link to the shift lever using a retaining clip and washer.
10. Install the throttle and shift bracket. Tighten the three screws to the specified torque.
11. Install the throttle link.
a - Throttle link
b - Throttle and shift bracket screws
(3)
c - Retaining clip and washer
d - Screw, two washers, and bushing
e - Shift link
Description Nm lb‑in. lb‑ft
Throttle and shift bracket screws (3) 6.0 53.1 –
Shift link screw 6.0 53.1 –
Throttle and Shift Linkage
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 7A-13
