Lubricants, Sealants, Adhesives
Tube Ref No. Description Where Used Part No.
7
Loctite® 271 Threadlocker
Exposed threads of the pivot screw
Tiller handle mounting screws
92-809819
95
2-4-C with PTFE
Throttle cable end barrels, pulley face, and pulley O.D.
Shift handle bushings
Shift cable input rod and eyelet
Throttle shaft bracket I.D.
Friction knob shaft threads
Tiller handle plastic bushing I.D.
Unthreaded portion of the shift cable output rod
Throttle cable anchors
92-802859A 1

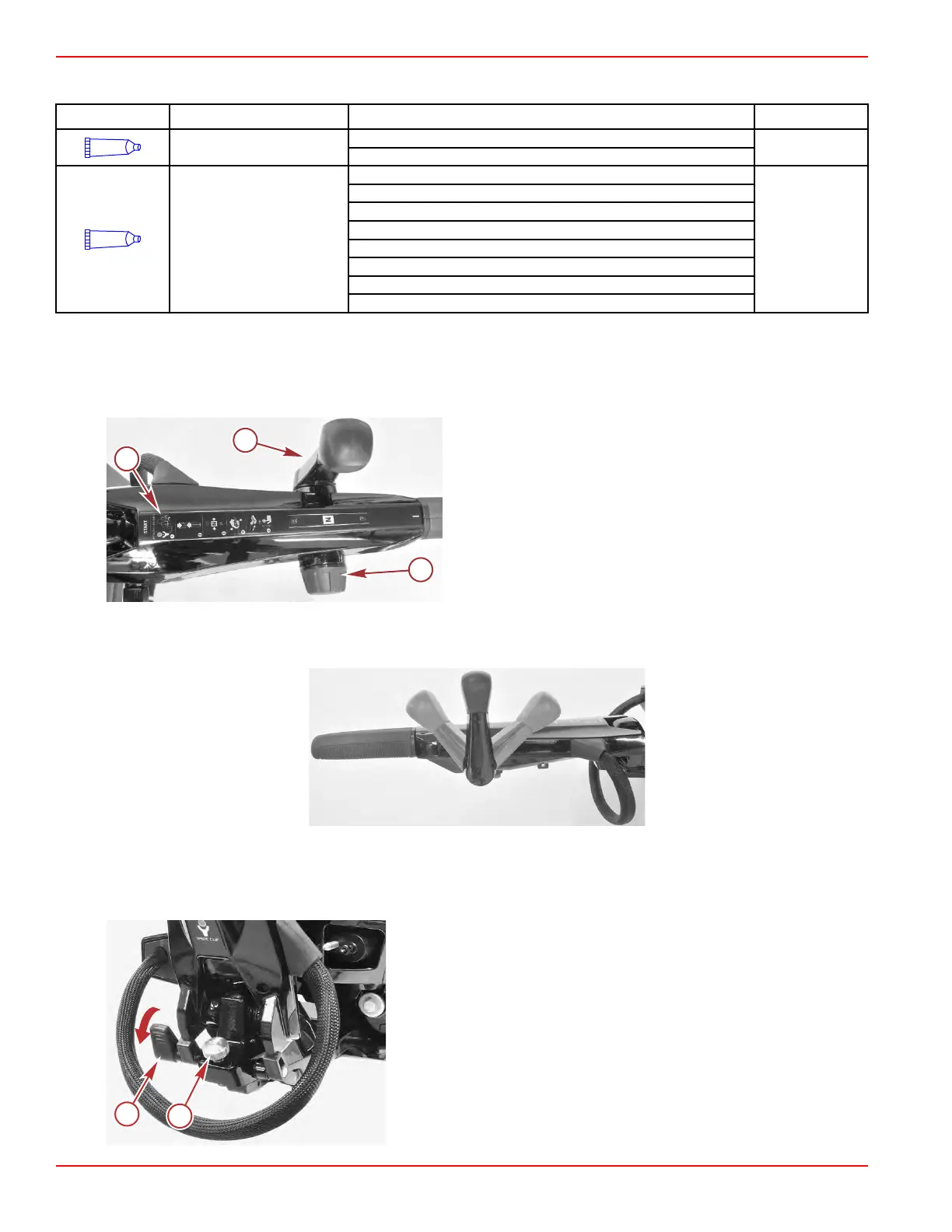

Tiller Handle Features
•
A decal on the tiller handle provides quick reference for starting the engine.
• The friction knob allows the user to increase friction on the tiller throttle shaft, to hold the throttle at a desired speed, or
decrease friction to allow the throttle to automatically return to idle when the grip is released.
a - Quick reference decal
b - Shift lever
c - Throttle grip friction knob
• The shift lever has three positions to control engine operation: forward (F), neutral (N), and reverse (R). A shift detent helps
the operator locate the neutral position.
• The tiller handle can be tilted up for convenient handling during transportation or storage.
•
Push the lock release lever down to allow the tiller handle to be lowered.
• Turn the adjustment knob to raise or lower the tiller handle in its operating position.
a - Tiller lock release lever
b - Tiller handle adjustment knob
Tiller Handle
Page 7B-2 © 2018 Mercury Marine 90-8M0125265 eng NOVEMBER 2017
