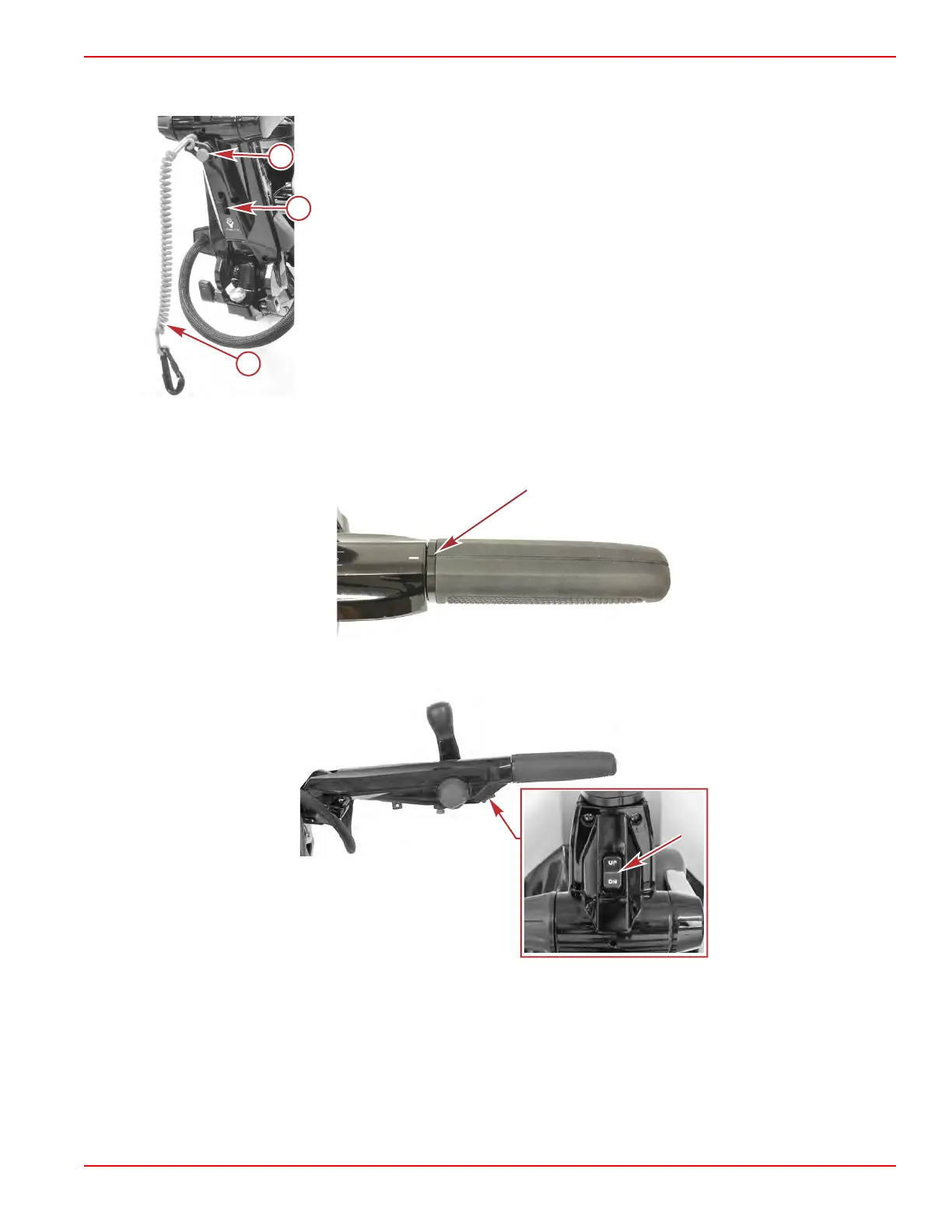

Tiller handle yaw can be adjusted to change the angle of the handle to the engine. Refer to T
iller Handle Yaw.
• The tiller handle is equipped with a lanyard stop switch and a spare lanyard stop switch clip.
a - Lanyard stop switch
b - Spare lanyard stop switch clip
c - Lanyard
• A stop switch at the end of the tiller handle allows the operator to easily stop the engine.
•
Align the throttle grip with the idle mark on the tiller handle when starting or shifting into or out of gear. Twist the throttle
grip to increase the engine speed. The tiller handle can be configured for right‑hand or left‑hand throttle operation; refer to
Throttle Cable Installation.
63086
• Models with power tilt have a tilt switch located on the underside of the tiller handle.
63906
a
b
c
63083
Tiller Handle
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 7B-3
