Engine Component Identification ‑ Electric Start Model

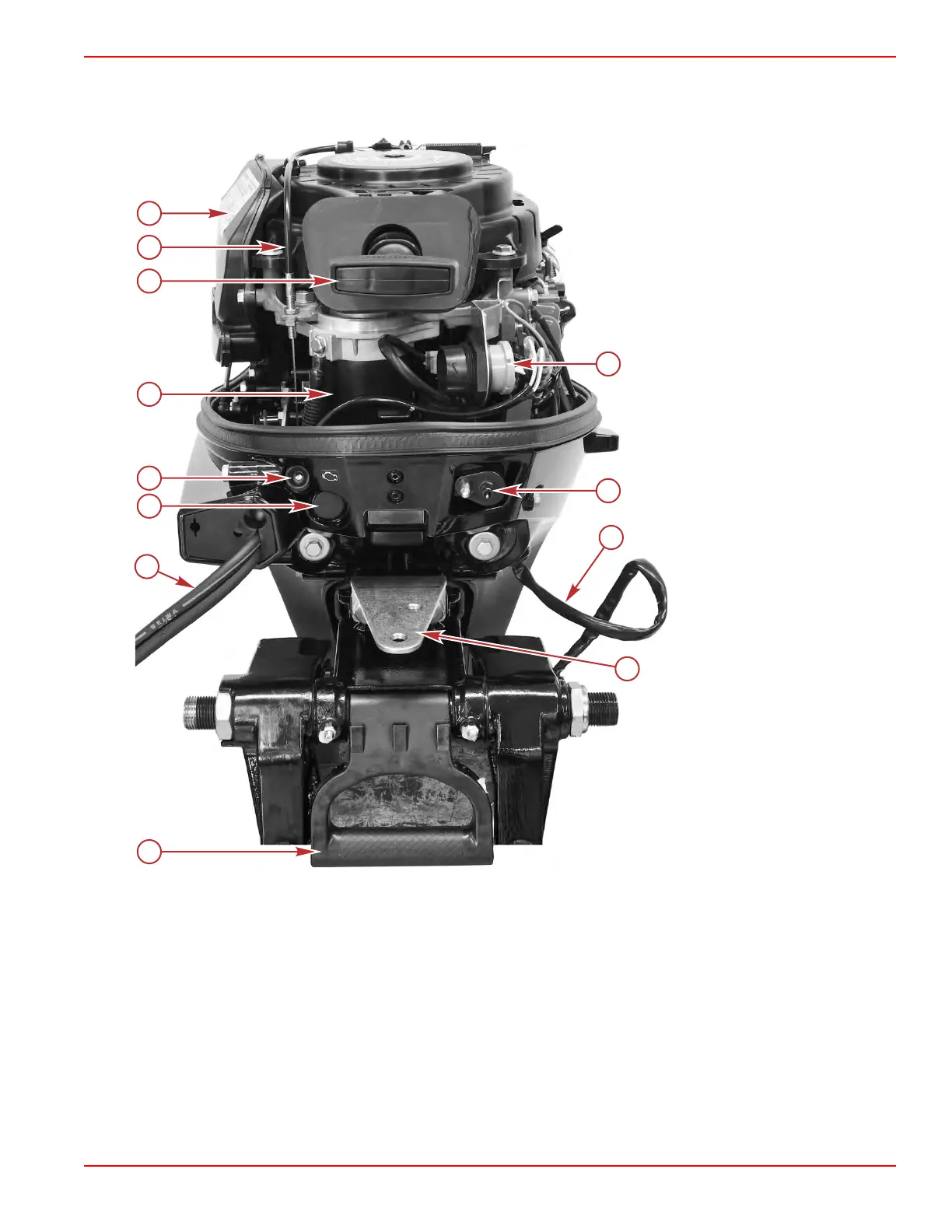

15/20 FourStroke EFI Electric Start Front View
Remote control (RC) model
shown, with control cables and
steering hardware removed
a - Carry handle
b - Battery cable
c - Rubber plug (start
push‑button on electric start
tiller models)
d - Warning light
e - Starter motor
f - Recoil handle (for manual
start)
g - Recoil interlock cable
h - Air box
i - Engine harness 14‑pin
connector
j - Fuel line connector
k - Power tilt pump wires
l - Steering bracket
General Information
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 1C-7
