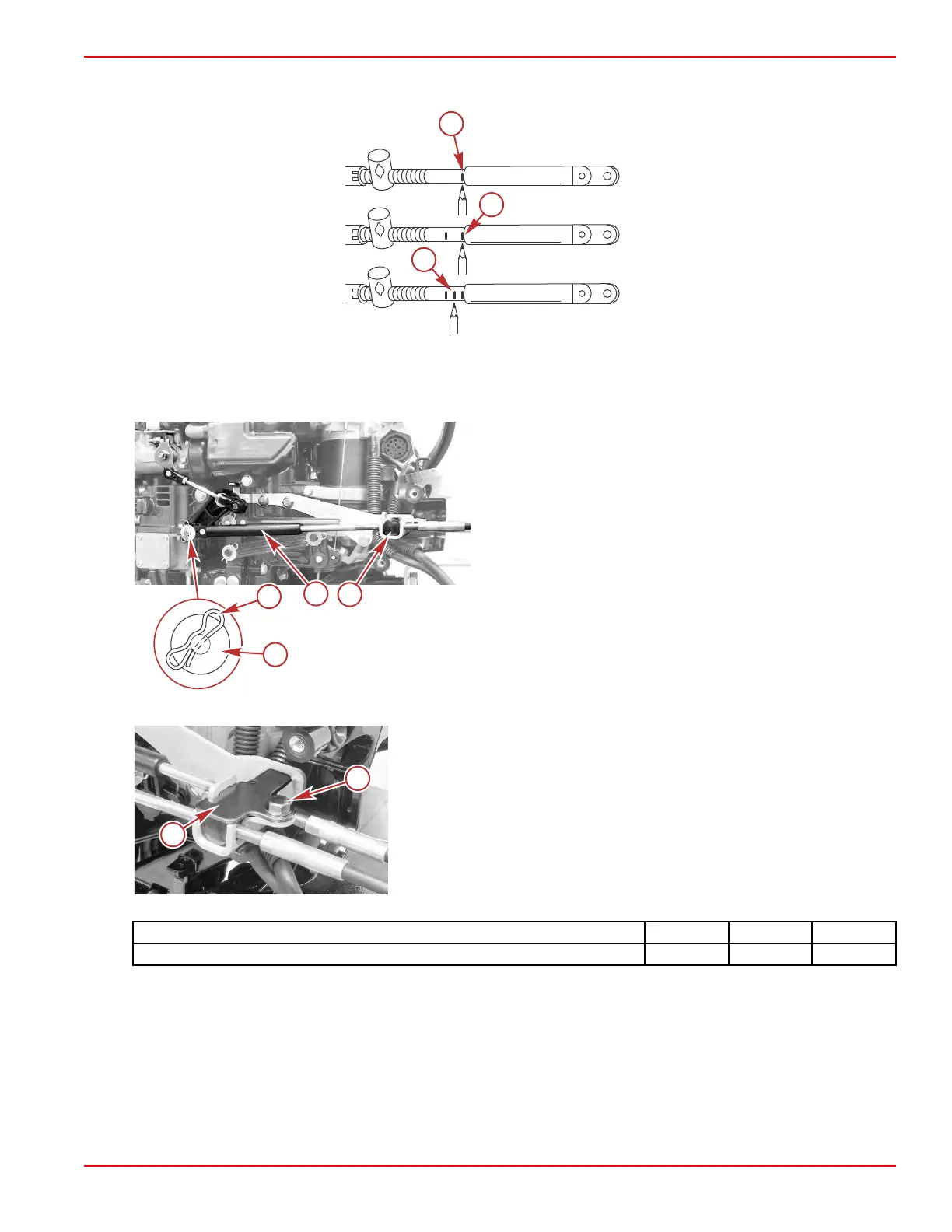

c. Make a center mark (c), midway between marks (a and b). Align the end guide with this center mark when installing
the cable onto the engine.
3. Attach the throttle cable end guide to the throttle lever with a washer and bow‑tie retainer.
4.
Adjust the cable barrel so the installed throttle cable will maintain alignment.
5. Position the throttle cable into the barrel receptacle.
a - Bow‑tie retainer
b - Flat washer
c - Throttle cable
d - Cable barrel
6. Install the cable barrel retainer and secure with the screw. Tighten the screw to the specified torque.
a - Cable barrel retainer
b - Screw
Description Nm lb‑in. lb‑ft
Screw 6 53 –
Battery Installation
NOTE: Outboards with battery charging capabilities must not be operated with the battery cables disconnected from the
battery. Damage to the charging system may result.
Mounting Battery
Follow the battery manufacturer's instructions carefully. Mount the battery in the boat so it is secured against movement,
preferably in a battery box. Ensure the battery is equipped with a nonconductive shield to prevent accidental shorting of the
battery terminals. Electric starting outboards must have the battery cables connected to a battery whenever the engine is
running, even if started manually, as damage to the charging system could result.
Outboard Installation
90-8M0125265 eng NOVEMBER 2017 © 2018 Mercury Marine Page 1D-7
