The fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating

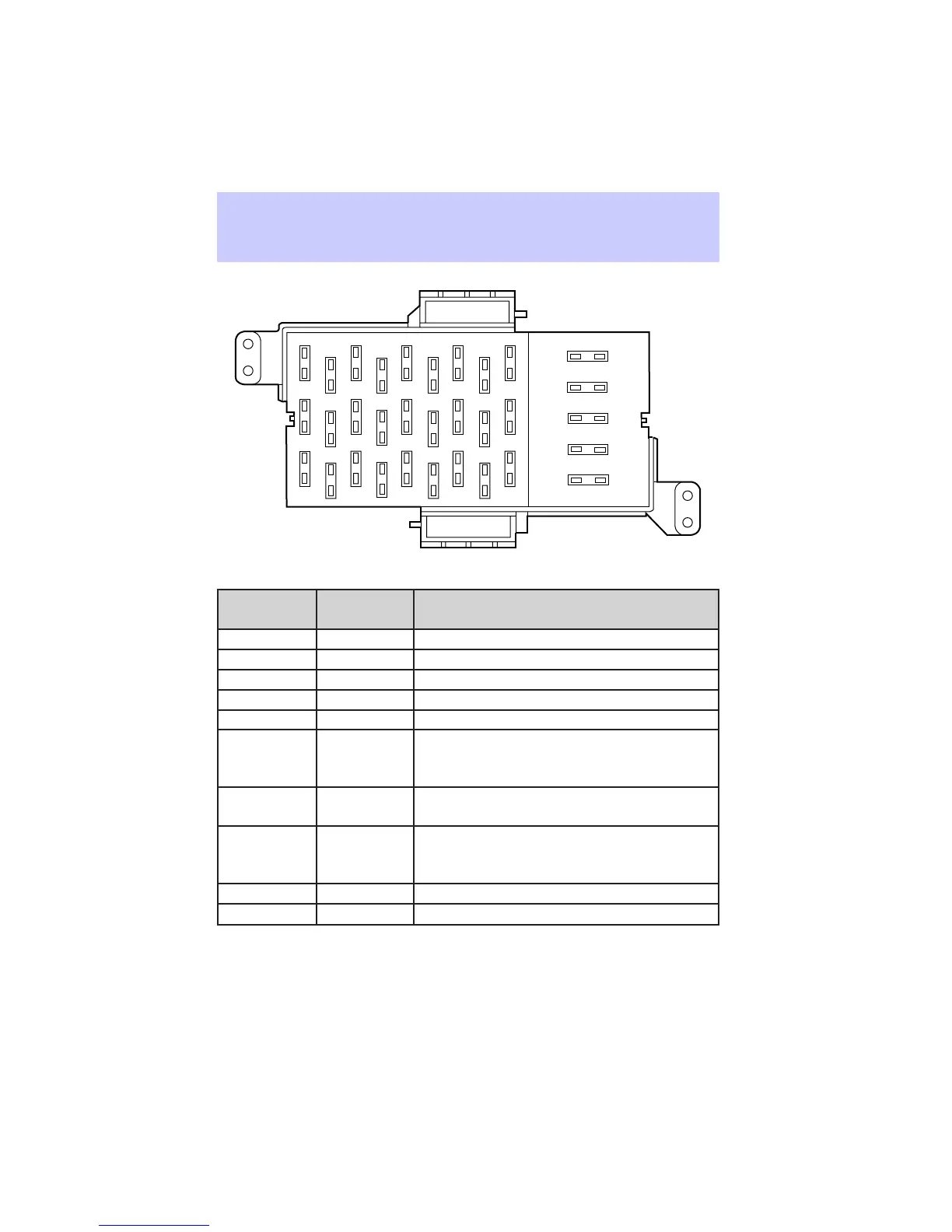

Passenger Compartment Fuse Panel
Description
1 15A Audio, CD changer
2 5A Audio
3 7.5A Mirrors
4 10A Air bags
5 — Not used
6 15A Instrument cluster warning lamps module,
Overdrive control switch, Lighting Control
Module (LCM), Police vehicle option
7 10A Driver’s Door Module (DDM), Audio
(Start)
8 25A Powertrain Control Module (PCM) power
relay, Coil-on plugs, Radio noise capacitor,
Passive Anti-Theft System (PATS)
9 5A Transmission range sensor
10 10A Rear window defrost, Heated mirrors
27 25
26 24
23 21
22
19
20
18 16
17 15
14 12
13
10
30
32
31
28
29
11
97
8
6
53
4
1
2
Roadside Emergencies
146
