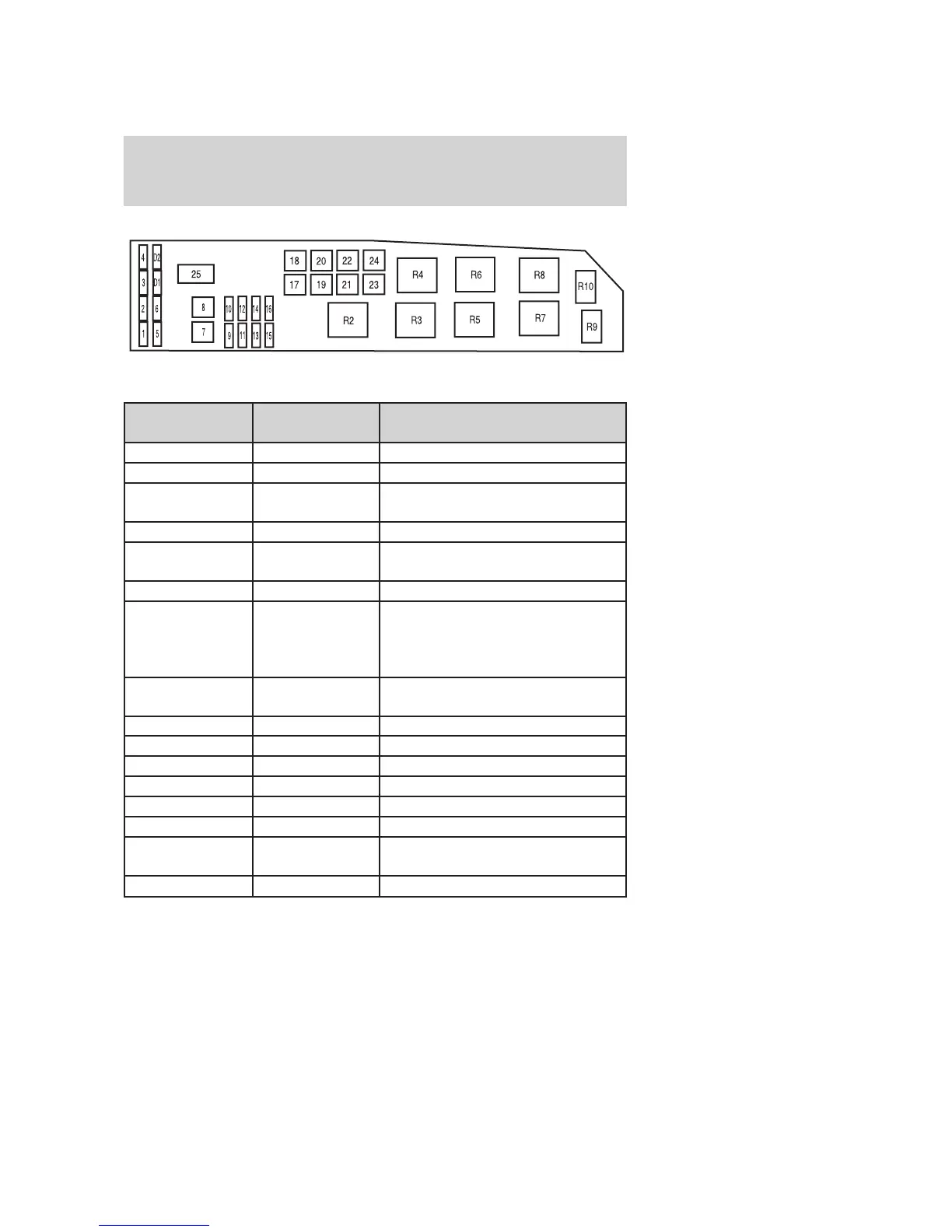

The high-current fuses are coded as follows.
Fuse/Relay
Location
Fuse Amp
Rating
Power Distribution Box
Description
1 — Not used
2 25A* Headlamp power
3 25A* High beams, Turn signals, Interior
lamps, Headlamp power
4 5A* Keep Alive Power (KA PWR)
5 15A* Heated Exhaust Gas Oxygen
(HEGO) sensors
6 20A* Fuel pump
7 40A** RUN/ACC relay -
Electrochromatic mirror, Cigar
lighter, Front and rear wipers,
Compass
8 30A** Powertrain Control Module
(PCM), Injectors and coil
9 15A* Alternator
10 30A* Heated seats
11 10A* PCM
12 20A* Power point
13 20A* Fog lamps
14 15A* A/C clutch, A/C relay
15
30A* Anti-lock Brake System (ABS)
solenoid
16 25A* I/P fuse panel (RUN/START)
2007 Mariner (mrn)
Owners Guide (post-2002-fmt)
USA (fus)
Roadside Emergencies
194
