5B-14 - MERCARB 2 BARREL CARBURETOR 90-823225--1 1096

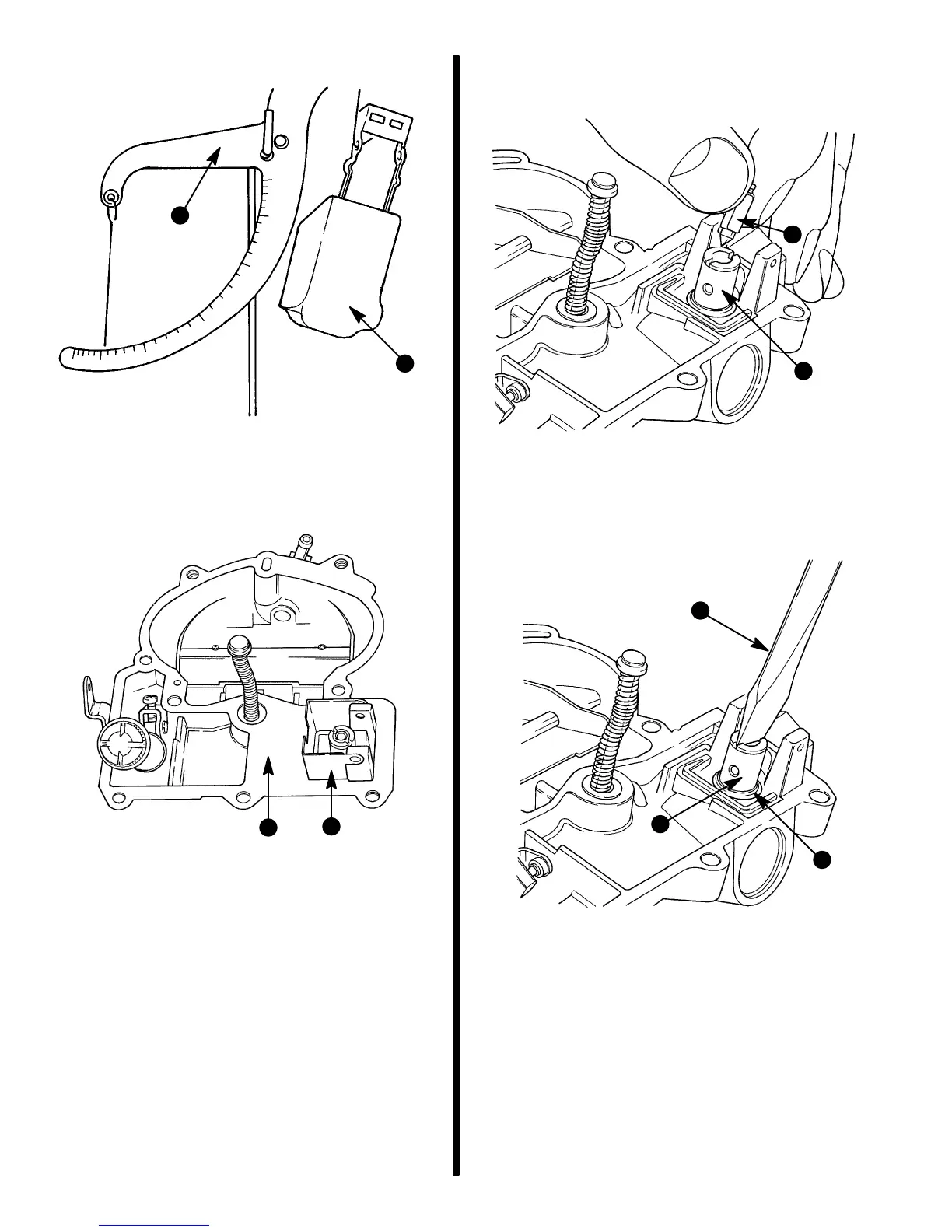

7. Check float weight as shown.

72122

b

a

a - Grams Scale

b - Float

8. Remove air horn gasket and baffle.

72399

b

a

a - Baffle

b - Air Horn Gasket

9. Remove needle assembly.

72287

b

a

a - Needle Assembly

b - Needle Seat

10. Remove needle seat.

72289

b

c

a

a - Needle Seat

b - Gasket

c - Screwdriver
