8C-44 - HURTH DOWN ANGLE TRANSMISSION 90-823225--1 1096
TRANSMISSION FLUID COOLER

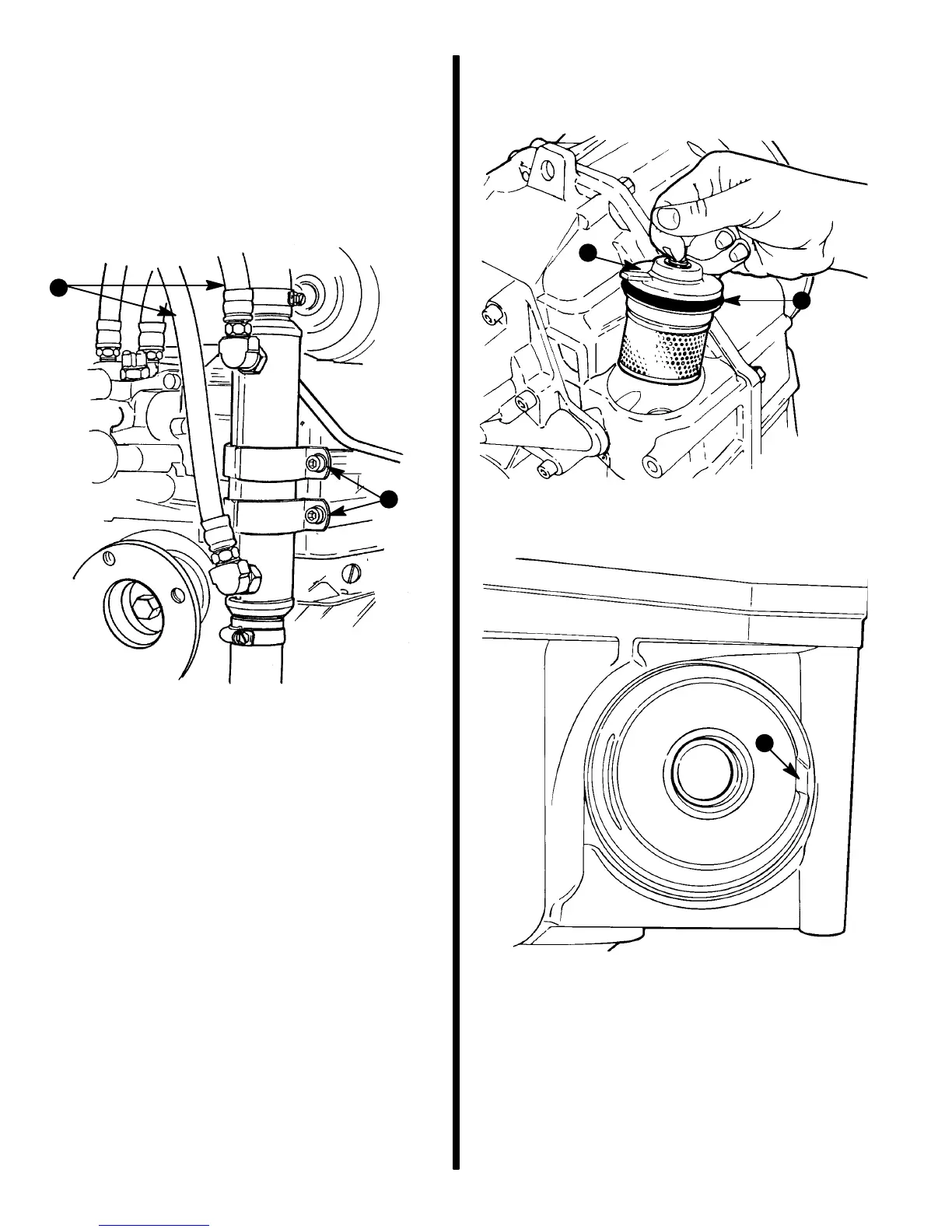

1. Install transmission fluid cooler on housing. Se-
cure with clamps and screws as shown. Torque
to 18 lb. ft. (25 N·m).
2. Connect transmission fluid hoses to cooler as
shown. Tighten securely.
72721
b
a
a - Transmission Fluid Hoses
b - Clamps
FILLING WITH TRANSMISSION FLUID
IMPORTANT: Use only ATF (Automatic Transmis-
sion Fluid), such as Dexron II-D or lll.
1. Fill transmission to proper level, through fluid
filter cavity. (Refer to “Transmission Fluid
Capacity”.)
2. Install filter as follows:
a. Bring flat spot on filter into agreement with flat
surface inside of housing.
2766
b
a
a - Filter Cover
b - O-Ring
27666
a
a - Flat Spot
