2A-6 - INSTALLATION - ALPHA ONE DRIVES 90-823225--1 1096

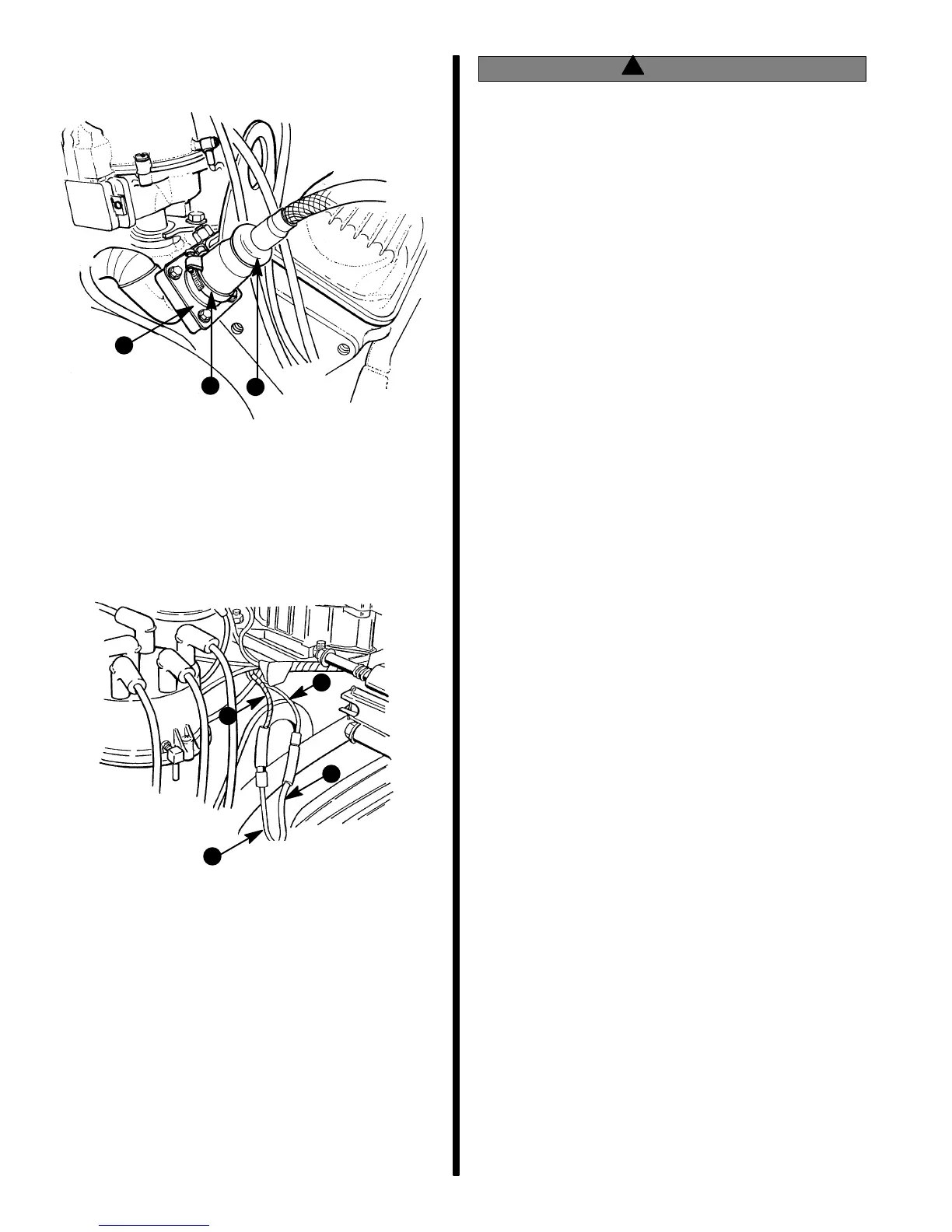

2. Connect instrument harness to engine harness
with hose clamp. Tighten clamp securely.
72025
b
c
a
a - Engine Wiring Harness Receptacle Bracket
b - Instrumentation Wiring Harness Plug
c - Hose Clamp
3. Connect trim position sender leads from gimbal
housing to leads from engine harness.
72992
b
c
d
a
a - BROWN/WHITE (From Engine Harness)
b - BLACK (From Engine Harness)
c - BLACK (From Transom Assembly)
d - BLACK (From Transom Assembly)
!
WARNING
Be careful when working on fuel system. Gaso-
line is extremely flammable and highly explosive
under certain conditions. Do not smoke or allow
spark or open flame in area. Wipe up any spilled
fuel immediately.
4. Connect fuel line from fuel tank(s) to engine.
Make certain connections are secure. Check for
leaks.
5. Connect throttle cable using hardware retained
and adjust as follows:
a. Place remote control handle(s) in neutral, idle
position.
IMPORTANT: Be sure that cable is routed in such
a way as to avoid sharp bends and/or contact
with moving parts. DO NOT fasten any items to
throttle cable. Outer cable must be free to move
when cable is actuated.
b. Install cable end guide on throttle lever, then
push cable barrel lightly toward throttle lever
end. (This will place a slight preload on cable
to avoid slack in cable when moving remote
control lever.) Adjust barrel on throttle cable
to align with anchor stud.
c. Secure throttle cable with hardware (re-
tained) as shown. Tighten cable end guide
locknut until it bottoms out and then back off
one full turn. Tighten cable barrel securely.
DO NOT OVER-TIGHTEN, as cable must
pivot freely.
To Next Page
