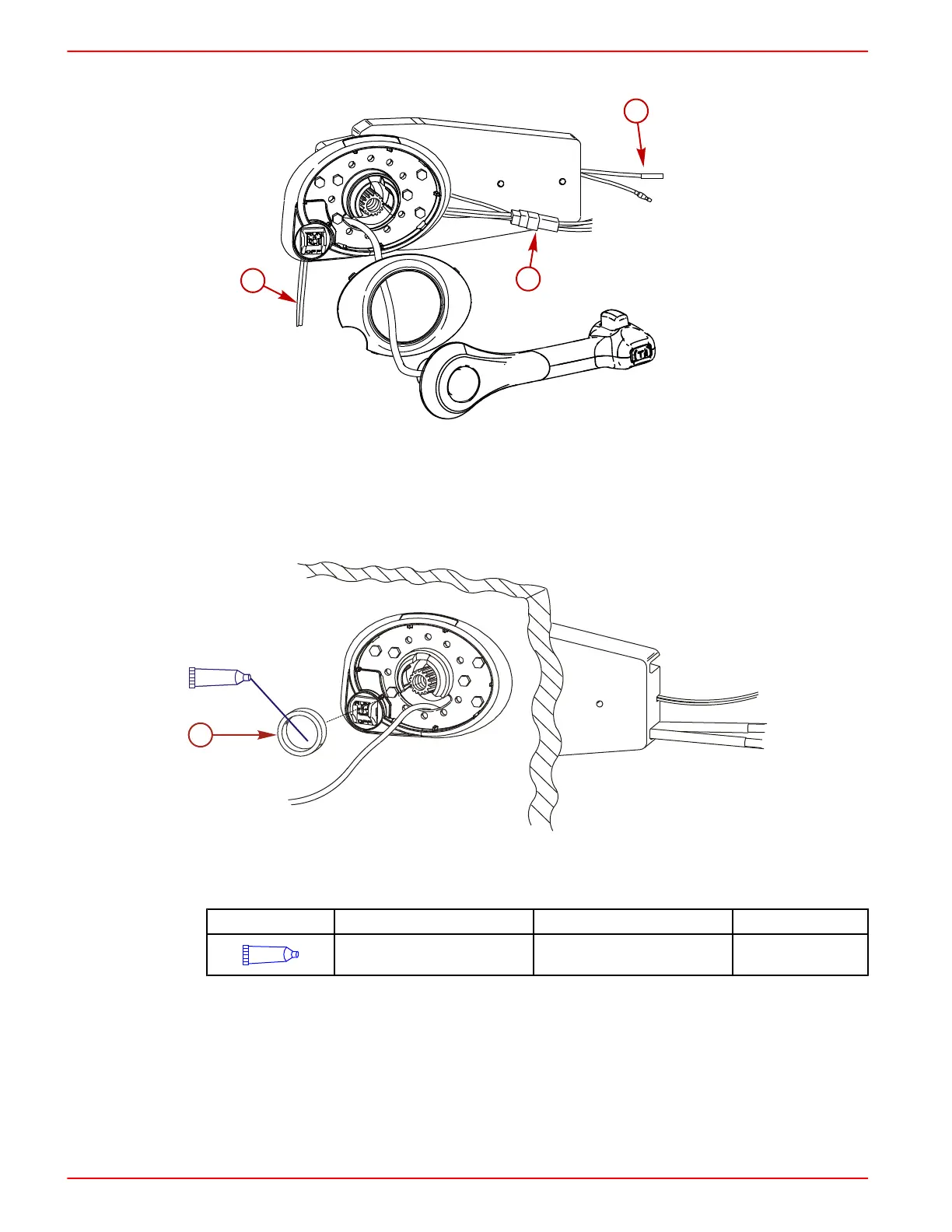

4. Connect the trim switch connector to the trim motor harness connectors.
24970
b
a
c
a - Lanyard stop switch leads
b - Neutral start safety switch leads
c - Trim switch connection
5. Install the bushing into the module assembly. Apply a small amount of 2‑4‑C with
Teflon to the inside diameter of the bushing.
17446
95
a
a - Bushing
Tube Ref No. Description Where Used Part No.
95
2-4-C with Teflon
Inside diameter of the module
assembly bushing
92-802859A 1
