OUTBOARD INSTALLATION
90-827242R02 FEBRUARY 2003 Page 1D-3

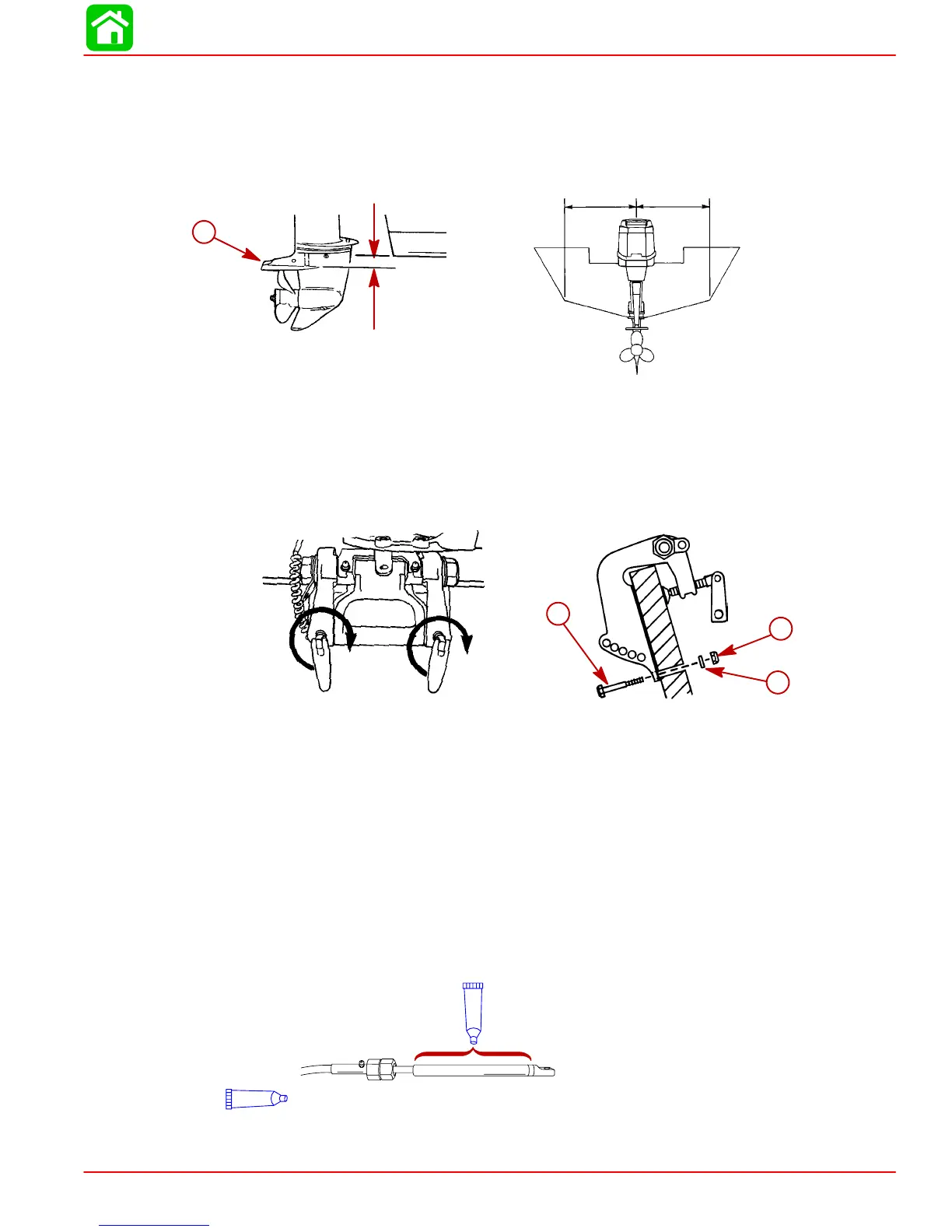

Installing Outboard
1. Measure the transom height of your boat. The boat bottom should be aligned or be within
25 mm (1 in.) above the anti-ventilation plate of the outboard.
2. Place outboard on center line of transom.
0 - 25 mm
(0 - 1 in)
a
a-Anti-Ventilation Plate
3. Tighten transom clamp handles.
4. To prevent loss of outboard overboard, fasten outboard by drilling two 7.9 mm (5/16 in.)
holes through the transom using transom clamp holes as a template. Fasten with two
bolts, flat washers and locknuts. Use a marine waterproofing sealer in holes and around
bolts to make the installation water tight.
c
b
a
a-Bolts (2)
b-Flat washers (2)
c-Locknuts (2)
Steering Cable and Steering Link Rod Installation
Installing Ride Guide Steering Cable to the Outboard
IMPORTANT: Before installing steering cable into tilt tube, lubricate entire cable end
with 2-4-C with Teflon.
1. Lubricate the entire cable end.
95
95
2-4-C with Teflon
To Next Page
