OUTBOARD INSTALLATION
Page 1D-4 90-827242R02 FEBRUARY 2003

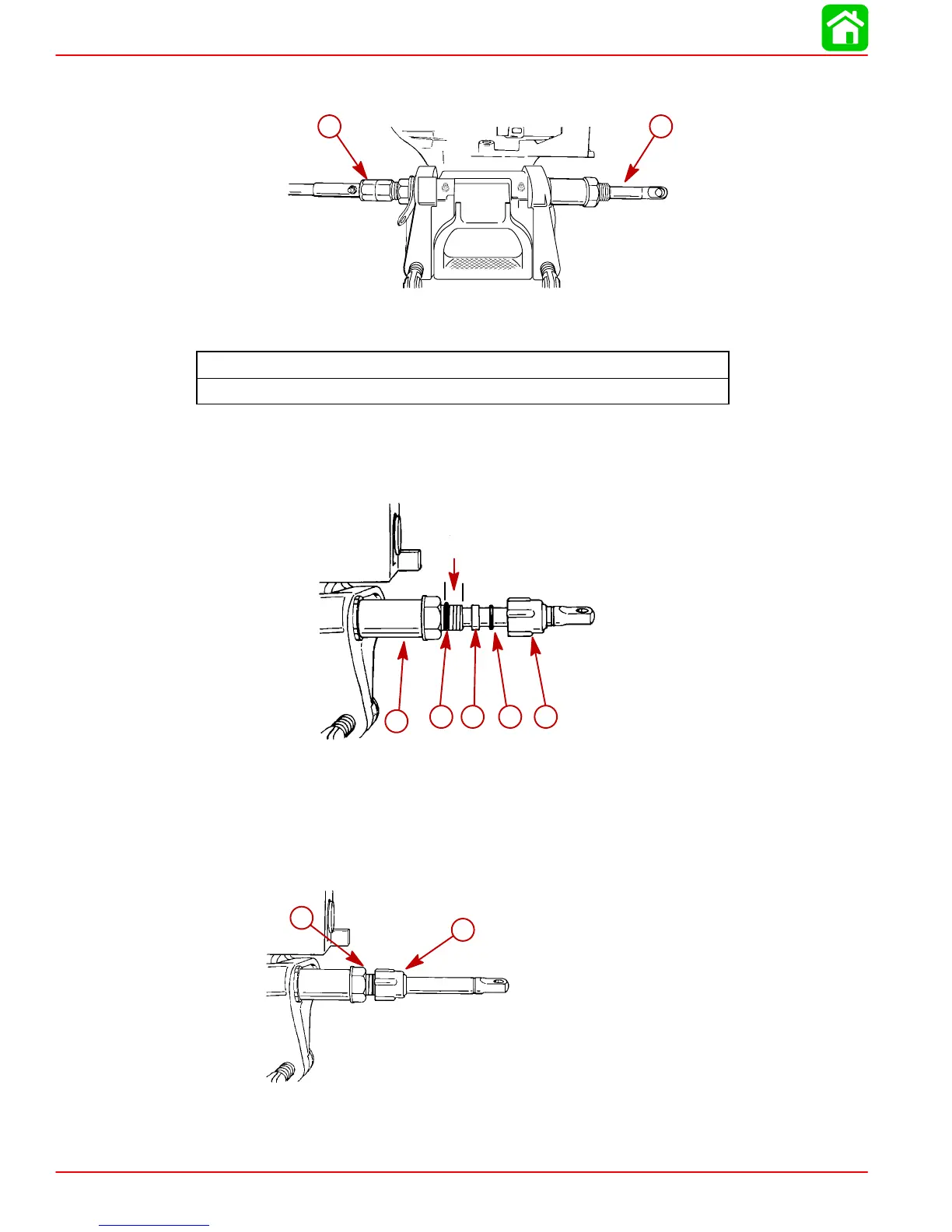

2. Insert steering cable end through outboard tilt tube and secure steering cable to tilt tube
with steering cable attaching nut as shown. Tighten to specified torque.
53400
b
a
a-Cable end
b-Attaching nut
Steering Cable Attaching Nut Torque
47.5 Nm (35 lb-ft)
Steering Cable Seal
1. Place a mark on tilt tube 6.4 mm (.250 in.) from port end of tube. Slide plastic spacer,
O-ring and cap over steering cable end, to tilt tube on engine.
53067
e
a
b
c
d
6.4mm
(.250 in.)
a-Mark
b-Spacer
c-O-ring
d-Cap
e-Spacer
2. Thread cap up to the 6.4 mm (1/4 in.) mark.
53069
a
b
a-Cap
b-6.4 mm (.250 in.) mark
