Mercury Security Corporation, © 2008 BR20 Doc. 10107-0024 rev. 1.03 10/2008 Page 5
Information subject to change without notice.
Manual revision, See appropriate
manual for FORMAT information.

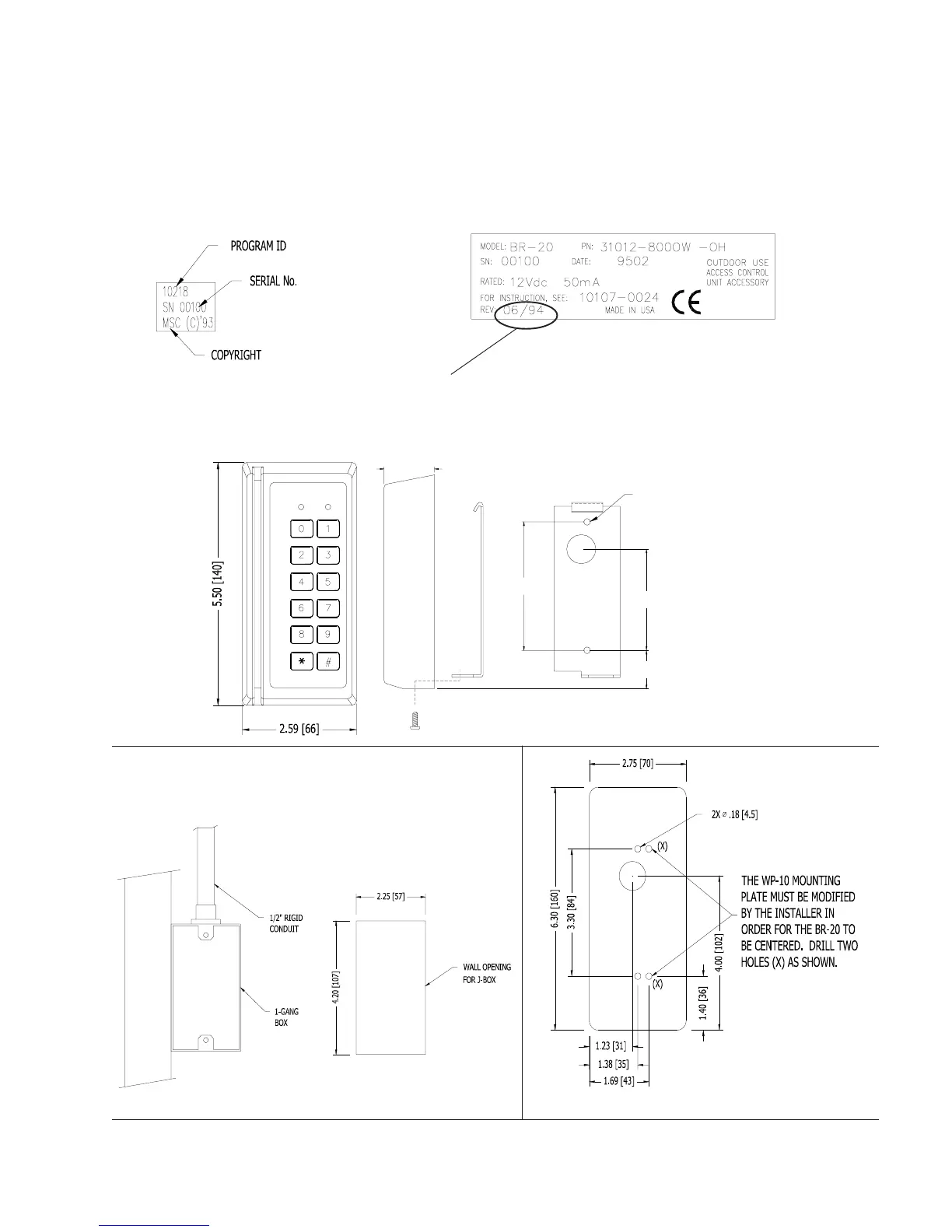

14. Product Identification:
Reader product identification is provided on labels. These labels have information on program ID, revision, product ID,
supply voltage, and copyright notice. These labels are located on the circuit board and the back of the reader.
Optional Wall Plate (part# WP10)
Fitting Rigid Conduit to Junction Box
15. Reader Mounting Dimensions:
0.99 [25]
DIMENSION: INCH [mm]
MOUNTING HOLE
2X Ø .18 [4.5]
2.60 [66]
3.30 [84]
1.30 [33]
WALL STUD
