Mercury Regatta Part code: Z40960 (Rev A)
Owner’s Handbook Page 11 of 20

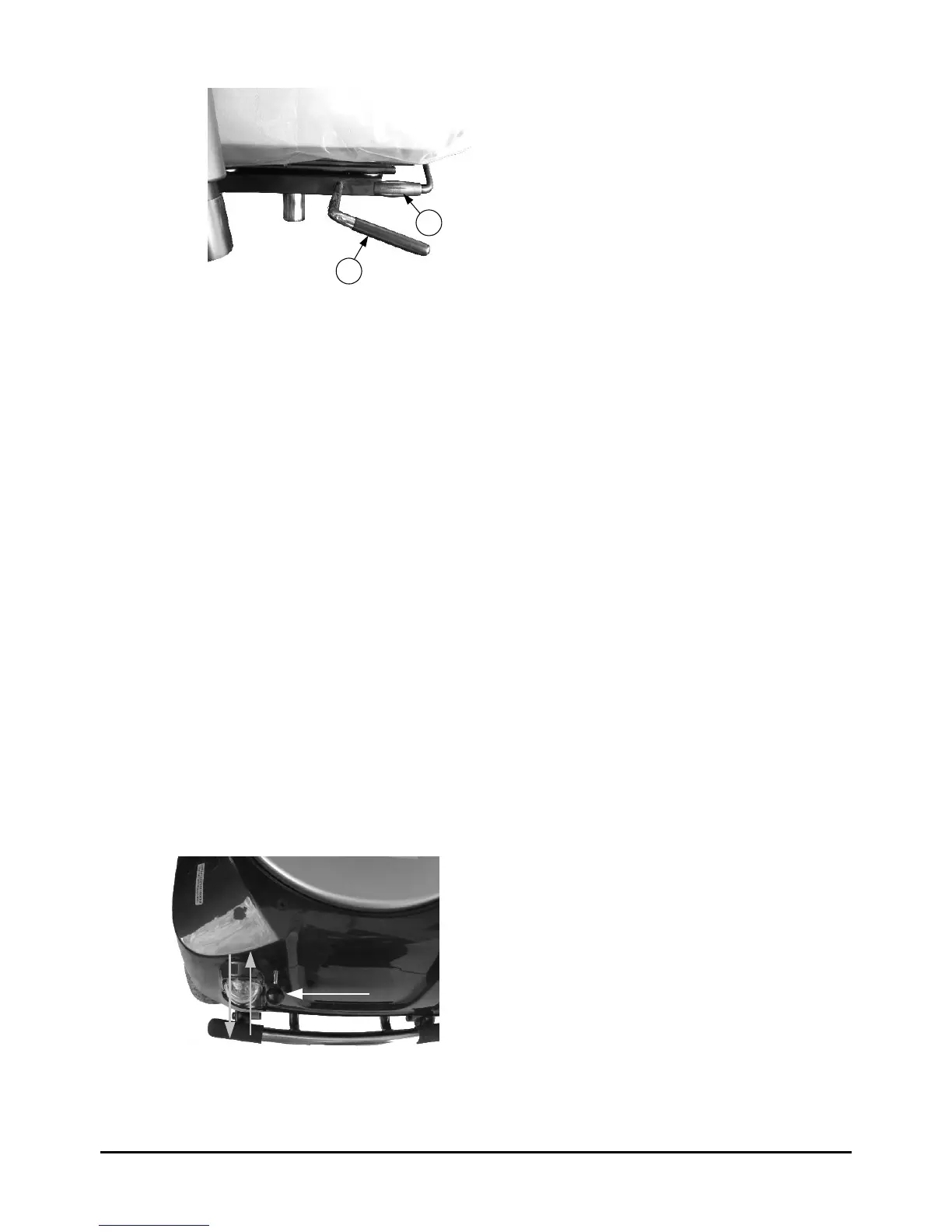

• Seat
•
A
B
The seat can rotate 360° and locks
in 45° settings. To rotate, lift up
the lever (A) located underneath
the right hand side of the seat and
swivel seat. Release the lever and
carry on swivelling the seat until
it locks in position.
• You can adjust the amount of legroom on the
scooter by sliding the seat back and forth. To
slide the seat, lift up the seat sliding handle
(B). Then adjust the seat to correct position,
release the handle and continue sliding the
seat until it locks in position.
•
To alter the backrest angle, pull up on the
seat recline lever, then adjust the backrest to
the required position and release the lever.
Please note if nobody is using the backrest
when the lever is operated, it will
automatically spring the backrest forward to
fold the seat.
• Armrest Adjustment
•
To adjust the armrest width, loosen the knobs at the back of the seat base. Slide the
armrests in and out until the required position is reached. Retighten the knobs to secure.
• To adjust the angle of the armrest, flip up the armrest pad and adjust the jam nut located
underneath the armpads toward the back of the seat.
• Braking
• Electromagnetic (EM) brake. This is the primary brake. Release the wigwag paddle
completely and the EM brake will be activated automatically and will bring the scooter to
a halt.
• Manual brake. This is a secondary brake in addition to the EM brake. Squeeze the brake
lever to apply the brake and then release the lever. The manual brake tightness can be
adjusted by the brake cable adjuster near the left hand side wheel rear wheel.
• Freewheel Mode
DRIVE
NEUTRAL
• To engage the motor: Push in the freewheel
lever (arrowed in photo) completely. The
scooter can be driven by the motor.
• To freewheel: Pull out the freewheel lever
completely. The scooter can now be pushed
manually. Note the EM brake and motor are
now disengaged.
