ASSEMBLY STE P 3
A
B
C
D
E
F
WASHER (C)
Qty: 4
BOLT (A)
Qty: 4
SPRING WASHER (B)
Qty: 4
HARDWARE BAG 3 CONTENTS :
Open HARDWARE BAG 3.

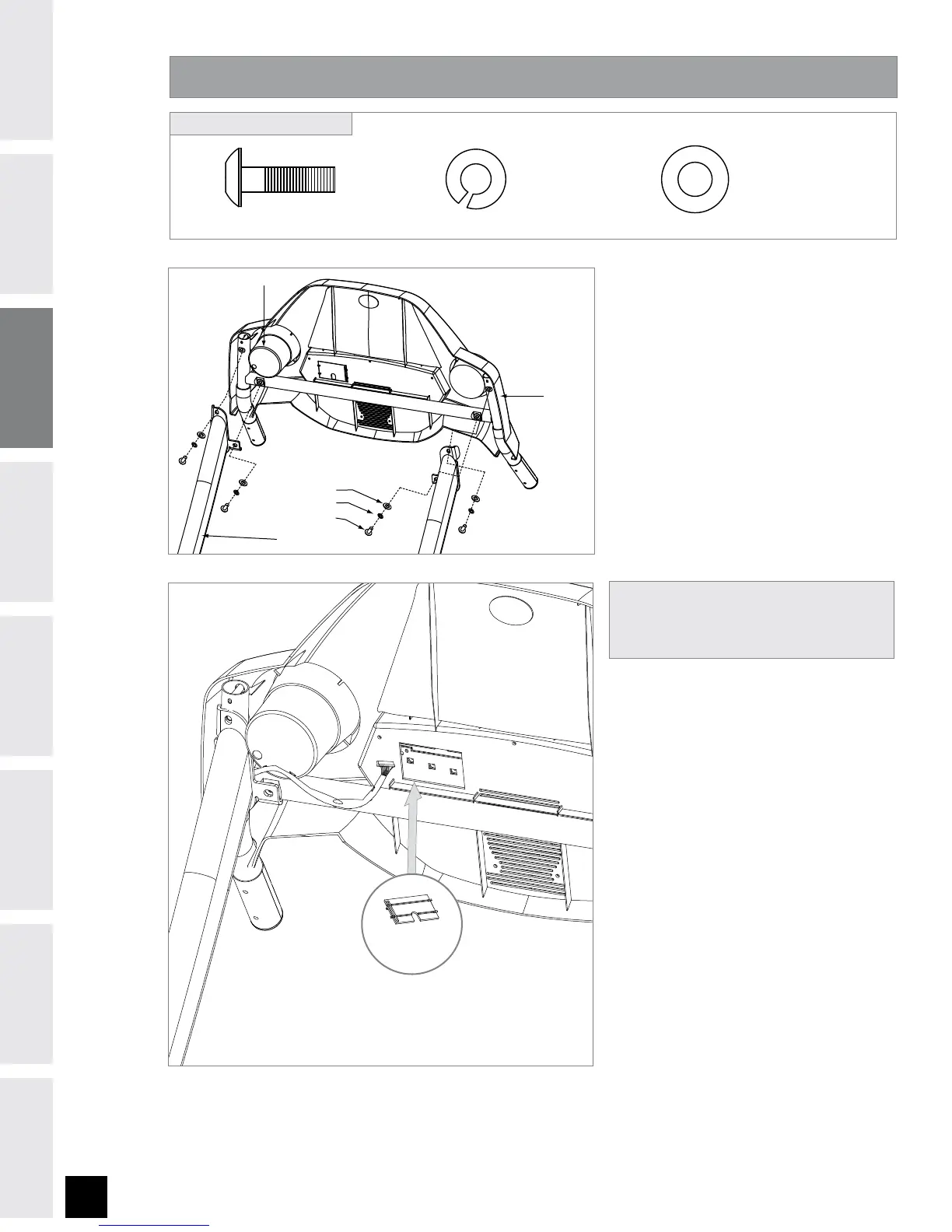

Attach the CONSOLE to the
UPRIGHT MAST using 2 BOLTS
(A), and 2 SPRING WASHERS
(B) and 2 WASHERS (C) on the
inside of the console mast.
Attach the CONSOLE to the
UPRIGHT MAST using 2 BOLTS
(A), and 2 SPRING WASHERS (B)
and 2 WASHERS (C) on the front
of the console mast.
Snap WATER BOTTLE POCKET into
place
Connect the CONSOLE CABLES
and carefully tuck wires in MAST
to avoid damage. Note: Do not
pinch console cable. Be sure the
console cable prongs are aligned
and the ends are tightly seated
into each other.
Attach CONSOLE CABLE COVER.
* NOTE: Be careful not to pinch any
wires while assembling the masts.
WASHERS (C)
SPRING WASHERS (B)
BOLTS (A)
CONSOLE
UPRIGHT
MAST
WATER BOTTLE POCKET
CONSOLE CABLE
COVER
