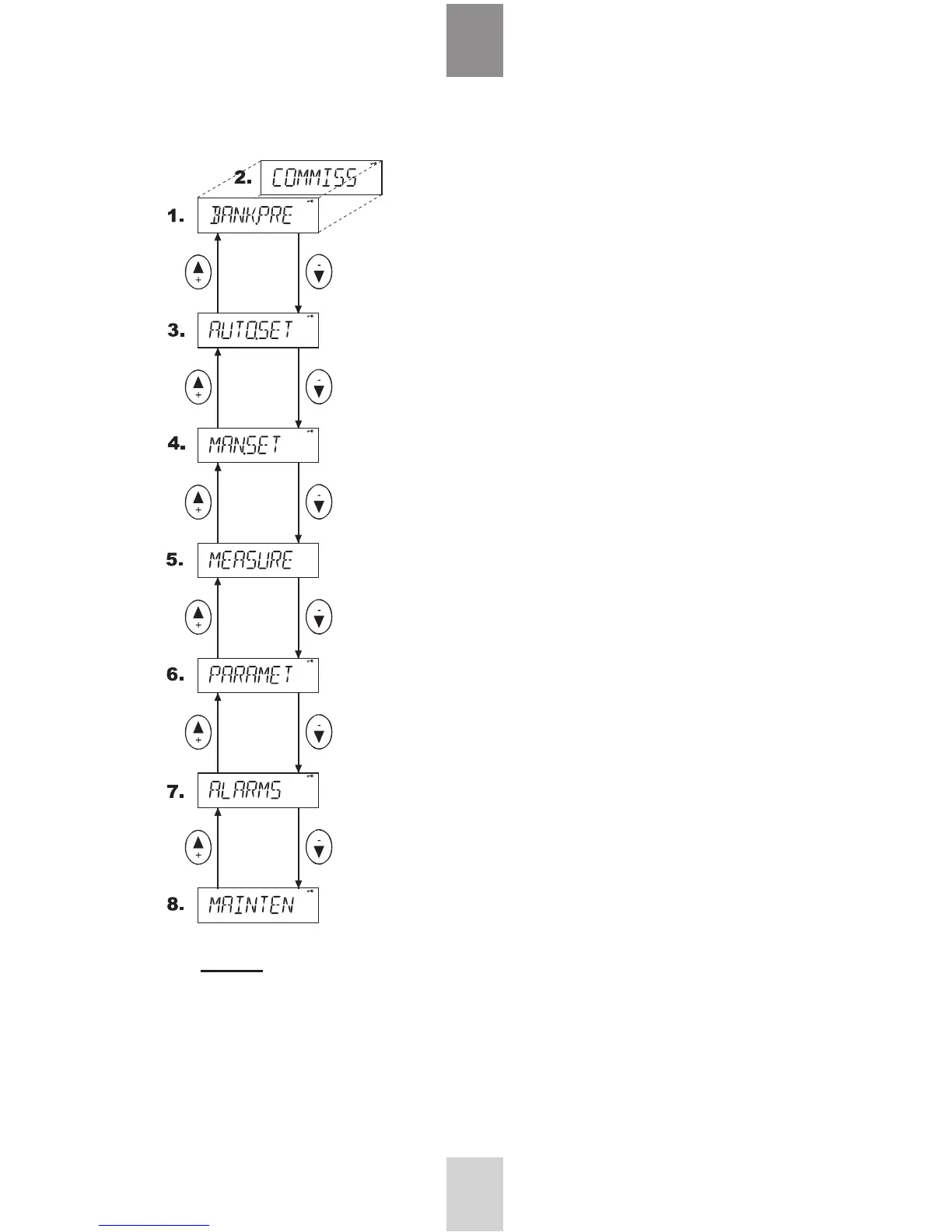

Figure 8: Main menu
(1) Bank pre-configuration
When factory settings have not been changed, this
menu provides the bank builder the means of pre-
configuring the bank at the workshop. After pre-
configuration, this menu topic is replaced by
(2) Commissioning, by which the controller is taken
into service.
(3) Automatic setup of parameters
In the event that the controller has not been pre-
configured, an inexperienced user can automatically
set up all the characteristics of the bank and bring it
into service.
(4) Manual setup of parameters
In the event that the controller has not been pre-
configured, an experienced user can manually set up
all the characteristics of the bank and bring it into
service.
(5) Measurement
The measurement menu contains the most common
measurements taken from the network and provides
some information about the bank. This is a read-only
menu.
(7) Alarm settings
To adjust status and parameters of alarms.
(8) Maintenance
The maintenance menu provides some useful
information about the usage of the bank, capacitors
and contactors. Some auxiliary settings and action
have also been provided. This menu is basically
intended for use by the manufacturer’s maintenance
team.
(6) Parameter update
At any time, an experienced user can access the most
common operating parameters from this menu. Unlike
the configuration and setup sequences, this is a menu
allowing a free and unrestricted entry into all its items
and should be used when an occasional parameter
access is needed.
