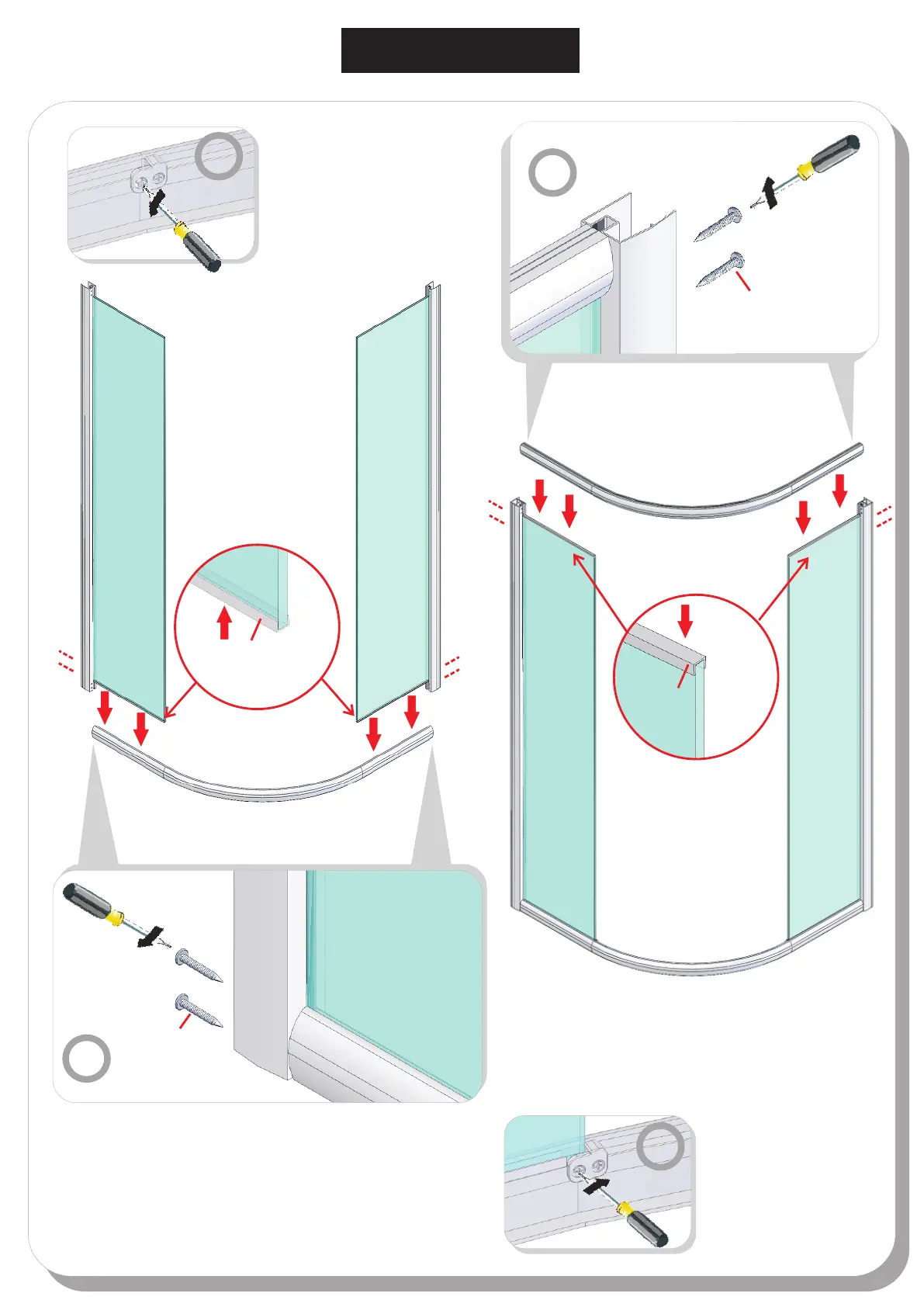

FITTING RAILS
4
Step 4.
Place fixed panel gasket onto bottom edge of glass.
Then fix the two fixed panels and upright profiles to
the bottom rail, using V4111 screw.
Step 5.
Fit the wall profiles to the assembled
frame.
V4111
4
V4111
Step 3.
Loosen fixed glass
panel clip.
Do not remove the
screw.
3
Step 6.
Tighten fixed glass
panel clip.
5
6
V3211
seal ( flush with
glass edge)
U shape
V3211 U shape
seal ( flush with
glass edge)
