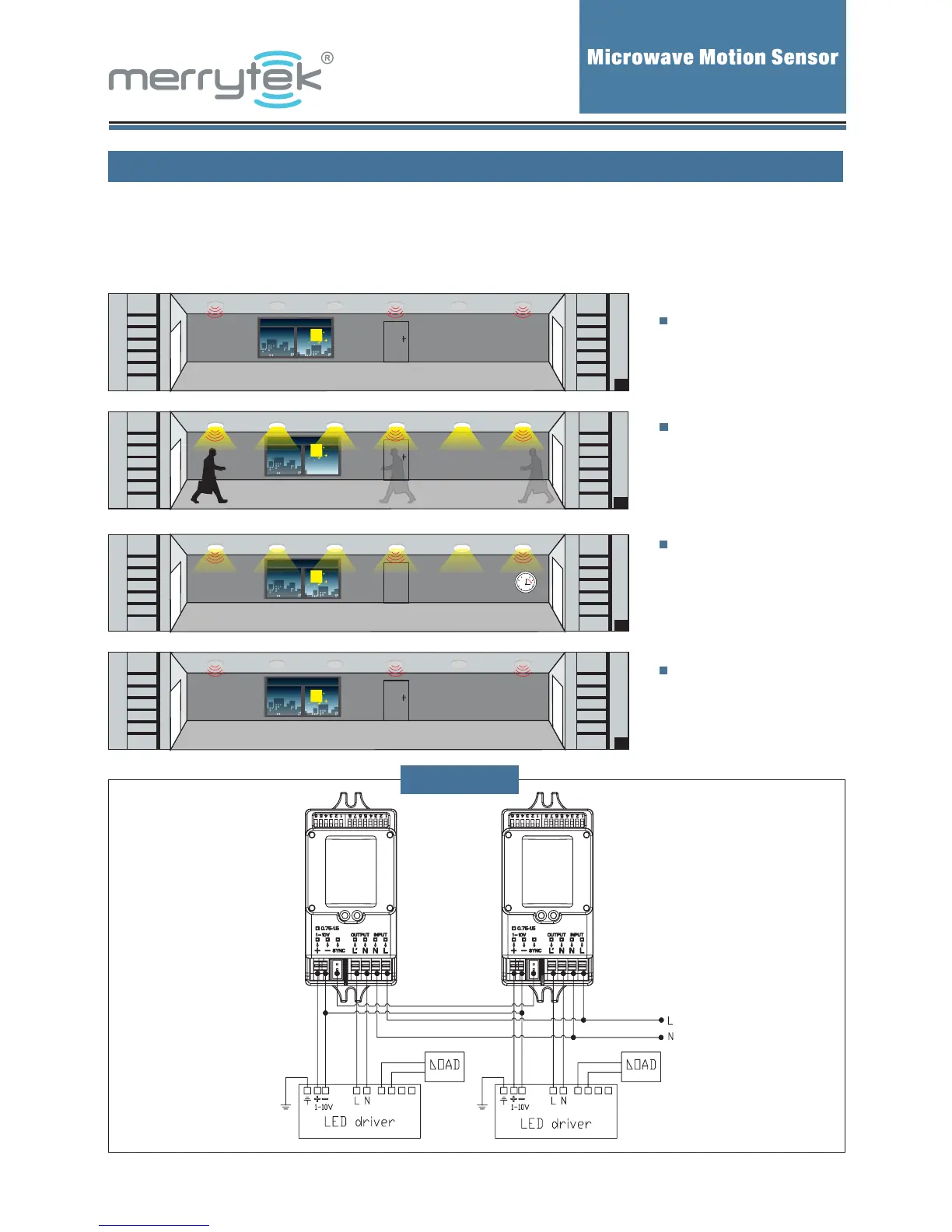

Wiring scheme
Lamps in corridor are controlled by several sensors. Once any motion is detected by one of sensors, the motion
signal will be transmitted to other sensors connected together. Then, all lamps switch on at the same time, instead
of switching on the lamps in the area where motion is detected.
Dimming Function
3-step dimming function
No motion detected,
all lamps switch off.
1
Any movement is detected
from any direction, all lamps
synchronously switch on.
2
No motion is detected in
detection area, all lamps
synchronously dim to a low
light level after hold time.
3
After stand-by period, the
lamps switch off if no
movement is detected in
the detection zone.
4
3
6
6
12
3
se ns or sl av e sl av e sl av ese ns or se ns or
2
se ns or sl av e sl av e sl av ese ns or se ns or
1
se ns or sl av e sl av e sl av ese ns or se ns or
4
se ns or sl av e sl av e sl av ese ns or se ns or
