92 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Installing the Access Points

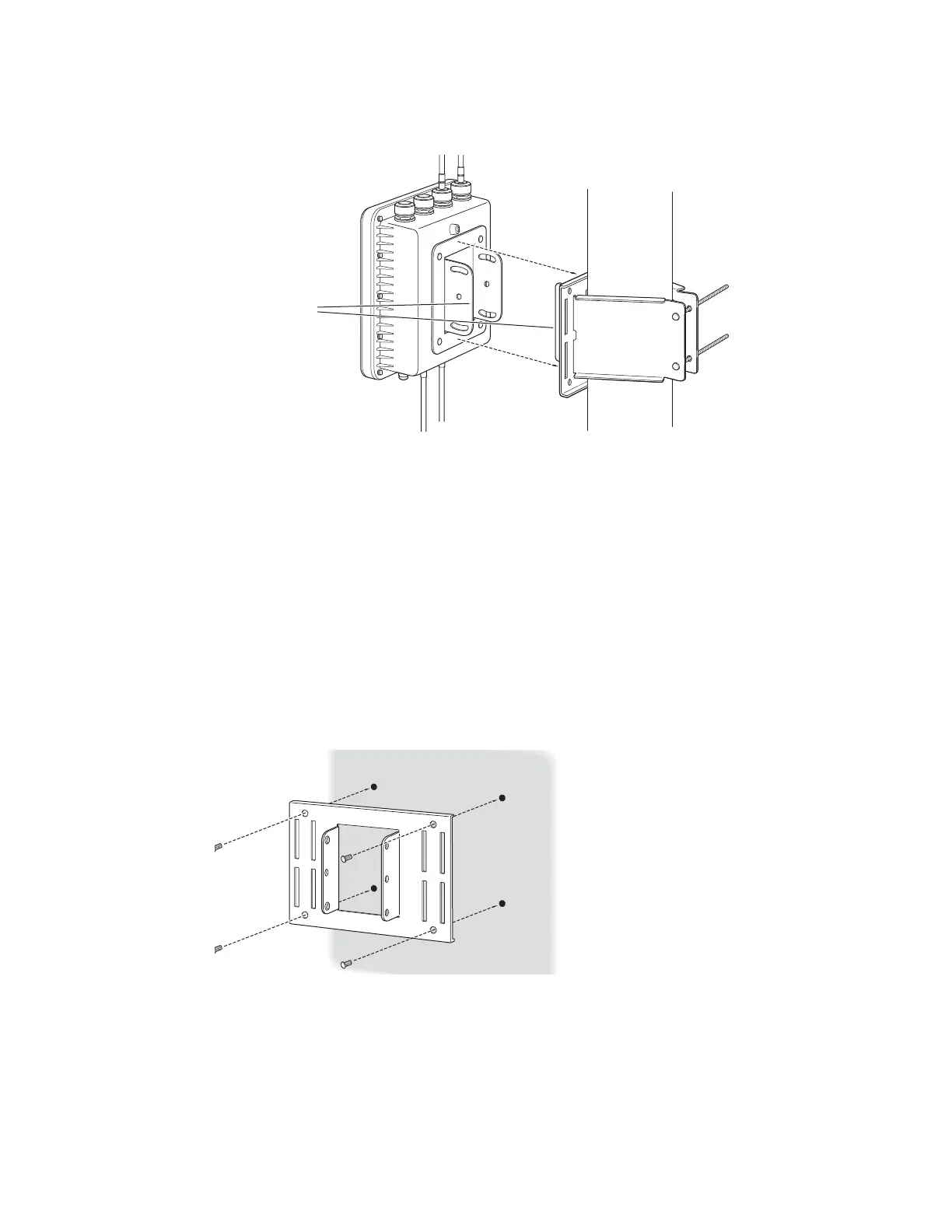

Figure 37: Brackets Attached to a Pole
3. Use the included nuts to tightly secure the wireless OAP180 to the bracket.
4. Connect the
OAP180 bracket and the pole bracket.
Mounting OAP180 with the Wall-Mounting Bracket
Attach the bracket to a wall with the flat side flush against the wall. Follow these
steps to mount the unit to a wall using the wall-mounting bracket:
1. Position the bracket in the intended location and mark the position of the four
mounting screw holes.
2. Drill holes in the wall that match the screws and wall plugs included in the
bracket kit, and then secure the bracket to the wall.
Figure 38: Mount OAP180 Bracket on Wall
3. Use the included nuts to tightly secure the OAP180 to the bracket.
4. Connect the two brackets as shown below.
00201
Attach the bridge
with bracket to
affixed plate on pole
02
