Meru Networks AP300 User Manual

18 Meru Access Point Installation Guide © 2010 Meru Networks, Inc.
Install the AP300

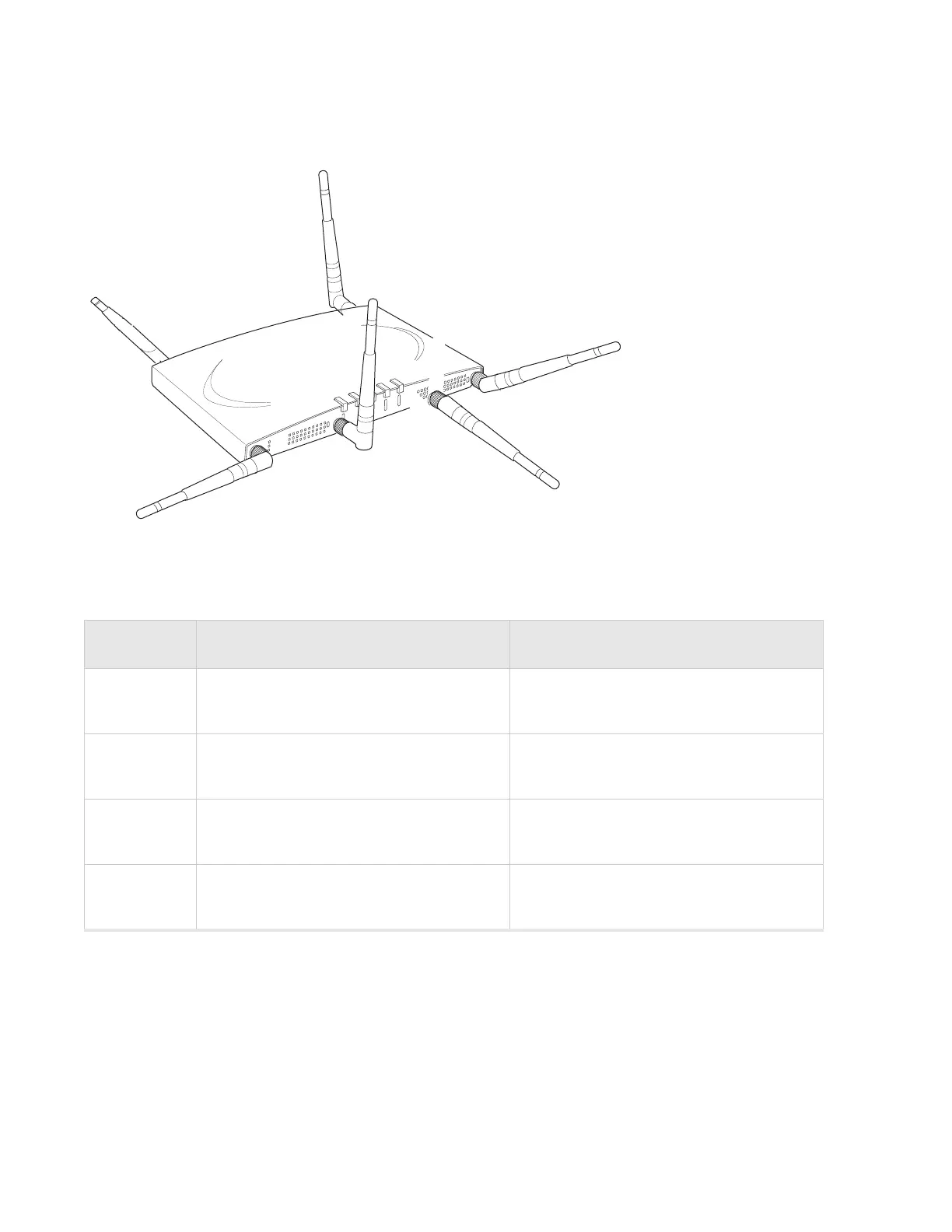

Figure 6: AP320, AP311 or AP302 Antennas 1-6 in Ceiling and Wall Mount Configuration
The following antenna connections are used during operation of the AP320, AP311, and AP302.
Table 1: AP300 Radios and Corresponding Antennas
The AP310/AP310-M has six external antenna
ports labeled 1 - 6. However, AP310/AP310-M uses only
three of those antennas and the unused antenna connectors are blocked.
Figure 7
illustrates the recommended antenna configuration for the AP310/AP310-M.
Model Radio 1 (Ant4, Ant5, Ant6) Radio 2 (Ant1, Ant2, Ant3)
AP320
a/b/g/n with 3 dual band omni-directional
antennas
a/b/g/n with 3 dual band omni-directional
antennas
AP311
a/b/g/n with 3 dual band omni-directional
antennas
a/b/g with 3 dual band omni-directional
antennas
AP310/AP310-M
a/b/g/n with 3 dual band omni-directional
antennas
NA
AP302
a/b/g with 3 dual band omni-directional
antennas
a/b/g with 3 dual band omni-directional
antennas
A
2
A
2
A
L
A
N
R
F
1
R
F
2
2
1 (horizontal)
6 (vertical)
2 (horizontal)
4 (horizontal)
3 (vertical)
5 (horizontal)

Meru Networks AP300 Specifications

General

Brand	Meru Networks
Model	AP300
Category	Wireless Access Point
Language	English
