Mesa/Boogie Stiletto User Manual

PAGE 23
1
2
5
4
4 Ohm Cabinet
3
8 OHM 4 OHM
4 OHM
Partial back view of
some Mesa amp
8 Ohm Cabinet
SAFE MISMATCH

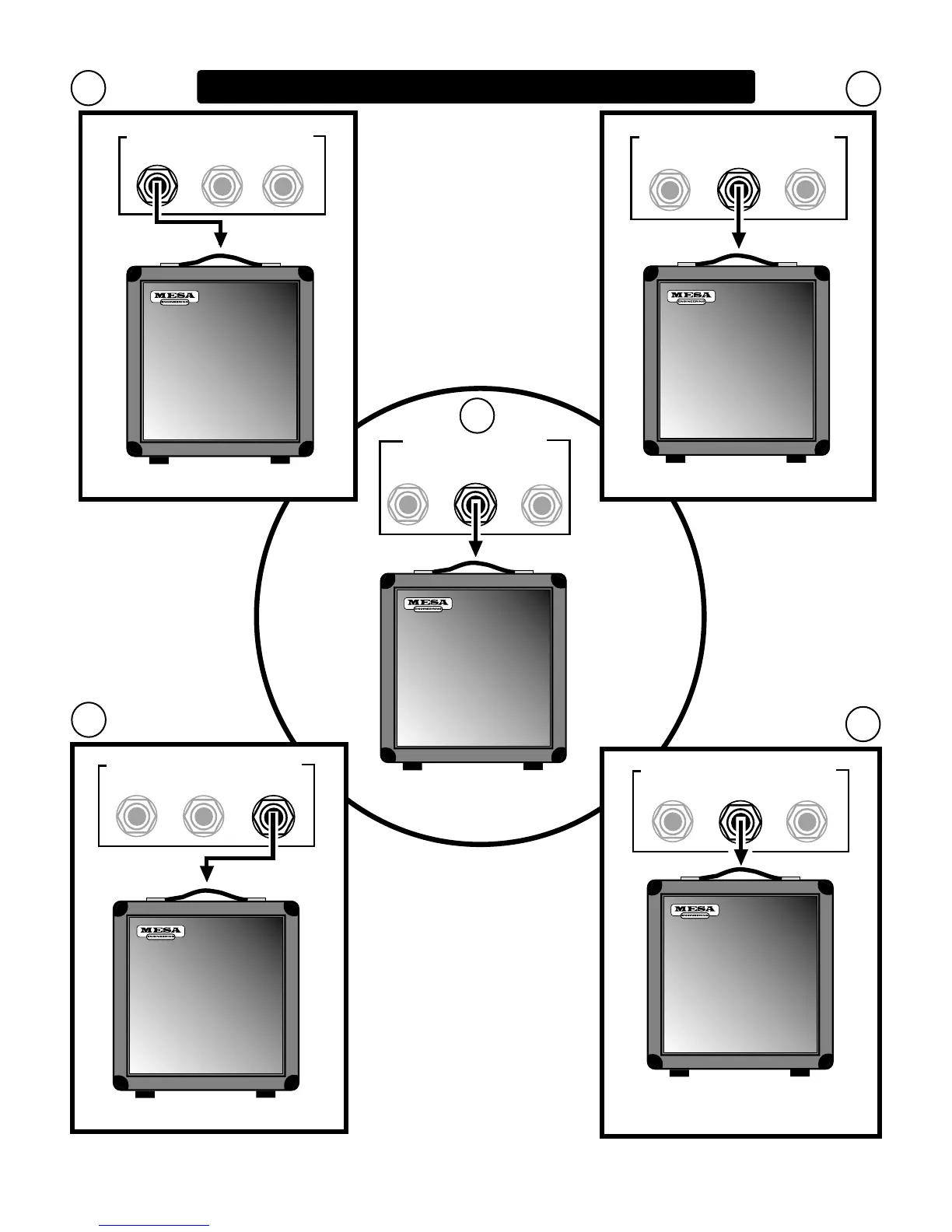

WIRING SCHEMES...Amplifier to Speaker Cabinets
4 OHM 8 OHM 16 OHM
Partial back view of amplifier
16 Ohm Cabinet
4 OHM 8 OHM 16 OHM
Partial back view of amplifier
16 Ohm Cabinet
SAFE MISMATCH
8 OHM 4 OHM 4 OHM
Partial back view of amplifier
8 OHM 4 OHM 4 OHM
Partial back view of amplifier
8 Ohm Cabinet
4 Ohm Cabinet
8 Ohm Cabinet

Mesa/Boogie Stiletto Specifications

General

Type	Tube Amplifier
Channels	2
Preamp Tubes	5 x 12AX7
Reverb	No
Rectifier	Solid State
EQ	Bass, Mid, Treble
Inputs	1 x 1/4"
Footswitch	Included (Channel Switching)
Effects Loop	Yes (Series)
