electromagnetic vibrator (set switch (2) to the "IR"
position).
Use a coin or a similar object to turn the locking
knob (15) on the locking bar (14) counter-clockwise
through 90° and push the bar (14) to the rear. Swing
up the hood and pull up the filter cartridges (17) to
remove them. Seal the removed filter cassettes
immediately in a dust-tight plastic bag and dispose
of them in accordance with regulations. Insert new
filter cartridges, ensuring they are correctly and
securely in place.
10.4 Motor protection filter
Regularly check the motor protection filter. If the
motor protection filter (16) is contaminated, this
indicates that the filter cassettes (17) may be
defective:
- Replace the filter cartridges (17).
- Replace the motor protection filter (16), or rinse it
under running water, dry it and then replace.

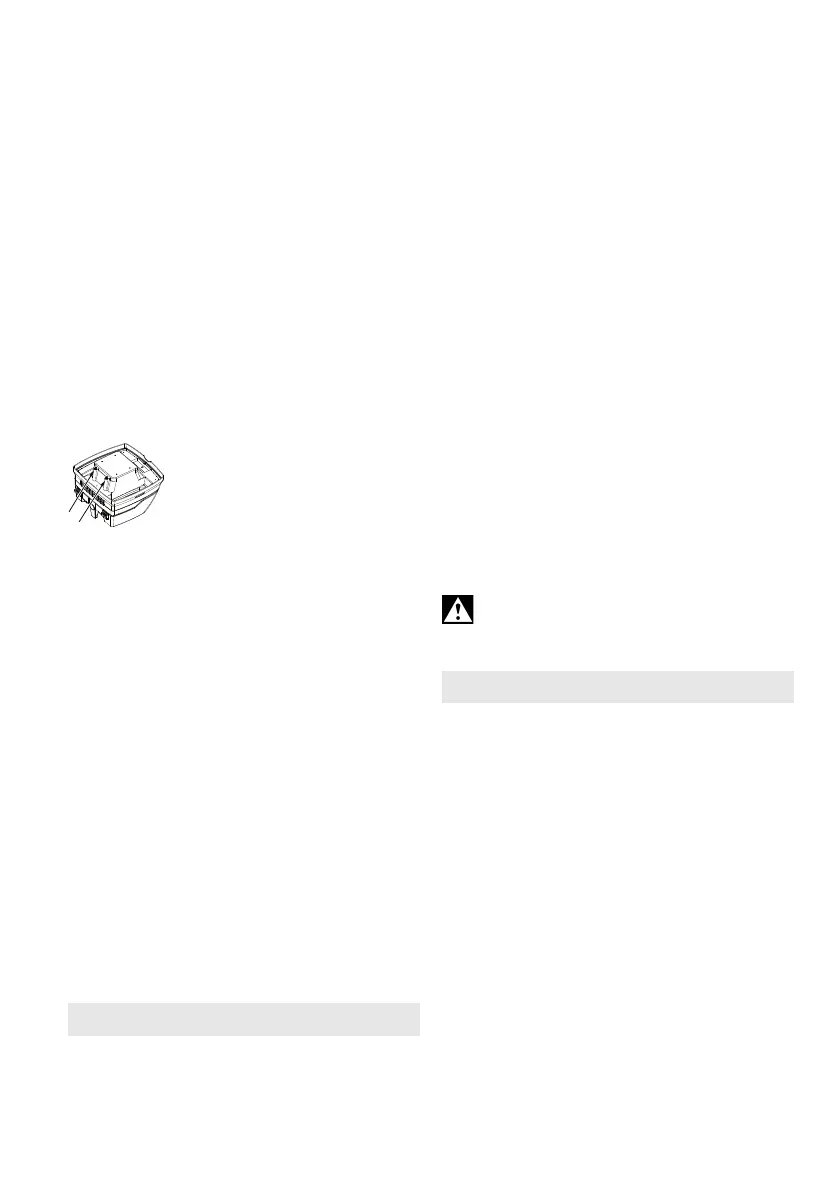

10.5 Water sensor
IMPORTANT - Clean the water
sensor regularly and check it for
signs of damage.
10.6 Technical inspection for ASR 35 M ACP,
ASR 35 H ACP
At least once a year, the manufacturer or a suitably
qualified and trained person must carry out a dust
test, e.g. to check for damage to the filter, verify that
the device is air-tight and that the control unit is
functioning correctly.
For maintenance by the user, the vacuum cleaner
must be taken apart, cleaned and maintained, to the
extent possible, without endangering maintenance
staff or other people.
Preventive measures
Appropriate preventive measures include: cleaning
the device before disassembly; providing local
filtered forced ventilation where the vacuum cleaner
is disassembled; cleaning of the maintenance area
and providing suitable personal protective clothing
and equipment.
When carrying out maintenance or repairs, it is
essential to dispose of any contaminated objects
that cannot be adequately cleaned. These objects
must be disposed of using impermeable bags and
in accordance with the applicable regulations for
removing such waste.
ANMERKUNG: In addition, the efficiency of the
vacuum cleaner should be checked on an annual
basis for class H vacuum cleaners.
If the volume flow control display (3) lights up or if an
acoustic signal is sounded (only for ASR 35 M ACP,
ASR 35 H ACP), this indicates that the fleece filter
bag must be emptied.
Reduction in suction power:
See the instructions in the section on Cleaning.
• Filter cassettes (17) soiled? - clean.
• Fleece filter bag (7) full? - replace.
• PE disposal bag (6) full? - replace.
• Container (11) full? - empty.
• Motor protection filter (16) clogged? - See
chapter 10..
• Nozzle, tubes or hose blocked?- clean.
Device will not start:
• Is the plug in the plug socket?
•No power from mains?
• Mains lead OK?
• Device hood correctly closed?
• Has the water sensor cut off? - Empty the
container; then switch on and off again.
• Switch (2) in "AR" position? - Set to "I" or "IR".
See chapter 7.1.
• The vacuum cleaner is not switched on or off by
means of a power tool, even though switch (2) is
set to the "AR" position. - Connect the power tool
to the plug socket (4) .
Dust in the container when fleece filter bag is
fitted:
• The position of the rotary slide is incorrect. See
chapter 6.2.
PE disposal bag is sucked to the filter
cassettes (17):
• The position of the rotary slide is incorrect. See
chapter 6.3.
Do not interfere with the device. Contact
an authorized workshop or Metabo's after-
sales service department (see chapter 13. on
Repairs).
f
Use only genuine Metabo accessories.
If you need any accessories, check with your
dealer.
See page 4.
18 Fleece filter bag (for class L and M devices)
5 pieces = 1 set
19 PE disposal bag (for class L, M and H devices)
5 pieces = 1 set
20 Paper filter cassette (for class L and M devices)
2 pieces = 1 set
21 Polyester filter cassette (for class L and M
devices)
2 pieces = 1 set
22 Polyester Nano filter cassette (for class L and M
devices)
2 pieces = 1 set
23 HEPA filter cassette (for class H devices)
2 pieces = 1 set
24 Motor protection filter (1 filter) You must order 2
items.
25 Handle
26 Cable clips (10 clips)
27 Suction hose
28 Suction tubes (2 items)
29 Intermediate piece
11. Troubleshooting
12. Accessories
