EN | Product description
8

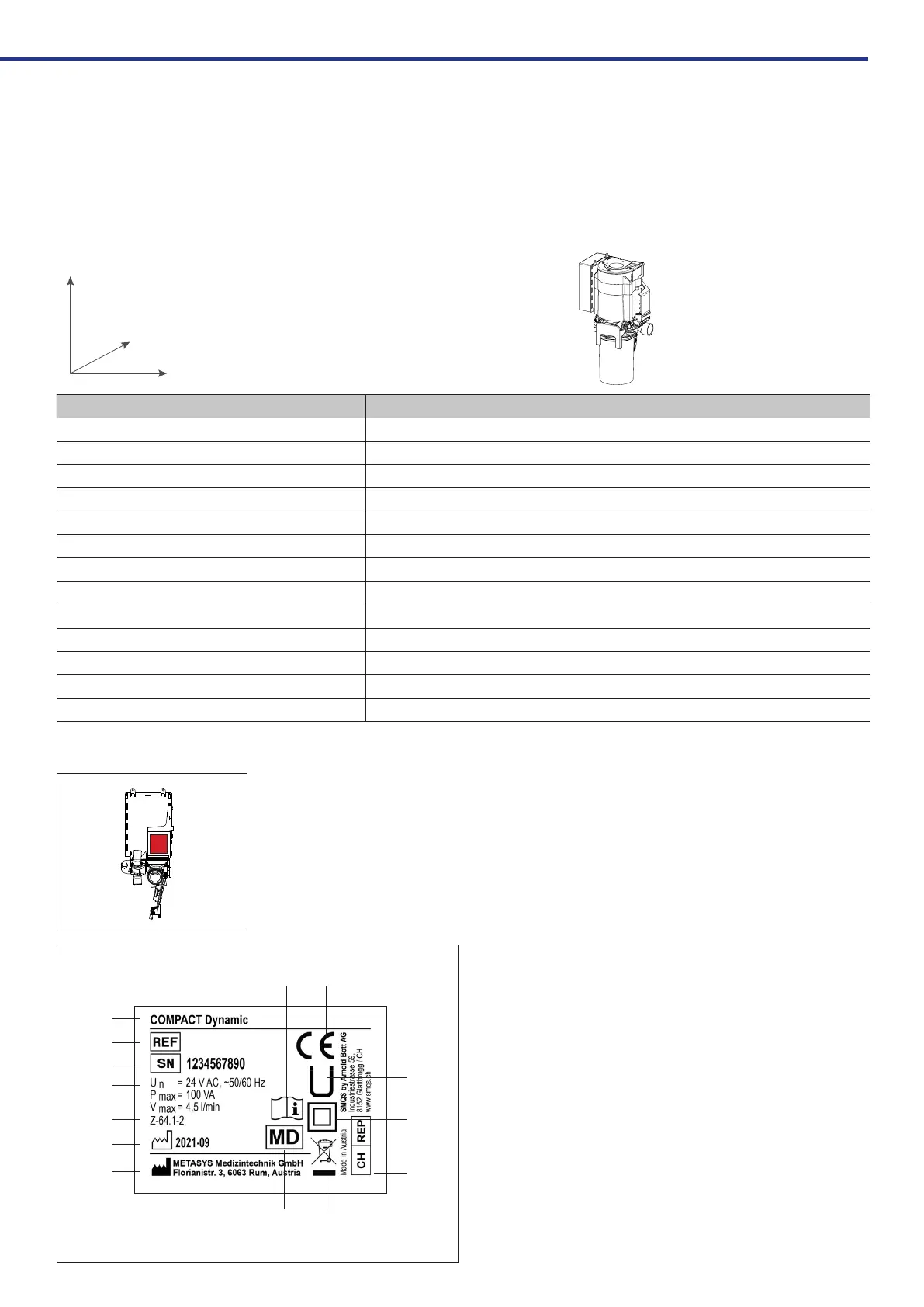

4. Product description
4.1. Product description
COMPACT Dynamic a two-stage single place amalgam separator with integrated dynamic air/water separation.
4.2. Technical data / performance data
Height [H]
Width [W]
Depth [D]
COMPACT Dynamic
Power supply 24 V AC
Frequency 50/60 Hz
Max. current consumption 4 A
Max. power consumption 100 VA
Max. ambient temperature 40 °C
Max.liquidowrate 3.0 l/min via the spittoon; 1.5 l/min via the suction side
Negative pressure range 80-160 mbar
Separation rate 96,4 %
Collection container volume 300 cm
3
Dimensions (H x W x D) 301 x 173 x 110
Class MD class 1
DIBT approval number Z-64.1-2
Possible suction systems Wet or dry suction systems
4.3. Type plate
6
1
10
8
2
3
7
9
4
12
13
11
14
5
COMPACT Dynamic Built-in version:
The type plate is located on the right side of module 1 (above the connection of the suction hose).
6
1
10
8
2
3
7
9
4
12
13
11
14
5
101000026
Example picture
1 Device description
2 Connection data
3 Registration number Deutsches Institut für Bautechnik (DIBT)
(German Institute of Construction Technology)
4 Mark of conformity per para. 22 section 4 Lower Saxony Building
Regs
5 Separate collection of electrical/electronic equipment (WEEE)
6 Follow instructions for use
7 Date of manufacture
8 Serial number
9 Manufacturer
10 Item number
11 CE mark
12 Protection class II
13 Name and address of the authorized representative‘s registered
ofceinSwitzerland
14 Medical device
