METREL Earth 2/3 User Manual

MI 2126 Earth 2/3 Instrument description
6
2 Instrument description
2.1 Instrument casing
The instrument is housed in a plastic enclosure, which maintains IP 40 protection class.
The casing consists of a main section, which includes the operator's panel and
connectors.
2.2 Front panel
The front panel consists of a custom LCD and a keyboard, see the figure below.
1
Earth 23 /
MI 2126
TEST
DISP
2
3
4

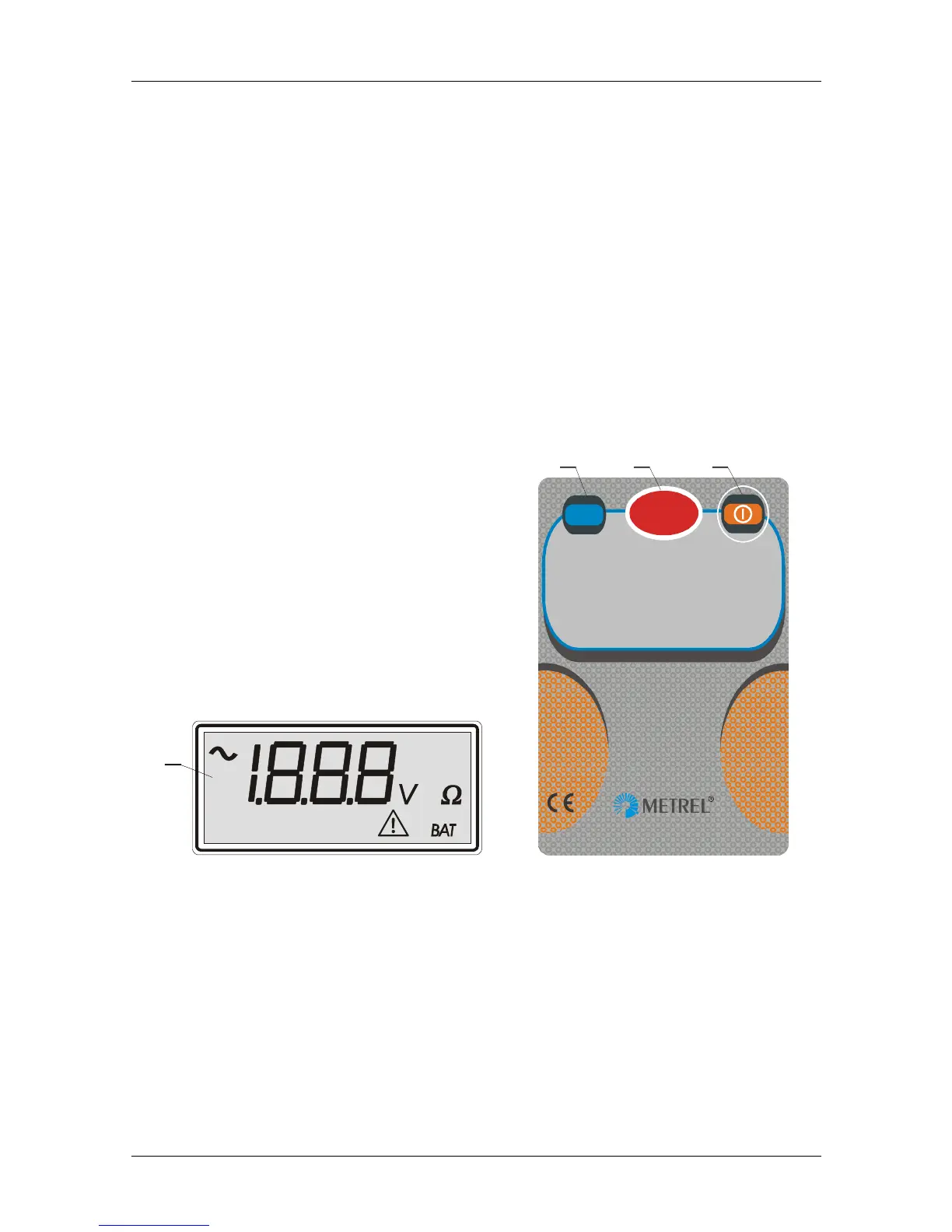

Figure 1. LCD display and front panel
Legend:
1 Custom LCD.
2 DISP key to display subresults.
3 TEST key to start measurement.
4 ON/OFF key to switch ON and OFF the instrument (auto OFF will occur
automatically after 10 minutes of inactivity).
