MI 3102(H) BT EurotestXE Measurements
33
5 Measurements
5.1 Voltage, frequency and phase sequence
Voltage and frequency measurement is always active in the terminal voltage monitor. In the
special VOLTAGE TRMS menu the measured voltage, frequency and information about
detected three-phase connection can be stored. Measurements are based on the EN 61557-7
standard.
See chapter 4.2 Function selection for
instructions on key functionality.

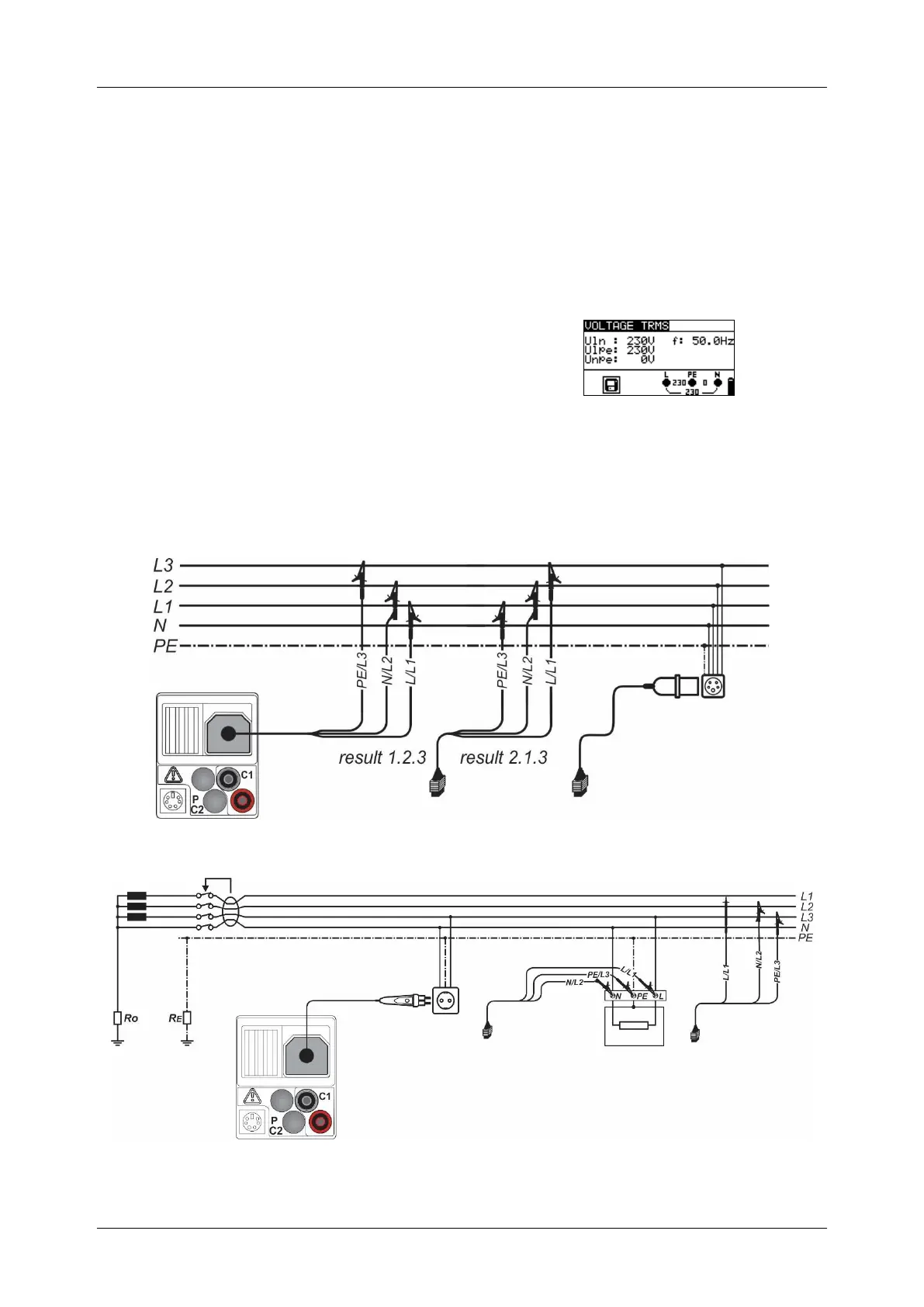

Figure 5.1: Voltage in single phase system
Test parameters for voltage measurement
There are no parameters to be set.
Connections for voltage measurement
Figure 5.2: Connection of 3-wire test lead and optional adapter in three-phase system
Figure 5.3: Connection of plug commander and 3-wire test lead in single-phase system
