MI 3102(H) BT EurotestXE Measurements
57
5.8.1 Standard earthing resistance measurement
Connections for earth resistance measurement

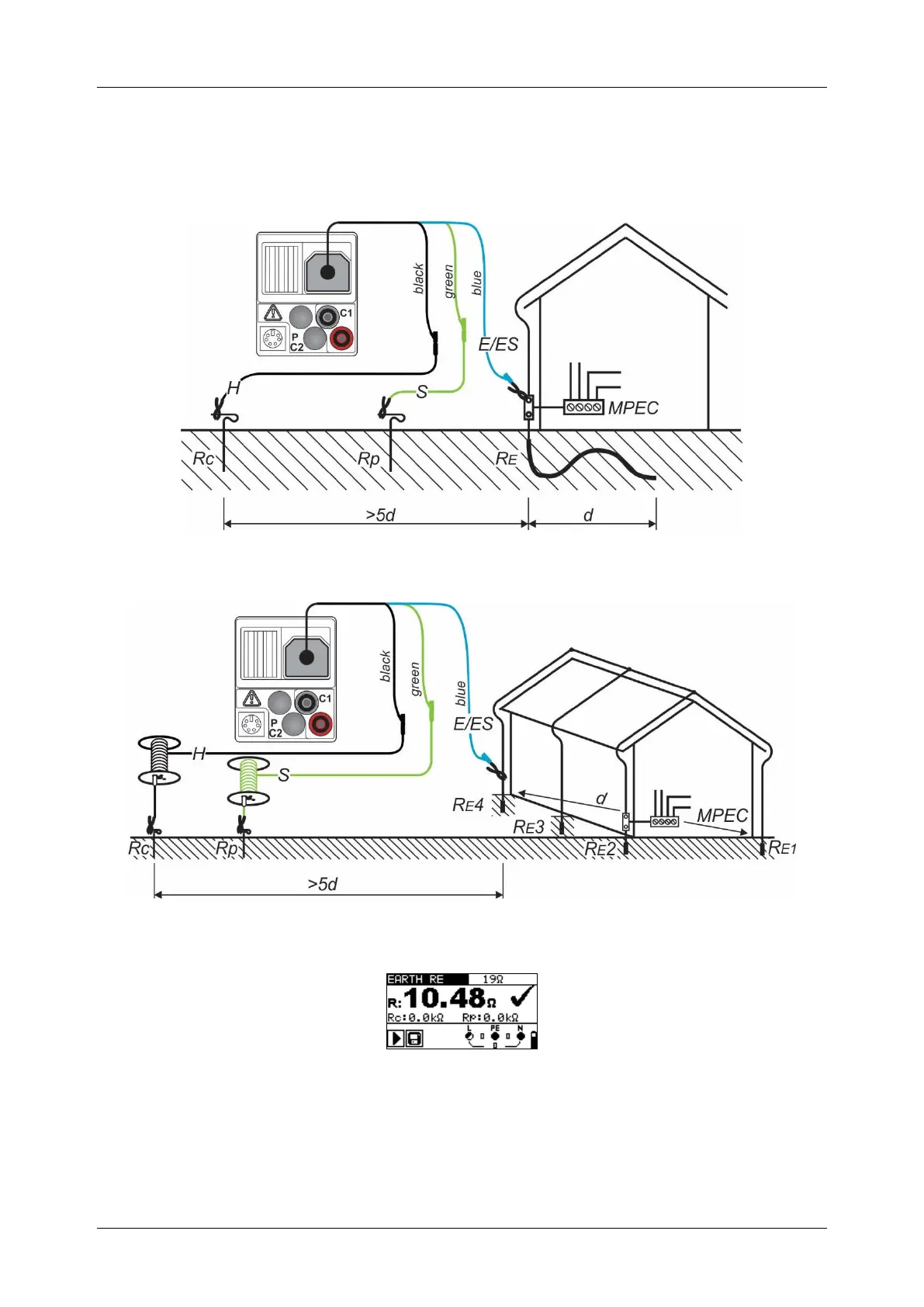

Figure 5.36: Resistance to earth, measurement of main installation earthing
Figure 5.37: Resistance to earth, measurement of a lighting protection system
Figure 5.38: Example of earth resistance measurement result
Displayed results for earth resistance measurement:
R .............. earth resistance
Rp ............ resistance of S (potential) probe
Rc ............ resistance of H (current) probe
