MI 3102(H) BT EurotestXE Measurements
72

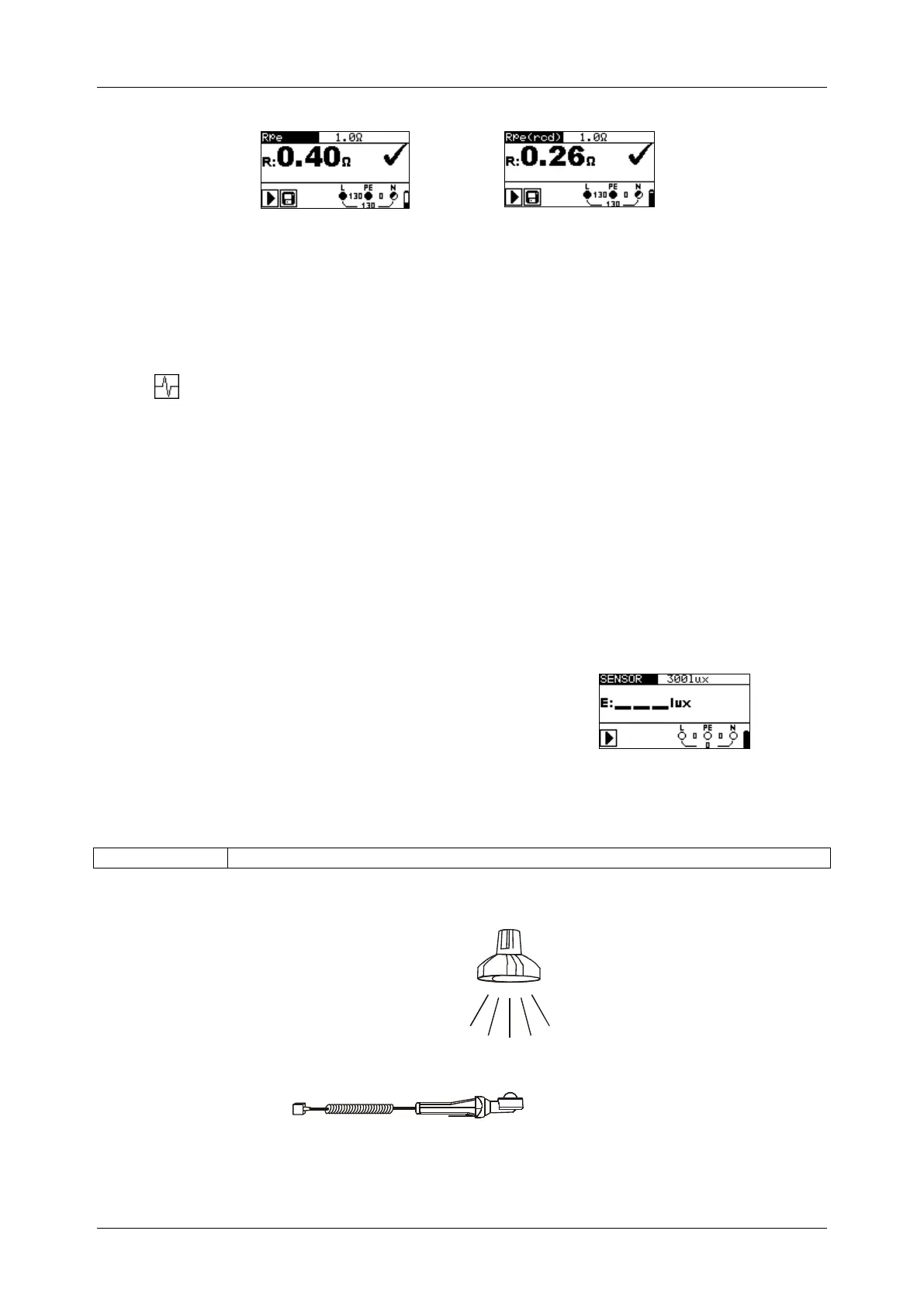

Figure 5.62: Examples of PE conductor resistance measurement result
Displayed results:
R .............. PE conductor resistance
Notes:
High fluctuations of mains voltage can influence the measurement results (the noise sign
is displayed in the message field). In this case it is recommended to repeat few
measurements to check if the readings are stable.
This measurement will trip-out the RCD in RCD-protected electrical installation if test
Rpe is selected.
Select Rpe(rcd) measurement to prevent trip-out of RCD in RCD protected installation.
5.16 Illumination
The illumination measurements should be performed whenever planning or installing indoor or
outdoor lighting.
Illumination measurement can be performed using LUXmeter probe connected to the PS/2
connector of the instrument. The Eurotest instrument supports LUXmeter type B and LUXmeter
type C probes.
See chapter 4.2 Function selection for instructions
on key functionality.
Figure 5.63: Illumination
Test parameters for illumination measurement
Minimum illumination [OFF, 0.1 lux ÷ 20 klux].
Probe positioning for measurement of illumination
Figure 5.64: LUXmeter probe positioning
