MI 3122 Smartec Z Line-Loop / RCD Display organization
15
Instrument is overheated. The measurement is prohibited until the
temperature decreases under the allowed limit.
Result(s) can be stored.
High electrical noise was detected during measurement. Results may be
impaired.
L – N polarity is changed.
Warning! Dangerous voltage on the PE terminal! Stop the activity
immediately and eliminate the fault / connection problem before
proceeding with any activity!
3.4.4 Result field
Measurement result is inside pre-set limits (PASS).
Measurement result is out of pre-set limits (FAIL).
Measurement is aborted. Consider displayed warnings and messages.
3.4.5 Sound warnings
Continuous sound Warning! Dangerous voltage on the PE terminal is detected.
3.4.6 Help screens
HELP
Opens help screen.
The help menus contain some basic schematic / connection diagrams to illustrate
recommended connection of the instrument to the electrical installation and information
about the instrument.
Pressing the HELP key in main function menu generates help screen for selected function.
Keys in help menu:
UP / DOWN
Selects next / previous help screen.
HELP
Scrolls through help screens.
Function selectors / TEST
Exits help menu.

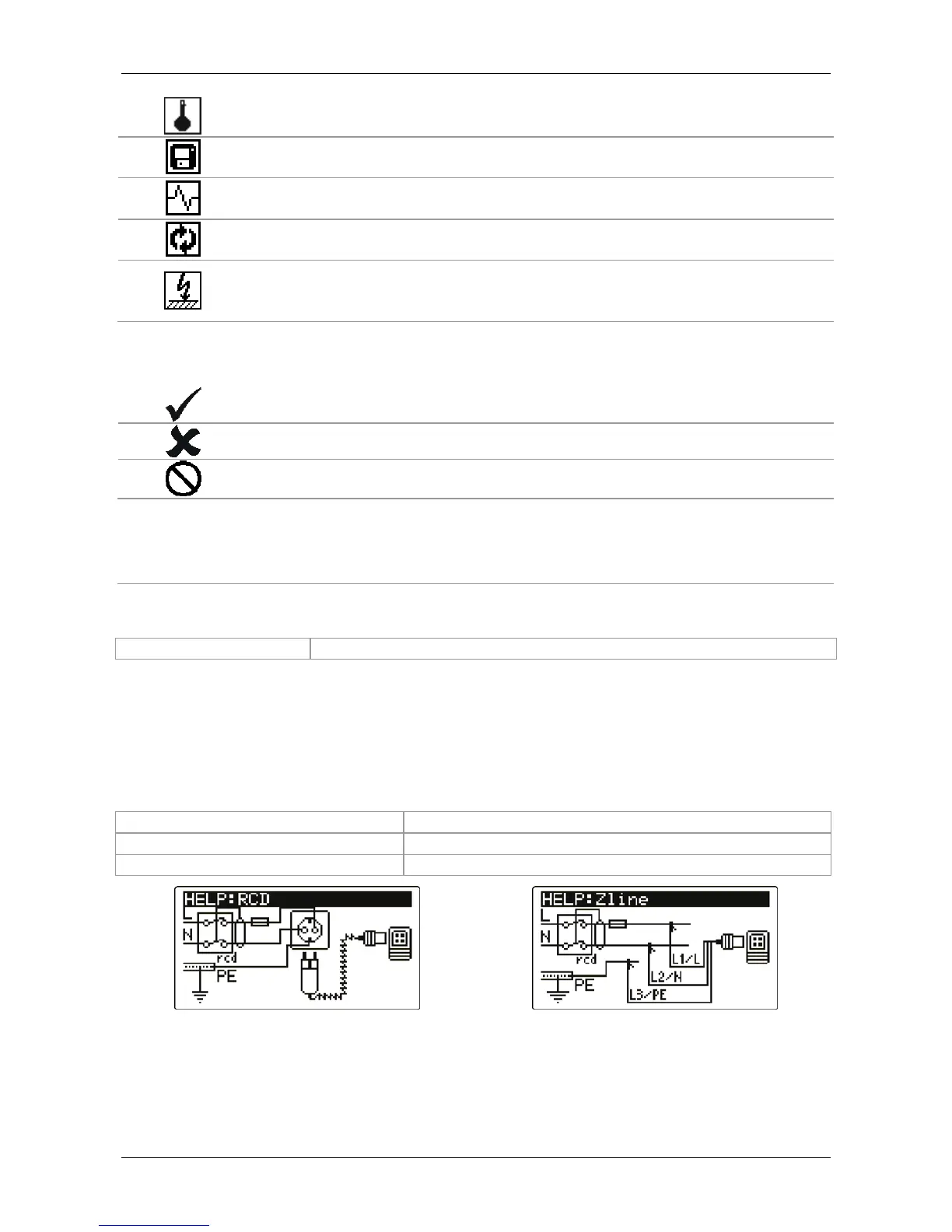

Figure 3.6: Examples of help screens
Note:
Function of the key Help is modified to DISPLAY in RCD-Auto.
