3 Installation
IC equipment: Inline-Ultrafiltration
￭￭￭￭￭￭￭￭
9

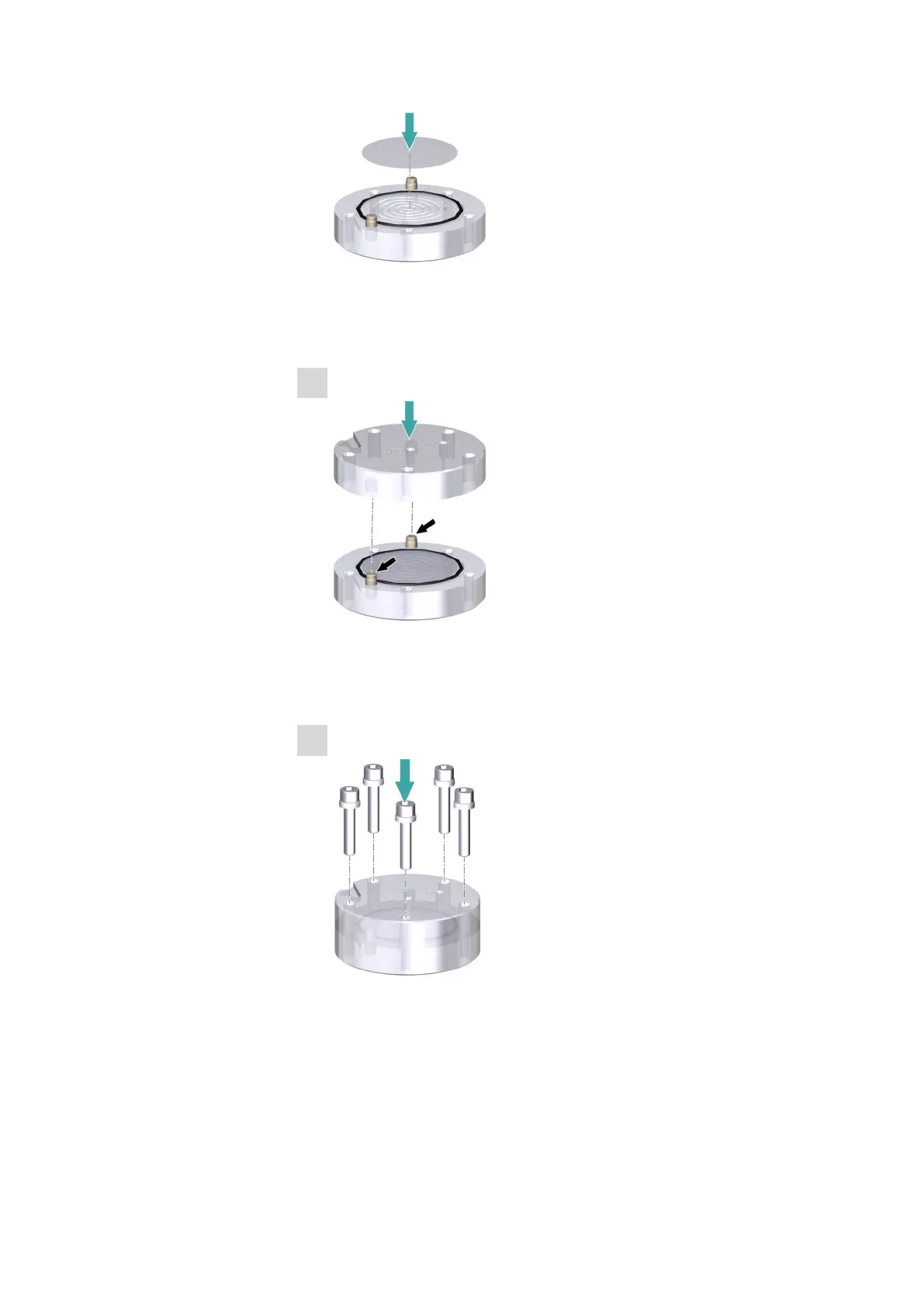

￭ Place the sealing ring back in the recess.
￭ Using the tweezers, place the wet filtration membrane centrally
inside the sealing ring onto the cell.
7
Assembling the ultrafiltration cell
￭ Place the upper chamber of the ultrafiltration cell on the lower
chamber in such a way that the 2 guide bolts exactly fit into the 2
bore holes.
8
Screwing the ultrafiltration cell together
￭ Screw the 5 screws with the washers in the ultrafiltration cell by
hand first.
￭ Then firmly tighten them with the hex key in crosswise sequence.
