5.4 Connecting sensors
￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭￭
20
￭￭￭￭￭￭￭￭
917 Coulometer

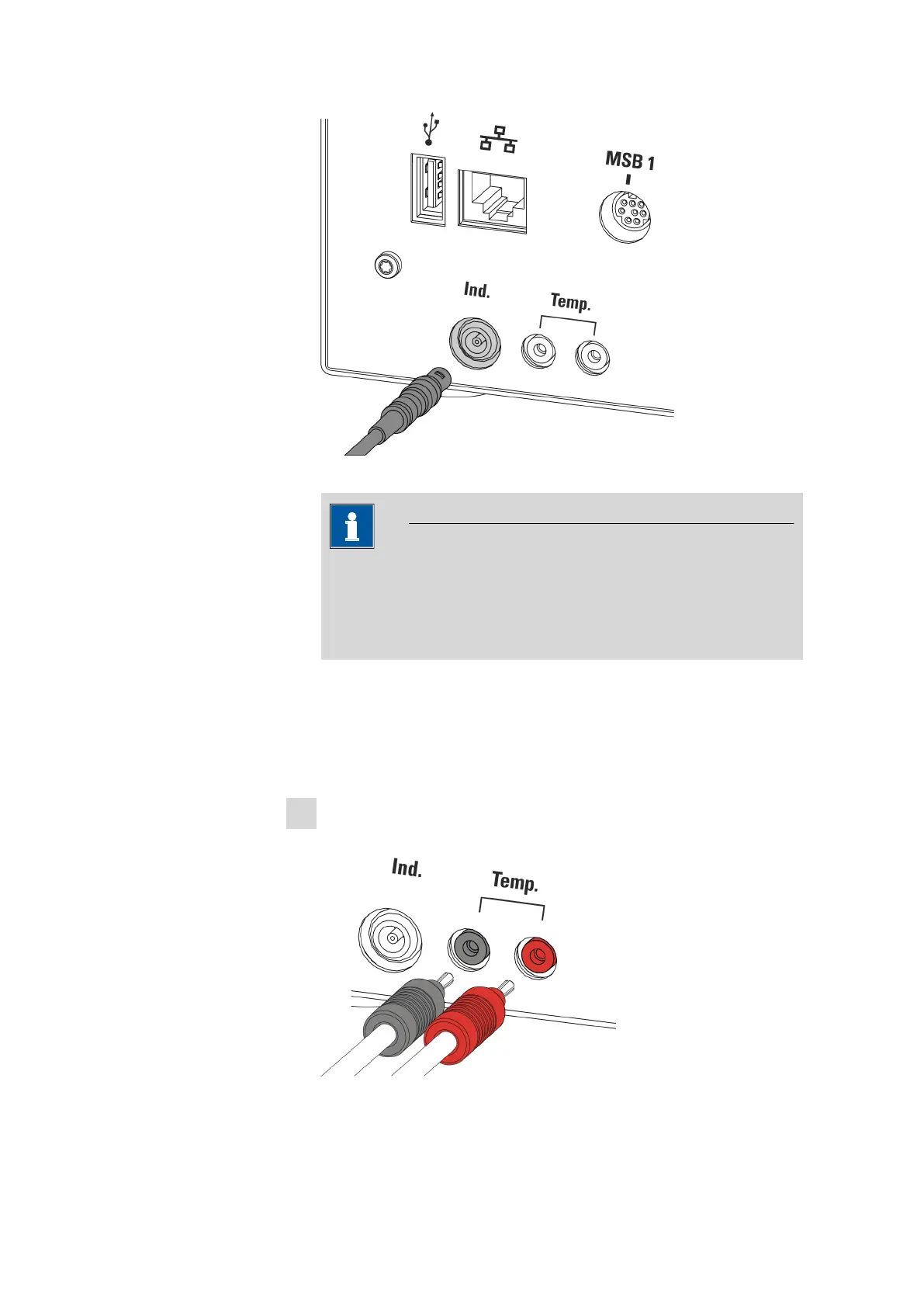

Figure 11 Connecting an indicator electrode
NOTE
The electrode cable is protected against accidental disconnection
of the cable by means of a pull-out protection. If you wish to pull
out the plug again, you first need to pull back the outer plug
sleeve.
5.4.3 Connecting a temperature sensor
A temperature sensor of the Pt1000 or NTC type can be connected to the
Temp. connector.
Connect the temperature sensor as follows:
1
Insert the plugs of the temperature sensor into the Temp. sockets of
the coulometer.
