CAL OPERATING INSTRUCTIONS
35

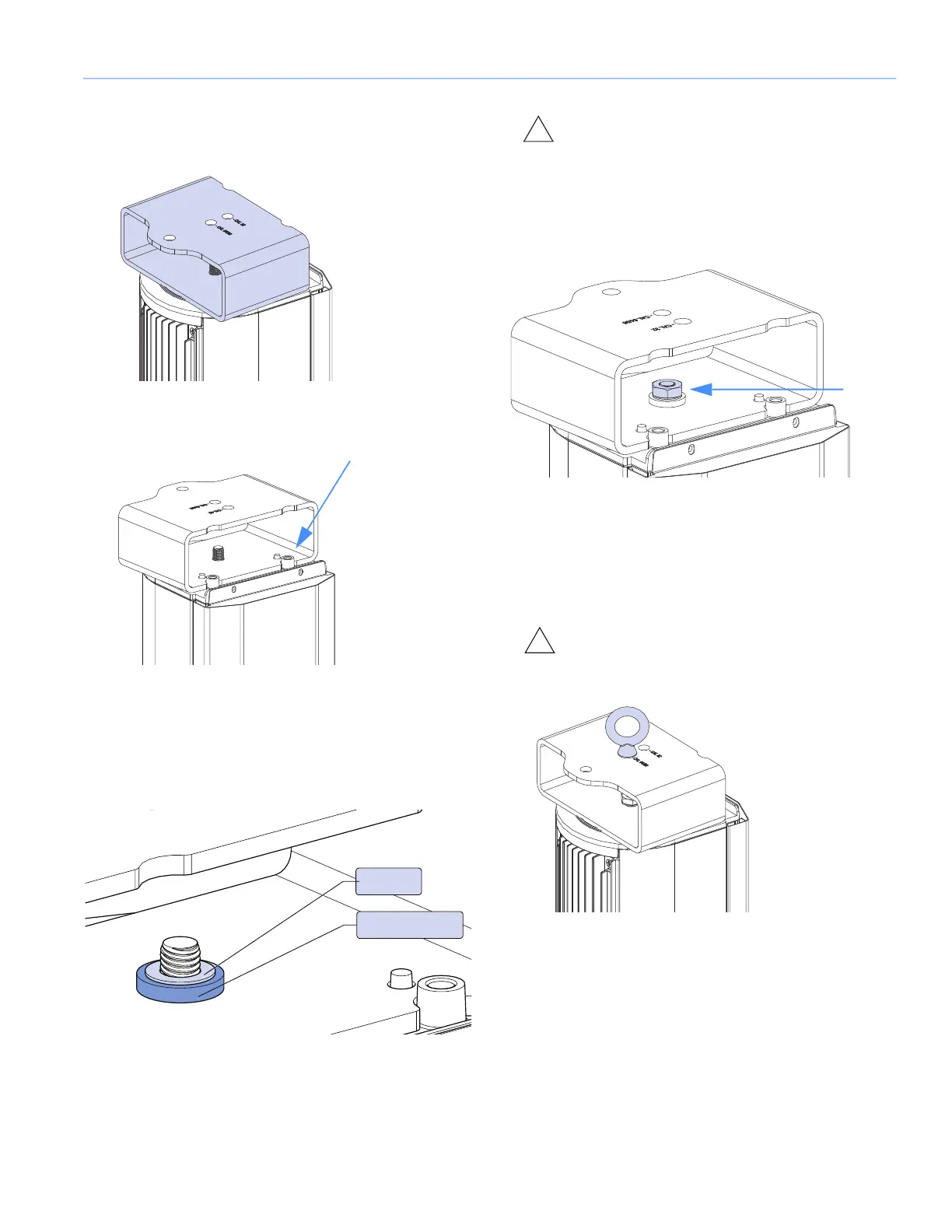

3. Slide the single point bracket onto the exposed threaded
stud.
4. The front should align with the two protrusions.
5. Slide over the exposed threads in the order indicated:
a. rubber gasket (PN 67.210.094.01),
b. metal washer (PN 113.043).
CAUTION: Insert the plastic bushing sleeve
removed in step 1 back into place (an extra
bushing (PN 119.060) is provided in the kit).
6. Reattach the nut removed in Step 2 (PN 109.051). Meyer
Sound recommends applying the included Loctite and
using a torque value of 30 ft-lb (40.5 N·m).
7. Install the eye bolt into the correct hole for the speaker
being used. Use the washer (PN 113.043) and the nut
(PN 109.053) supplied. Meyer Sound recommends
applying Loctite and using a torque value of 30 ft-lb
(40.5 N·m).
CAUTION: There is one hole for the CAL 32
and the other is for CAL 64 or CAL 96.
