T6
PROGRAM
DOWN
Access to program settings accessing in reverse
order.
Time of day/ time
switches/
operational settings.
-
T7 PROGRAM UP
Access to program settings accessing in sequential
order.
- -
T8
PROGRAM +
PLUS
Alteration of program settings positively. - -
T9
PROGRAM –
MINUS
Alteration of program settings negatively. - -
T10 INFORMATION
Access to operational information and saving
altered program settings.
Fault Indication/
Boiler Flow
Temperature/
Stored HWS/
Operation Mode/
Outside Air
Temperature
.
-

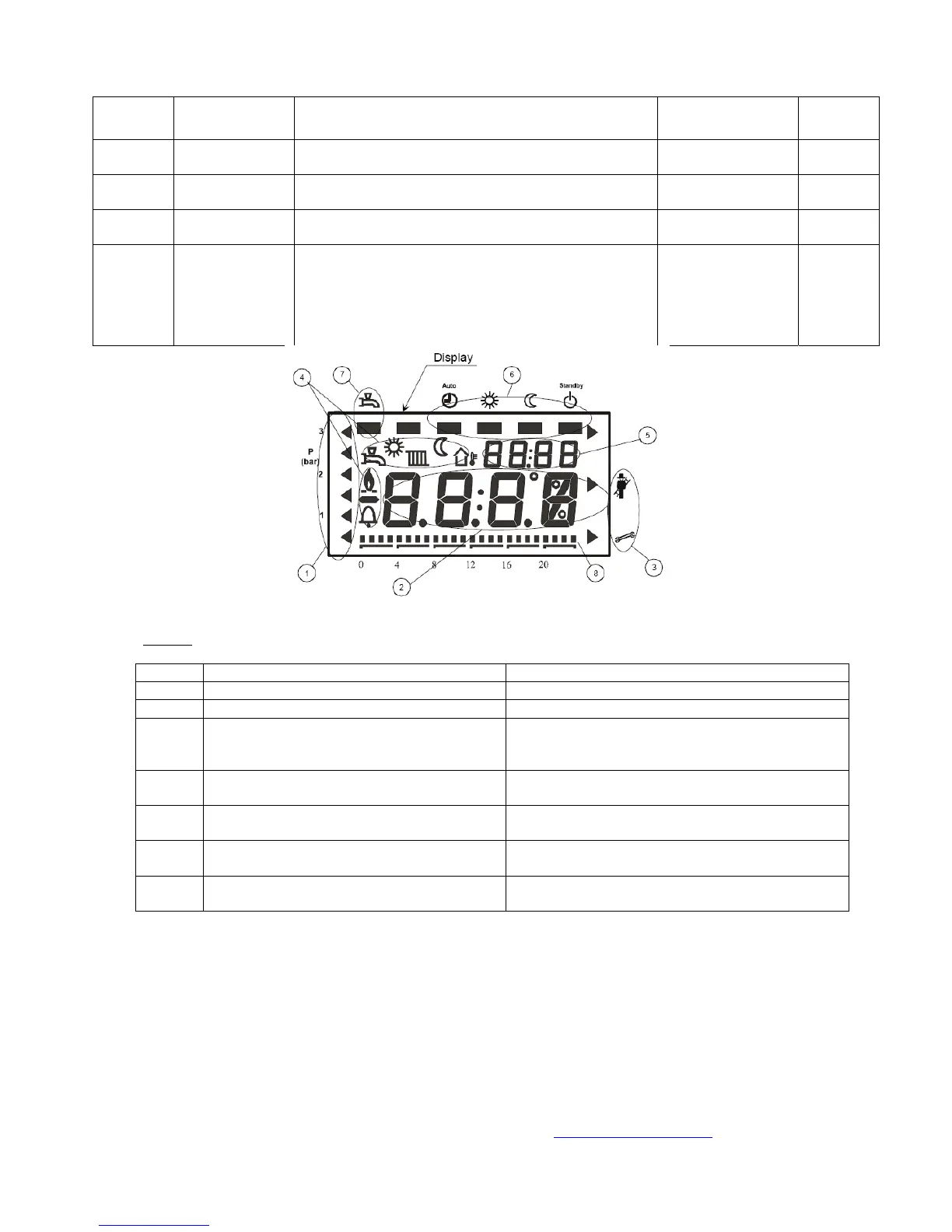

Legend
Button Label Function
1 WATER PRESSURE INDICATOR Not used In ProCon Ranges
2 MAIN DISPLAY Flow Temperature or Selected Parameter Setting
3 COMMISSIONING MODE
Commissioning Mode Indicator Full Power (no
adjustment.)/Engineers Mode (full adjustment
via Program Up & Down Buttons.)
4 SPECIFIC OPERATIONAL MODE INDICATOR
The Display Reflects the Operational Mode
Dependent Upon Inputs.
5 TIME OF DAY / AUTO RESETTING ERROR
Time of Day Alternating with Automatic
Resetting Error Codes.
6 HEATING CIRCUIT MODE INDICATOR
Indicator of Selected Heating Circuit Operating
Mode.
7 HOT WATER ACTIVATION INDICATOR
Indication of Activation of Hot Water Production
Mode.
To Next Page
