Trike Coaster Brake & 3-Speed Coaster Brake Conversion Instructions
Helpful Hint:
The trike CB & 3-spd. C.B. hub units are adjusted &
aligned the same way as you would a CB wheel on
an ordinary bike.
Step 1-A)
Prepare CB hub unit by attaching sprocket with concave side facing
outward from hub. Concave sprocket faces in for the 3-spd. C.B.
Step 2-A)
Slide spacing washers on to axle on brake arm side of CB unit. No
washers are used on 3-spd. C.B. hub unit.
Note: When installing a coaster brake or 3-spd. coaster brake, you must substitute the
fixed sprocket for the free wheel.

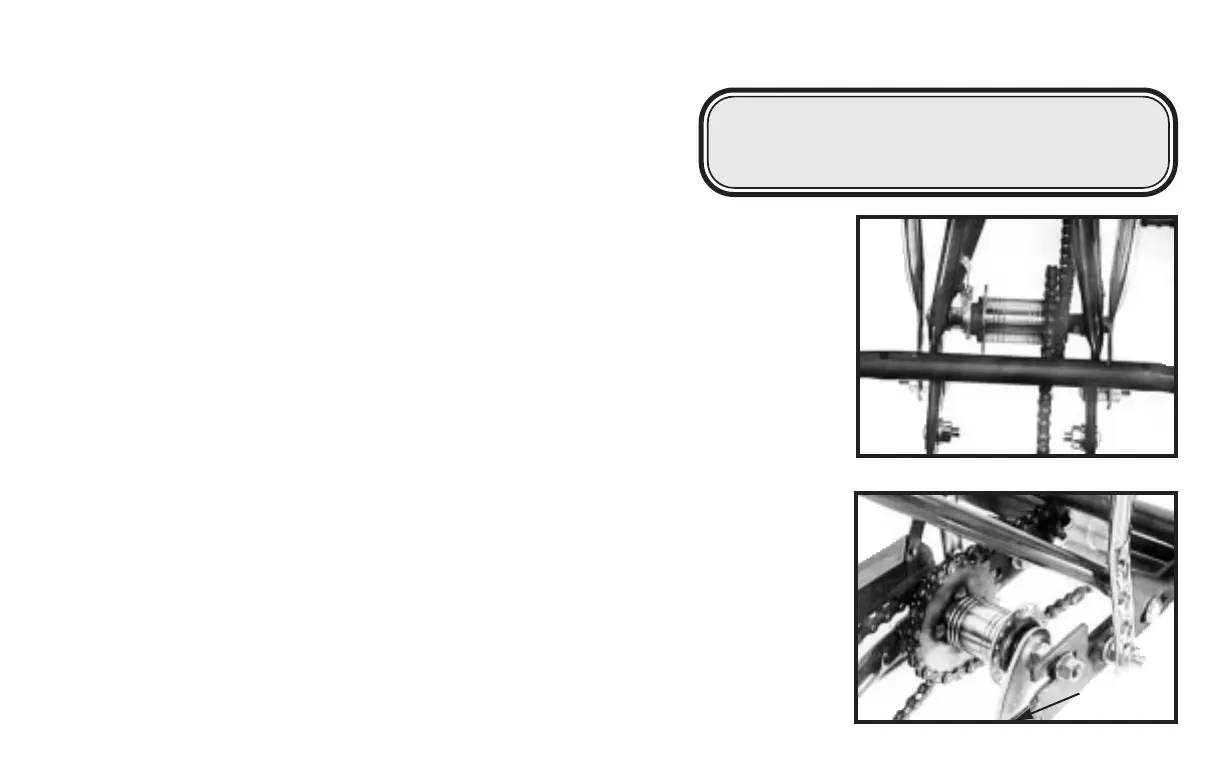

(Fig. 21)
Step 3-A)
Place CB or 3-spd. C.B. hub unit into special frame conversion slot brackets located on top of
rear bottom frame stays, attach nuts. (Fig.22)
Step 7-A)
Attach fixed sprocket onto rear trike axle. See Fig. 4B (pg. 9) and step 8 (pg. 11)
You are now ready to attach the rear unit to the trike.
Step 4-A)
Attach chain (84 Links) to chainwheel and outer CB or 3-spd. C.B. sprocket and connect
connecting link.
Step 5-A)
Pull hub towards rear to remove slack in chain, align unit at a right angle to frame, lightly
tighten nuts.
Step 6-A)
Turn chainwheel and note. Chain condition, chain must run smoothly with no binding or exces-
sive noise. If not, loosen nuts and re-adjust unit. If O.K., tighten nuts securely and attach
brake strap to bottom left stay.
TOWARD
FRONT
(Fig. 22)
