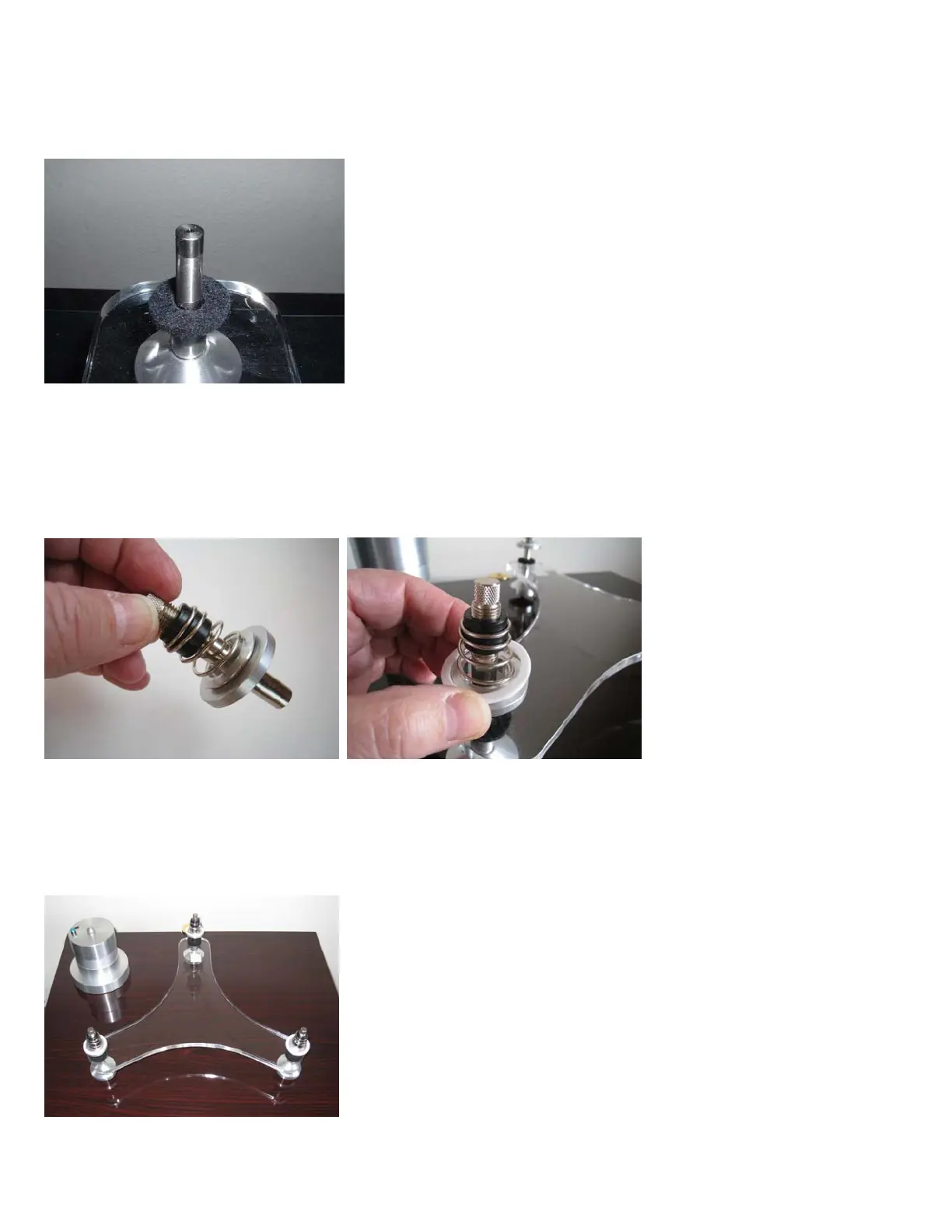

2. Put the three felt rings over the spring support spindles. These rings serve to protect the acrylic base each time the clamp
is used.
3. Screw the spring assemblies onto the threaded spring support sleeves until all the threads are fully showing above the
black Delrin bushing. Then locate the three hollow spring support towers onto the three support spindles on top of the acrylic
spider. Drop the white Teflon rings on top of each spring base. NOTE: When handling the support towers, make sure not
to lose the thrust ball that sits inside the sleeve of each tower.
4. Position the motor to the top left of the spider as shown below. The cable fixing pad attached to the underside of one of the
spider legs should face rearward. Using a precision bubble level placed on top of the spider in its center, adjust the conical
turntable feet beginning with the corner that is lowest until the spider is level.
