SPEED CONTROL KNOB SETTING
MATERIAL/THICKNESS 80 Tooth 24 Tooth Carbide 168 Tooth
Standard Blade Tip Blade Jeweler's Blade
Hardwood & Softwood up to 1/4" 4-6 4-6 –
Balsa & Basswood up to 1" 4-6 4-6 –
Hardwood over 1/4" – 4-6 –
Plastic over 1/16" – 1-3 –
Plastic under 1/16" – 1-3 1-3
Plywood up to 3/4" – 4-6 –
Soft Brass 1/16"-1/8"
*
– 1-3 1-3
Soft Brass under 1/16"
*
– – 1-3
Brass Tubing
*
– – 1-3
Aluminum over 1/16"
*
– 1-3 –
*
NOTE: All metals over 1/32" should be cross cut only (up to 1" width). To rip very thin brass, sand-
wich the brass between 2 pieces of 3/32" basswood. Hold brass to basswood with tape or spots of
cyanoacrylate glue. Then cut with 168 tooth Jeweler's Blade. FEED ALL METAL SLOWLY.

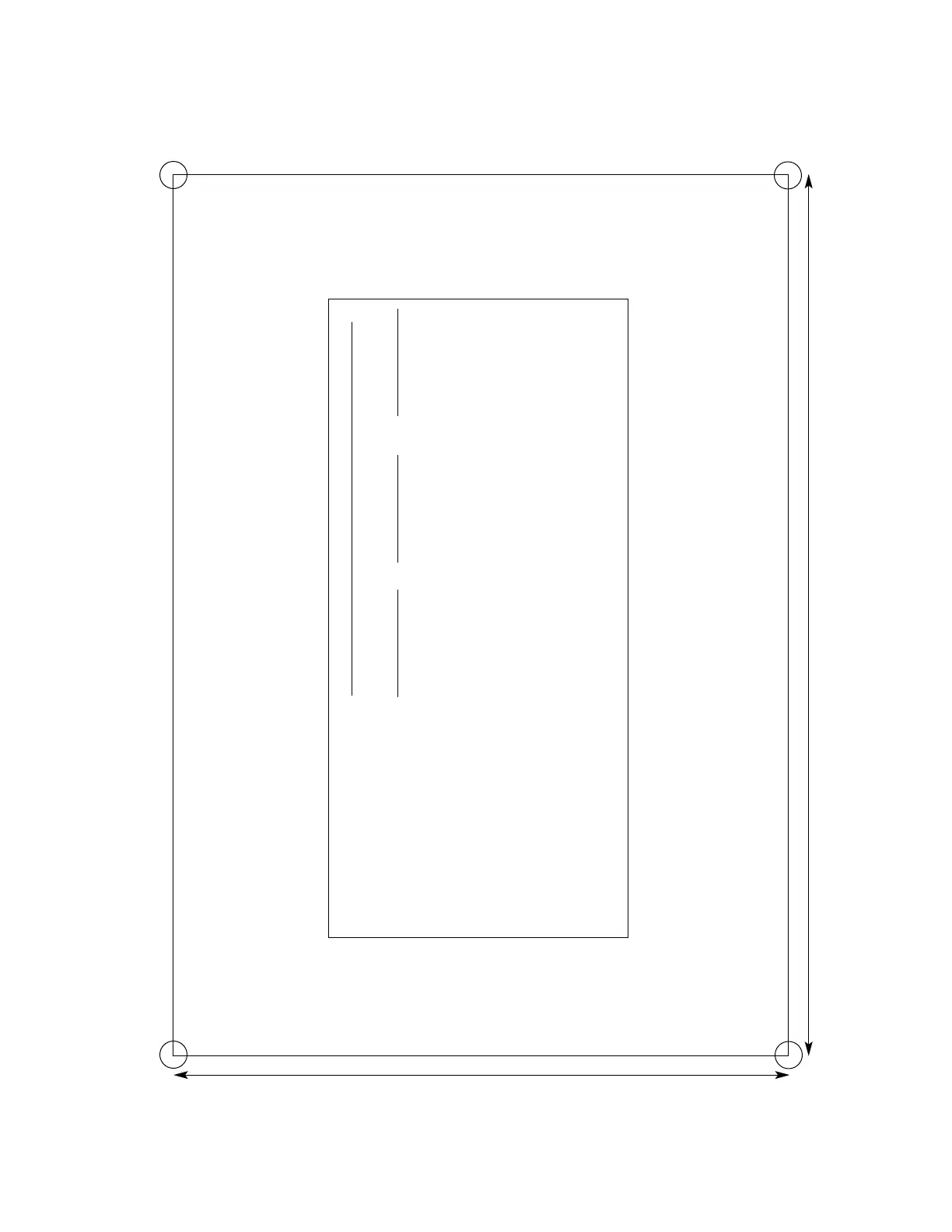

TEMPLATE FOR LOCATING & DRILLING MOUNTING HOLES
Due to the possibility of shrinkage in the printing process,
actual measurements are indicated for spacing between centers of holes.
5-1/2"
7-7/8"
