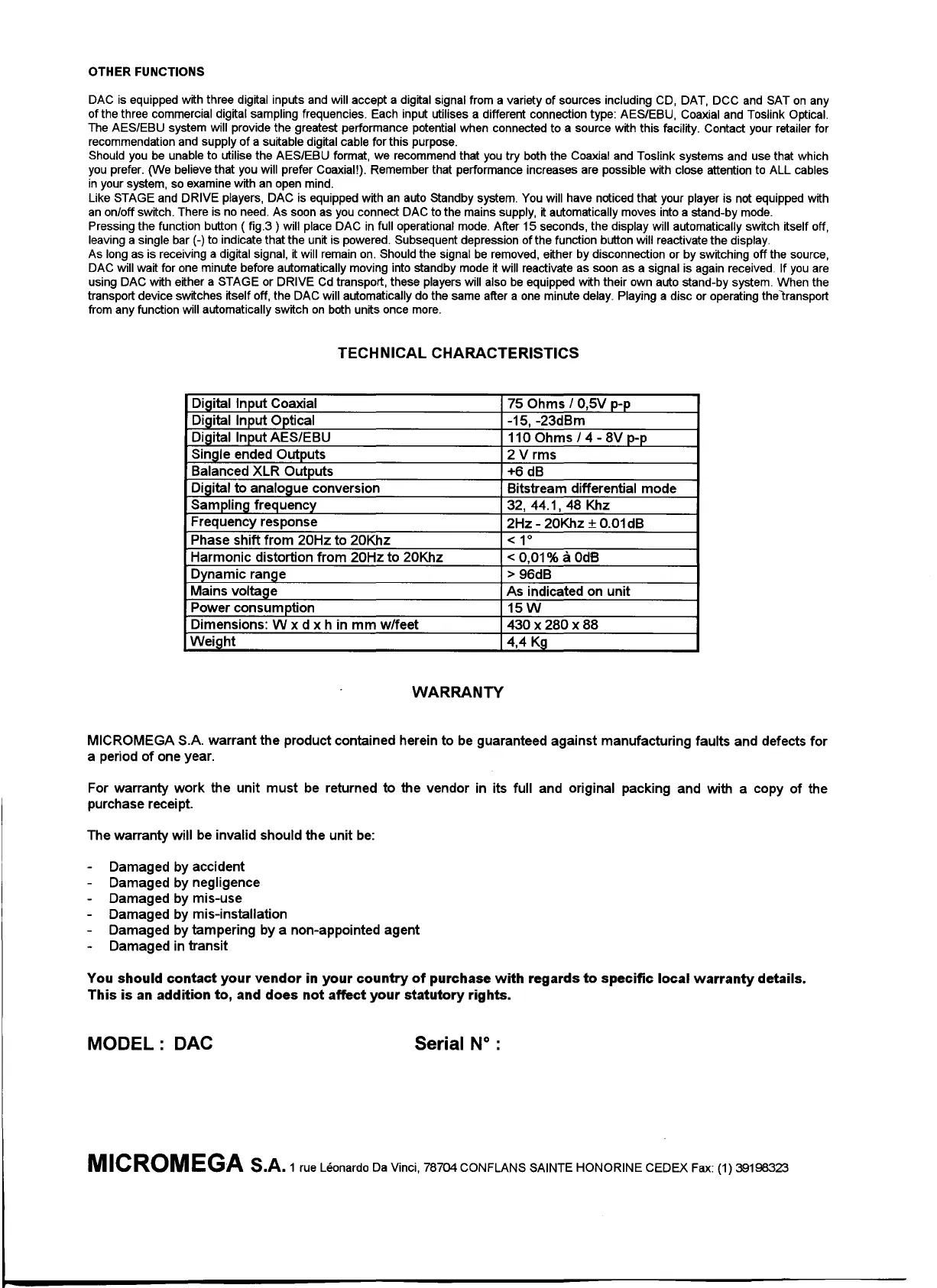

OTHER FUNCTIONS
DAC is equipped with three digital inputs and will accept a digital signal from a variety of sources including CD, DAT, DCC and SAT on any
of the three commercial digital sampling frequencies. Each input utilises a different connection type: AES/EBU, Coaxial and Toslink Optical.
The AES/EBU system will provide the greatest performance potential when connected to a source with this facility. Contact your retailer for
recommendation and supply of a suitable digital cable for this purpose.
Should you be unable to utilise the AES/EBU format, we recommend that you try both the Coaxial and Toslink systems and use that which
you prefer. (We believe that you will prefer Coaxial!). Remember that performance increases are possible with close attention to ALL cables
in your system, so examine with an open mind.
Like STAGE and DRIVE players, DAC is equipped with an auto Standby system. You will have noticed that your player is not equipped with
an on/off switch. There is no need. As soon as you connect DAC to the mains supply, it automatically moves into a stand-by mode.
Pressing the function button (fig.3) will place DAC in full operational mode. After 15 seconds, the display will automatically switch itself off,
leaving a single bar (-) to indicate that the unit is powered. Subsequent depression of the function button will reactivate the display.
As long as is receiving a digital signal, it will remain on. Should the signal be removed, either by disconnection or by switching off the source,
DAC will wait for one minute before automatically moving into standby mode it will reactivate as soon as a signal is again received. If you are
using DAC with either a STAGE or DRIVE Cd transport, these players will also be equipped with their own auto stand-by system. When the
transport device switches itself off, the DAC will automatically do the same after a one minute delay. Playing a disc or operating the transport
from any function will automatically switch on both units once more.
TECHNICAL CHARACTERISTICS
WARRANTY
75 Ohms / 0,5V n-
5,5, 3d3dBm
110 Ohms /4 - 8V n-
2 V rms
+6 dB
Bitstream differential mode
32,44.1,48 Khz
2Hz - 20Khz :t 0.01 dB
< 10
< 0,01% aOdB
> 96dB
As indicated on unit
15W
430 x 280 x 88
4,4 K~
MICROMEGA S.A. warrant the product contained herein to be guaranteed against manufacturing faults and defects for
a period of one year.
For warranty work the unit must be returned to the vendor in its full and original packing and with a copy of the
purchase receipt.
The warranty will be invalid should the unit be:
Damaged by accident
Damaged by negligence
Damaged by mis-use
Damaged by mis-installation
Damaged by tampering by a non-appointed agent
Damaged in transit
You should contact your vendor in your country of purchase with regards to specific local warranty details.
This is an addition to, and does not affect your statutory rights.
MODEL: DAC Serial N° :
MICROMEGA S.A.1 rue Leonardo Da Vinci, 78704CONFLANS SAINTE HONORINE CEDEX Fax: (1) 39198323
