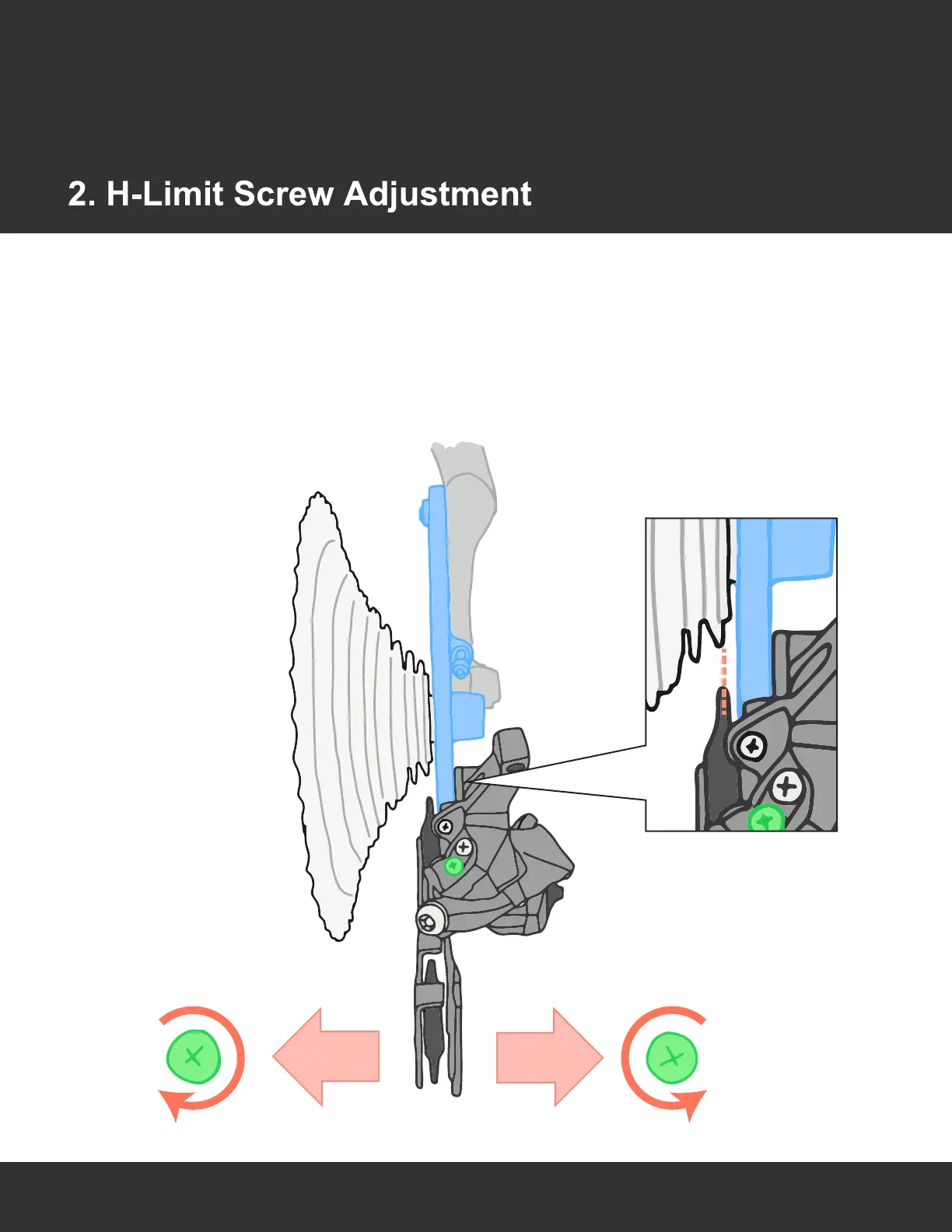

Using a screwdriver, adjust the high-limit screw until the guide pulley
aligns with the outer edge of the smallest cog.
5
