This document provides assembly instructions and usage guidelines for the Micuna Tipo D LF 2012 colecho, model 5028951, a co-sleeping cot designed for infants. The manual emphasizes safety, proper assembly, and maintenance to ensure the well-being of the child.

Function Description:

The Micuna Tipo D LF 2012 colecho is a co-sleeping cot, meaning it is designed to be placed next to an adult's bed, allowing the baby to sleep close to their parents while still in their own safe sleeping space. The cot features an adjustable cot-base height, with the lowest position being the safest once the baby can sit up. It also includes a movable side that can be fixed in the highest position, crucial for safety when the baby is left unattended. The cot is intended for use until the child is able to climb out of it, at which point it should no longer be used for that child to prevent falls and injuries. The locking mechanisms are a critical safety feature and must be fully engaged and checked before each use.

Important Technical Specifications:

Model: Tipo D LF 2012 colecho, 5028951.
Assembly Time: Approximately 30 minutes, as indicated by the pictogram on page 2.
Mattress Dimensions (Minimum): The mattress should be at least 117 cm long and 57 cm wide.
Mattress Gap: The gap between the mattress, sides, and ends of the cot must not exceed 30 mm.
Internal Height (Mattress Surface to Cot Frame Top):
- At least 500 mm when the cot base is in the lowest position.
- At least 200 mm when the cot base is in the highest position.
Maximum Height for Co-sleeping: The manual includes a "MAX 10 CM" indicator on page 1, likely referring to the maximum height difference between the adult bed and the cot mattress for safe co-sleeping.

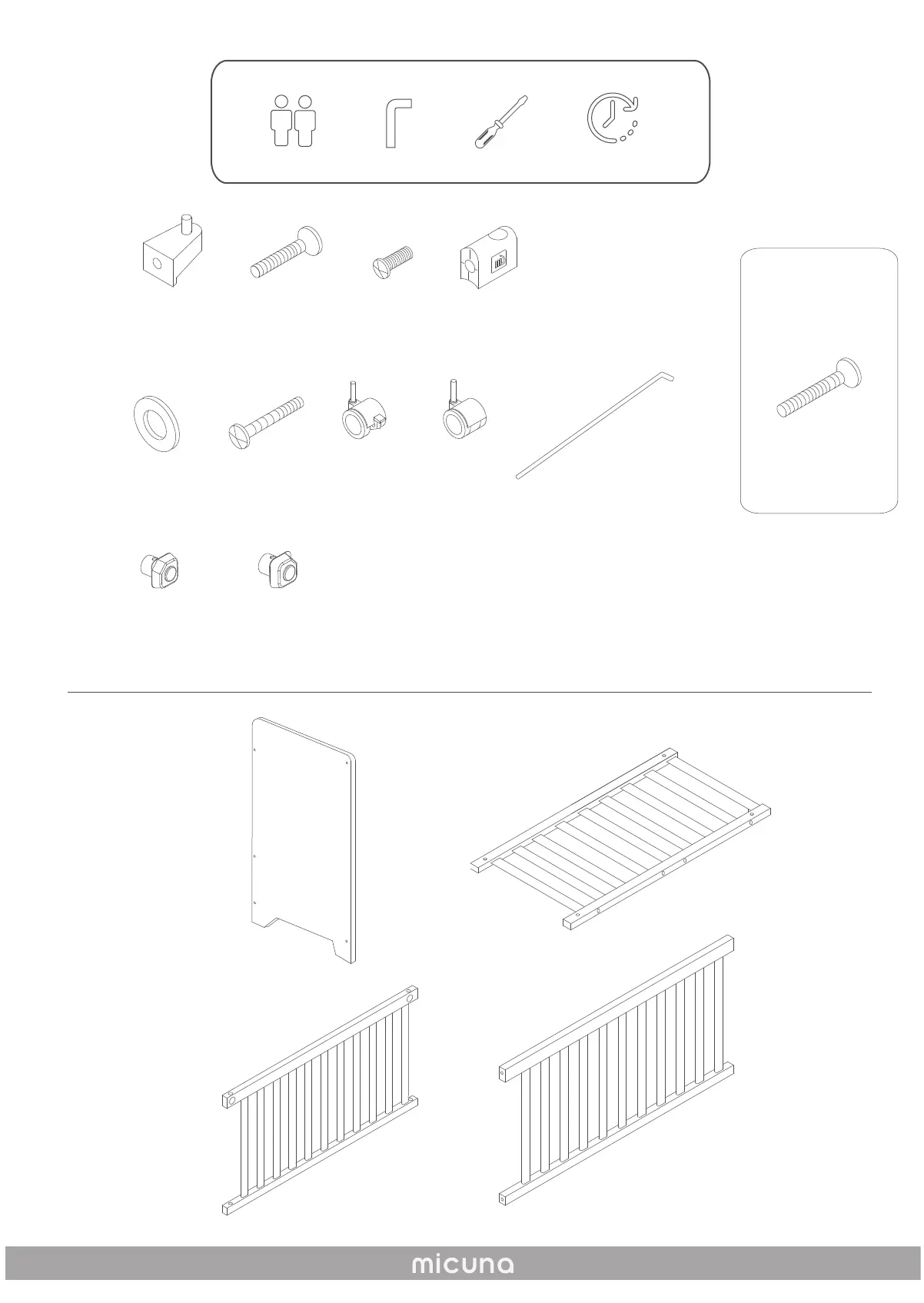

Components: The cot is assembled using various screws (M5x35, 3/16*27), nuts, and specialized connectors, as detailed in the parts list on page 2. Specific parts include C02953 (AX2), C07893 (BX4), C10638 (CX4), C06757 (DX2), C00137 (FX2), C00153 (GX4), C14222 (KX1), C14223 (LX1), C010242 (JX2), and C07555 (X4).

Usage Features:

Adjustable Cot-Base: The cot-base height is adjustable, with the lowest position being the safest for babies who can sit up. This feature allows the cot to adapt to the child's developmental stages.
Movable Side: The cot is equipped with a movable side that must be fixed in the highest position and locked when the baby is left alone in the cot. This prevents the child from falling out.
Co-sleeping Functionality: The design allows the cot to be placed adjacent to an adult bed, facilitating co-sleeping. The "ATTENTION!!" and "BLOCK" indicators on page 5, along with the "POSITION" diagram, suggest specific configurations for safe co-sleeping, likely involving securing the cot to the adult bed and adjusting the side.
Safety Mechanisms: The cot is only ready for use when all locking mechanisms are engaged. These mechanisms should be carefully checked before each use to ensure they are fully secured.
Single Mattress Use: Only one mattress should be used in the cot to maintain the specified internal height and prevent safety hazards.
Warning Against Obstructions: No objects should be left in the cot or placed near it that could provide a foothold for the child or pose a risk of suffocation or strangulation (e.g., strings, blind/curtain cords, necklaces, pacifier chains).
Heat Source Awareness: The cot should not be placed near open fires or other strong heat sources, such as electric heaters or gas fires, due to the risk of fire.
Discontinuation of Use: The cot should no longer be used for a child once they are able to climb out of it, to prevent falls and injuries.

Maintenance Features:

Cleaning: The cot should be cleaned using a soft, damp cloth.
Regular Checks: All assembly devices must be conveniently adjusted and checked regularly. Screws should not be loose, as this could cause injury to the child or allow them to get caught on clothing or accessories, posing a strangulation risk. If necessary, readjustments should be made.
Replacement Parts: In case any component is broken, torn, or missing, only spare parts approved by the manufacturer should be used. This ensures the continued safety and structural integrity of the cot.
Full Assembly Before Tightening: Screws should not be fully tightened until the cot is completely assembled. This allows for proper alignment of all components during the assembly process.

MICUNA 5028951 - Page 2
